背景
某一天，测试部大哥从当前最新的软件版本降级到一个月前的版本，然后启动就出现崩溃了。
异常如下：
java.lang.IllegalStateException: A migration from 4 to 3 was required but not found. Please provide the necessary Migration path via RoomDatabase.Builder.addMigration(Migration ...) or allow for destructive migrations via one of the RoomDatabase.Builder.fallbackToDestructiveMigration* methods. at androidx.room.RoomOpenHelper.onUpgrade(RoomOpenHelper.java:117) at androidx.room.RoomOpenHelper.onDowngrade(RoomOpenHelper.java:129) at androidx.sqlite.db.framework.FrameworkSQLiteOpenHelper$OpenHelper.onDowngrade(FrameworkSQLiteOpenHelper.java:135) at android.database.sqlite.SQLiteOpenHelper.getDatabaseLocked(SQLiteOpenHelper.java:254) at android.database.sqlite.SQLiteOpenHelper.getWritableDatabase(SQLiteOpenHelper.java:163) at androidx.sqlite.db.framework.FrameworkSQLiteOpenHelper$OpenHelper.getWritableSupportDatabase(FrameworkSQLiteOpenHelper.java:92) at androidx.sqlite.db.framework.FrameworkSQLiteOpenHelper.getWritableDatabase(FrameworkSQLiteOpenHelper.java:53) at androidx.room.RoomDatabase.inTransaction(RoomDatabase.java:476) at androidx.room.RoomDatabase.assertNotSuspendingTransaction(RoomDatabase.java:281)
等等？你跟我说降级？现在有哪个App支持降级的吗？别着急，有句话说的好，只要思想不滑坡，方法总比困难多，降级的肯定是可以降级的，不过这不是重点，今天主要分享下数据库降级导致的问题如何使用ASM修改字节码的方式来解决。
乍一看，这不是很简单吗，添加对应的降级Migration或者配置fallbackToDestructiveMigration方法进行破坏性重建数据库即可。
再看下RoomOpenHelper对应的源码：
@Override
public void onUpgrade(SupportSQLiteDatabase db, int oldVersion, int newVersion) {
boolean migrated = false;
if (mConfiguration != null) {
List<Migration> migrations = mConfiguration.migrationContainer.findMigrationPath(
oldVersion, newVersion);
if (migrations != null) {
mDelegate.onPreMigrate(db);
for (Migration migration : migrations) {
migration.migrate(db);
}
ValidationResult result = mDelegate.onValidateSchema(db);
if (!result.isValid) {
throw new IllegalStateException("Migration didn't properly handle: "
+ result.expectedFoundMsg);
}
mDelegate.onPostMigrate(db);
updateIdentity(db);
migrated = true;
}
}
if (!migrated) {
if (mConfiguration != null
&& !mConfiguration.isMigrationRequired(oldVersion, newVersion)) {
mDelegate.dropAllTables(db);
mDelegate.createAllTables(db);
} else {
throw new IllegalStateException("A migration from " + oldVersion + " to "
+ newVersion + " was required but not found. Please provide the "
+ "necessary Migration path via "
+ "RoomDatabase.Builder.addMigration(Migration ...) or allow for "
+ "destructive migrations via one of the "
+ "RoomDatabase.Builder.fallbackToDestructiveMigration* methods.");
}
}
}
没错了，既然是没添加对应Migration，那加上不就完了吗？说的好的，确实如此，不过要是这样就结束了，还怎么秀操作？而且为啥不用fallbackToDestructiveMigration？不能用的原因很简单，领导说了，不管是数据库降级还是还是升级，数据都必须要保留。fallbackToDestructiveMigration的操作就是删表重建，这样是不满足要求的。
开干，一顿操作猛如虎，三下五除二就把降级Migration的加上了。
private fun buildDatabase(context: Context): TestDataBase {
return Room.databaseBuilder(context, TestDataBase::class.java, "test.db")
.addMigrations(MIGRATION_1_2
.addMigrations(MIGRATION_2_1)
.addCallback(object : RoomDatabase.Callback() {
override fun onCreate(db: SupportSQLiteDatabase) {
super.onCreate(db)
Log.i(TAG, "onCreate")
}
override fun onOpen(db: SupportSQLiteDatabase) {
super.onOpen(db)
Log.i(TAG, "onOpen")
}
})
.build()
}
/**
* 版本升级1->2
*/
private val MIGRATION_1_2 = object : Migration(1, 2) {
override fun migrate(database: SupportSQLiteDatabase) {
database.execSQL("ALTER TABLE Test ADD COLUMN updatetime TEXT")
}
}
/**
* 版本升级2->1空实现，防止降级崩溃
*/
private val MIGRATION_2_1 = object : Migration(2, 1) {
override fun migrate(database: SupportSQLiteDatabase) {
Log.i(TAG, "migrate: MIGRATION_2_1 do nothing")
}
}
重新打包给到测试，嘿，没问题，禅道马上关闭bug。心里美滋滋，把这个问题反馈给领导，让其它项目都修改下这个问题。但是项目这么多，涉及到Room数据库的都要手动改一遍，岂不是很麻烦？有没有更优雅的方式，最好是其它项目都不用动，躺着就把问题解决了。
好家伙，提高难度了，看来要秀出看家本领才行。
再回头看下RoomOpenHelper的源码：
@Override
public void onUpgrade(SupportSQLiteDatabase db, int oldVersion, int newVersion) {
boolean migrated = false;
if (mConfiguration != null) {
List<Migration> migrations = mConfiguration.migrationContainer.findMigrationPath(
oldVersion, newVersion);
if (migrations != null) {
mDelegate.onPreMigrate(db);
for (Migration migration : migrations) {
migration.migrate(db);
}
ValidationResult result = mDelegate.onValidateSchema(db);
if (!result.isValid) {
throw new IllegalStateException("Migration didn't properly handle: "
+ result.expectedFoundMsg);
}
mDelegate.onPostMigrate(db);
updateIdentity(db);
migrated = true;
}
}
if (!migrated) {
if (mConfiguration != null
&& !mConfiguration.isMigrationRequired(oldVersion, newVersion)) {
mDelegate.dropAllTables(db);
mDelegate.createAllTables(db);
} else {
throw new IllegalStateException("A migration from " + oldVersion + " to "
+ newVersion + " was required but not found. Please provide the "
+ "necessary Migration path via "
+ "RoomDatabase.Builder.addMigration(Migration ...) or allow for "
+ "destructive migrations via one of the "
+ "RoomDatabase.Builder.fallbackToDestructiveMigration* methods.");
}
}
}
@Override
public void onDowngrade(SupportSQLiteDatabase db, int oldVersion, int newVersion) {
onUpgrade(db, oldVersion, newVersion);
}
不看不知道，官方这骚操作，onDowngrade竟然是调用的onUpgrade，我直呼内行。那对应的解决办法也很简单，重写下onDowngrade方法不要调用onUpgrade那不就可以了？先试试？试试就试试。
ASM的修改字节码
按照Greendao或者SupportSQLiteOpenHelper的经验，onDowngrade是可以直接重写，但是到了Room这里，看起来就没办法了，RoomOpenHelper的实例是在对应的XXXDataBaseImpl创建的，根本不给机会啊，而且XXXDataBaseImpl实现类是编译时Room的注解处理器生成的。
/**
* An open helper that holds a reference to the configuration until the database is opened.
*
* @hide
*/
@SuppressWarnings("unused")
@RestrictTo(RestrictTo.Scope.LIBRARY_GROUP_PREFIX)
public class RoomOpenHelper extends SupportSQLiteOpenHelper.Callback {
...
}
@Override
protected SupportSQLiteOpenHelper createOpenHelper(DatabaseConfiguration configuration) {
final SupportSQLiteOpenHelper.Callback _openCallback = new RoomOpenHelper(configuration, new RoomOpenHelper.Delegate(5) {
}
}
怎么办？ASM就派上用场了。
注意：本文不赘述ASM的详细用法，只讲解针对以上问题，如何使用ASM解决，不熟悉AMS或者对ASM有兴趣的朋友可以参考lsieun 大佬的《Java ASM系列》教程
ASM的官网地址：ASM
既然是使用ASM，那我们肯定是希望在项目编译时去动态修改RoomOpenHelper的class文件，达到重写onDowngrade的目的。
开始前需要具备自定义Gradle Plugins的知识，具体可参考：
Android Gradle Plugins系列-01-自定义Gradle插件入门指南
当然，如果只是单纯看看ASM是如何解决问题的也不强求必须懂自定义Gradle Plugins，只查看ASM相关的内容即可。
废话不多说，新建一个工程，添加ASM依赖如下：
dependencies {
implementation 'androidx.appcompat:appcompat:1.3.1'
implementation 'com.google.android.material:material:1.3.0'
implementation 'androidx.constraintlayout:constraintlayout:2.0.4'
testImplementation 'junit:junit:4.13.2'
androidTestImplementation 'androidx.test.ext:junit:1.1.3'
androidTestImplementation 'androidx.test.espresso:espresso-core:3.4.0'
implementation("androidx.room:room-runtime:2.3.0")
annotationProcessor("androidx.room:room-compiler:2.3.0")
implementation group: 'org.ow2.asm', name: 'asm', version: '7.2'
implementation group: 'org.ow2.asm', name: 'asm-commons', version: '7.2'
}
安装ASM Bytecode 插件
为了方便修改字节码，我们需要借助第三方插件，如果使用最新的AndroidStudio版本或者使用了Kotlin建议安装ASM Bytecode Viewer Support Kotlin这个插件。如果安装了另外两个插件，可能会启动报错或者无法使用，解决办法是卸载不能用的插件，重新安装ASM Bytecode Viewer Support Kotlin插件。关于如何卸载插件，某度搜索下就有相关教程了。
单元测试
为方便了调试，我们先使用单元测试来验证ASM修改字节码是够能达到期望的效果。在单元测试的包中新增两个类：ASMTest和RoomOpenHelper。
RoomOpenHelper代码如下：
/**
* 模拟Room的RoomOpenHelper类
*/
public class RoomOpenHelper {
public void onUpgrade(SupportSQLiteDatabase db) {
}
public void onDowngrade(SupportSQLiteDatabase db, int oldVersion, int newVersion) {
onUpgrade(db);
}
public void updateIdentity(SupportSQLiteDatabase db) {
}
public static class SupportSQLiteDatabase {
}
}
ASMTest代码如下：
package com.nxg.asm;
import org.junit.Test;
import org.objectweb.asm.ClassReader;
import org.objectweb.asm.ClassVisitor;
import org.objectweb.asm.ClassWriter;
import org.objectweb.asm.MethodVisitor;
import org.objectweb.asm.Opcodes;
import org.objectweb.asm.commons.AdviceAdapter;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
public class ASMTest {
@Test
public void test() {
//1、准备待分析的class
FileInputStream fis;
try {
fis = new FileInputStream("/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/src/test/java/com/nxg/asm/RoomOpenHelper.class");
//2、执行分析与插桩
//class字节码的读取与分析引擎
ClassReader cr = new ClassReader(fis);
// 写出器 COMPUTE_FRAMES 自动计算所有的内容，后续操作更简单
ClassWriter cw = new ClassWriter(ClassWriter.COMPUTE_FRAMES);
//分析，处理结果写入cw EXPAND_FRAMES：栈图以扩展格式进行访问
cr.accept(new ClassAdapterVisitor(cw), ClassReader.EXPAND_FRAMES);
//3、获得结果并输出
byte[] newClassBytes = cw.toByteArray();
FileOutputStream fos = new FileOutputStream
("/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/src/test/java/com/nxg/asm/DstRoomOpenHelper.class");
fos.write(newClassBytes);
fos.close();
} catch (IOException e) {
e.printStackTrace();
}
}
public static class ClassAdapterVisitor extends ClassVisitor {
public ClassAdapterVisitor(ClassVisitor cv) {
super(Opcodes.ASM7, cv);
}
@Override
public MethodVisitor visitMethod(int access, String name, String desc, String signature,
String[] exceptions) {
System.out.println("方法:" + name + " 签名:" + desc);
//遇到onDowngrade方法，就是返回对应的MethodAdapterVisitor
if ("onDowngrade".equals(name)) {
MethodVisitor mv = super.visitMethod(access, name, desc, signature, exceptions);
return new MethodAdapterVisitor(api, mv, access, name, desc);
}
return super.visitMethod(access, name, desc, signature, exceptions);
}
}
public static class MethodAdapterVisitor extends AdviceAdapter {
protected MethodAdapterVisitor(int api, MethodVisitor methodVisitor, int access, String name, String descriptor) {
super(api, methodVisitor, access, name, descriptor);
}
/**
* 访问方法指令,方法指令是调用方法的指令。
* 参数：
* opcode – 要访问的类型指令的操作码。 此操作码是 INVOKEVIRTUAL、INVOKESPECIAL、INVOKESTATIC 或 INVOKEINTERFACE。
* owner – 方法所有者类的内部名称（请参阅 Type.getInternalName()）。
* name - 方法的名称。
* 描述符 – 方法的描述符（请参阅类型）。
* isInterface – 如果方法的所有者类是接口。
*/
@Override
public void visitMethodInsn(int opcodeAndSource, String owner, String name, String descriptor, boolean isInterface) {
System.out.println("opcodeAndSource:" + opcodeAndSource + ", owner:" + owner + ", name:" + name + ", descriptor:" + descriptor);
//移除onUpgrade方法调用
if (opcodeAndSource == INVOKEVIRTUAL && "onUpgrade".equals(name)) {
return;
}
super.visitMethodInsn(opcodeAndSource, owner, name, descriptor, isInterface);
}
@Override
protected void onMethodEnter() {
super.onMethodEnter();
}
@Override
protected void onMethodExit(int opcode) {
super.onMethodExit(opcode);
}
}
}
Javac生成对应的class文件
由于ASM操作的是class文件，所以需要先编译生成对应的class文件。进入RoomOpenHelper所在目录，在终端执行javac RoomOpenHelper.java
root:/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/src/test/java/com/nxg/asm$ ll total 20 drwxrwxr-x 2 lb lb 4096 11月 5 16:43 ./ drwxrwxr-x 3 lb lb 4096 11月 5 14:31 ../ -rw-rw-r-- 1 lb lb 3578 11月 5 16:15 ASMTest.java -rw-rw-r-- 1 lb lb 372 11月 5 14:31 ExampleUnitTest.java -rw-rw-r-- 1 lb lb 400 11月 5 16:22 RoomOpenHelper.java root:/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/src/test/java/com/nxg/asm$ javac RoomOpenHelper.java root:/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/src/test/java/com/nxg/asm$ ll total 28 drwxrwxr-x 2 lb lb 4096 11月 5 16:43 ./ drwxrwxr-x 3 lb lb 4096 11月 5 14:31 ../ -rw-rw-r-- 1 lb lb 3578 11月 5 16:15 ASMTest.java -rw-rw-r-- 1 lb lb 372 11月 5 14:31 ExampleUnitTest.java -rw-rw-r-- 1 lb lb 616 11月 5 16:43 RoomOpenHelper.class -rw-rw-r-- 1 lb lb 400 11月 5 16:22 RoomOpenHelper.java -rw-rw-r-- 1 lb lb 323 11月 5 16:43 'RoomOpenHelper$SupportSQLiteDatabase.clas' root:/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/src/test/java/com/nxg/asm$
可以看到，生成了RoomOpenHelper.class文件如下：
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
package com.nxg.asm;
public class RoomOpenHelper {
public RoomOpenHelper() {
}
public void onUpgrade(RoomOpenHelper.SupportSQLiteDatabase var1) {
}
public void onDowngrade(RoomOpenHelper.SupportSQLiteDatabase var1, int var2, int var3) {
this.onUpgrade(var1);
}
public void updateIdentity(RoomOpenHelper.SupportSQLiteDatabase var1) {
}
public static class SupportSQLiteDatabase {
public SupportSQLiteDatabase() {
}
}
}
此类模拟了Room库的RoomOpenHelper类，可以看到onDowngrade是调用了onUpgrade的，我们的目标是改成这样：
public void onDowngrade(com.nxg.asm.RoomOpenHelper.SupportSQLiteDatabase var1, int var2, int var3) {
}
测试ASM修改字节码
现在来运行下ASMTest，点下图中绿色三角形即可：
运行完毕，包中多了一个DstRoomOpenHelper.class，打开看它的源码：
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
package com.nxg.asm;
public class RoomOpenHelper {
public RoomOpenHelper() {
}
public void onUpgrade(com.nxg.asm.RoomOpenHelper.SupportSQLiteDatabase var1) {
}
public void onDowngrade(com.nxg.asm.RoomOpenHelper.SupportSQLiteDatabase var1, int var2, int var3) {
}
public void updateIdentity(com.nxg.asm.RoomOpenHelper.SupportSQLiteDatabase var1) {
}
}
Nice，目标达成。我们看下ASMTest的关键代码部分：
public static class MethodAdapterVisitor extends AdviceAdapter {
protected MethodAdapterVisitor(int api, MethodVisitor methodVisitor, int access, String name, String descriptor) {
super(api, methodVisitor, access, name, descriptor);
}
/**
* 访问方法指令。 方法指令是调用方法的指令。
* 参数：
* opcode – 要访问的类型指令的操作码。 此操作码是 INVOKEVIRTUAL、INVOKESPECIAL、INVOKESTATIC 或 INVOKEINTERFACE。
* owner – 方法所有者类的内部名称（请参阅 Type.getInternalName()）。
* name - 方法的名称。
* 描述符 – 方法的描述符（请参阅类型）。
* isInterface – 如果方法的所有者类是接口。
*/
@Override
public void visitMethodInsn(int opcodeAndSource, String owner, String name, String descriptor, boolean isInterface) {
System.out.println("opcodeAndSource:" + opcodeAndSource + ", owner:" + owner + ", name:" + name + ", descriptor:" + descriptor);
//移除代码
if (opcodeAndSource == INVOKEVIRTUAL && "onUpgrade".equals(name)) {
return;
}
super.visitMethodInsn(opcodeAndSource, owner, name, descriptor, isInterface);
}
}
看起来很简单，由于我们修改的是类的方法，所以使用MethodAdapterVisitor。其中visitMethodInsn可以访问方法指令。
我们的目标是删除onDowngrade方法的onUpgrade调用，我们看下代码是怎么写的？
//移除代码
if (opcodeAndSource == INVOKEVIRTUAL && "onUpgrade".equals(name)) {
return;
}
就这么简单？就这么简单。一开始笔者也不知道如何删除某个方法内的某句方法调用，直到看到这篇文章深入探索编译插桩技术（四、ASM 探秘）底部的pengion网友的评论，经过一番测试，终于得以实现，感谢这些大佬的无私奉献。
文章评论如下：
android1年前
求解，怎么在事件模型下替换或删除方法内的某条语句呢？目前看来似乎只能增加代码
1年前
懂了，看了官方文档，原来是在继承MethodVisitor类的方法里遇到对应语句return就行了
笔者也去官网翻了翻文档，但是没有找到相关说明。
自定义Gradle插件
ASM的代码写好了，就可以拿过来用了，接下来就是编写自定义Gradle插件，在编译期对Room库的RoomOpenHelper类进行字节码修改达到我们的目标。
阅读到此，建议先储备自定义Gradle Plugins的知识，具体可参考：
Android Gradle Plugins系列-01-自定义Gradle插件入门指南
新建Android Library Module
ModuleName和Package 根据需要修改，这里笔者选择Kotlin语言，Bytecode Level选择8。
删掉不必要的包和文件。
配置implementation-class
按照以下路径，建立对应的目录和文件
module/src-main-resources/META-INF/gradle-plugins/asm-gradle-plugin.properties
文件内容如下：
implementation-class=com.nxg.plugins.ASMGradlePlugin
用于配置插件的实现类，这样Gradle才能实例化插件。
新建ASMGradlePlugin插件类
在 com.nxg.plugins包中新建ASMGradlePlugin类实现Plugin接口：
package com.nxg.plugins;
import com.android.build.gradle.AppExtension;
import org.gradle.api.Plugin;
import org.gradle.api.Project;
import org.jetbrains.annotations.NotNull;
public class ASMGradlePlugin implements Plugin<Project> {
@Override
public void apply(@NotNull Project project) {
}
}
一个简单的啥都不能干的插件就完成了。
配置插件的build.gradle
plugins { id 'maven-publish' id 'java-library' id 'kotlin' id 'groovy'}java { sourceCompatibility = JavaVersion.VERSION_1_8 targetCompatibility = JavaVersion.VERSION_1_8}dependencies { implementation fileTree(dir: 'libs', include: ['*.jar']) implementation "com.android.tools.build:gradle:3.5.0" implementation gradleApi() implementation "org.jetbrains.kotlin:kotlin-stdlib-jdk8:1.5.30" implementation group: 'org.ow2.asm', name: 'asm', version: '7.2' implementation group: 'org.ow2.asm', name: 'asm-commons', version: '7.2'}//定义Maven仓库信息def MAVEN_GROUP_ID = "com.nxg.plugins"def MAVEN_ARTIFACT_ID = "asm-gradle-plugin"def MAVEN_VERSION = "1.0.0"publishing { publications { java(MavenPublication) { from components.java groupId = MAVEN_GROUP_ID artifactId = MAVEN_ARTIFACT_ID version = MAVEN_VERSION } } repositories { mavenLocal() maven { // change to point to your repo, e.g. http://my.org/repo url = layout.buildDirectory.dir('repo') } }}就不多说了，maven-publish和asm都是需要的。
编写ASM代码
package com.nxg.pluginsimport com.android.build.api.transform.*import com.android.build.gradle.internal.pipeline.TransformManagerimport com.android.utils.FileUtilsimport org.gradle.api.Projectimport org.objectweb.asm.*import org.objectweb.asm.commons.AdviceAdapterimport java.io.*import java.util.zip.ZipEntryimport java.util.zip.ZipFileimport java.util.zip.ZipOutputStreamconst val METHOD_ON_DOWNGRADE = "onDowngrade"const val METHOD_ON_UPGRADE = "onUpgrade"const val CLASS_ROOM_OPEN_HELPER = "androidx/room/RoomOpenHelper.class"/** * 访问class */class RoomOpenHelperClassVisitor constructor( classWriter: ClassWriter, private val className: String) : ClassVisitor(Opcodes.ASM6, classWriter) { private var mClassName: String? = null override fun visit( version: Int, access: Int, name: String?, signature: String?, superName: String?, interfaces: Array<out String>? ) { super.visit(version, access, name, signature, superName, interfaces) mClassName = name } override fun visitMethod( access: Int, name: String?, desc: String?, signature: String?, exceptions: Array<out String>? ): MethodVisitor { //println("RoomOpenHelperClassVisitor mClassName $mClassName className $className name $name") val methodVisitor = super.visitMethod(access, name, desc, signature, exceptions) if (className == mClassName && METHOD_ON_DOWNGRADE == name) { //返回自定义MethodVisitor对象 return RoomOpenHelperMethodVisitor(methodVisitor, access, name, desc) } return methodVisitor }}/** * 访问method */class RoomOpenHelperMethodVisitor constructor( methodVisitor: MethodVisitor, access: Int, name: String, descriptor: String?) : AdviceAdapter(Opcodes.ASM6, methodVisitor, access, name, descriptor) { override fun visitMethodInsn( opcode: Int, owner: String?, name: String?, desc: String?, itf: Boolean ) { //移除METHOD_ON_UPGRADE方法调用 if (opcode == INVOKEVIRTUAL && METHOD_ON_UPGRADE == name) { println("rm onUpgrade(db, oldVersion, newVersion) and add updateIdentity(db)") mv.visitVarInsn(ALOAD, 0) mv.visitVarInsn(ALOAD, 1) mv.visitMethodInsn( INVOKEVIRTUAL, "androidx/room/RoomOpenHelper", "updateIdentity", "(Landroidx/sqlite/db/SupportSQLiteDatabase;)V", false ) return } super.visitMethodInsn(opcode, owner, name, desc, itf) }}/** *Transform扫描class */class RoomOpenHelperTransform internal constructor(private val project: Project) : Transform() { override fun getName(): String { return "RoomOpenHelperTransform" } override fun getInputTypes(): Set<QualifiedContent.ContentType> { return TransformManager.CONTENT_CLASS } override fun getScopes(): MutableSet<in QualifiedContent.Scope>? { return TransformManager.SCOPE_FULL_PROJECT } override fun isIncremental(): Boolean { return false } @Throws(TransformException::class, InterruptedException::class, IOException::class) override fun transform(transformInvocation: TransformInvocation) { super.transform(transformInvocation) println("\nRoomOpenHelperTransform start to transform-------------->>>>>>>") val outputProvider = transformInvocation.outputProvider val isIncremental = transformInvocation.isIncremental println("RoomOpenHelperTransform isIncremental is $isIncremental-------------->>>>>>>") //如果非增量，则清空旧的输出内容 if (!isIncremental) { println("RoomOpenHelperTransform outputProvider delete all-------------->>>>>>>") outputProvider.deleteAll() } val inputs = transformInvocation.inputs for (transformInput in inputs) { //遍历所有的class文件目录 val directoryInputs = transformInput.directoryInputs for (directoryInput in directoryInputs) { //必须这样获取输出路径的目录名称 val destFile = transformInvocation.outputProvider.getContentLocation( directoryInput.name, directoryInput.contentTypes, directoryInput.scopes, Format.DIRECTORY ) FileUtils.copyDirectory(directoryInput.file, destFile) } val jarInputs = transformInput.jarInputs for (jarInput in jarInputs) { //获取输出路径下的jar包名称，必须这样获取，得到的输出路径名不能重复，否则会被覆盖 val destFile = transformInvocation.outputProvider.getContentLocation( jarInput.name, jarInput.contentTypes, jarInput.scopes, Format.JAR ) if (jarInput.file.absolutePath.endsWith(".jar")) { //println("RoomOpenHelperTransform: jarInput.file.absolutePath = " + jarInput.file.absolutePath); val jarFile = jarInput.file //只处理有我们业务逻辑的jar包 if (shouldProcessPreDexJar(jarFile.absolutePath)) { handleJar(jarFile, destFile) continue } } //将输入文件拷贝到输出目录下 FileUtils.copyFile(jarInput.file, destFile) } } } companion object { private fun shouldProcessPreDexJar(path: String): Boolean { return path.contains("room-runtime") } private fun handleJar(jarFile: File, destFile: File) { println("RoomOpenHelperTransform: handleJar ${jarFile.absolutePath}") val zipFile = ZipFile(jarFile) val zipOutputStream = ZipOutputStream(FileOutputStream(destFile)) zipOutputStream.use { zipFile.use { val enumeration = zipFile.entries() while (enumeration.hasMoreElements()) { val zipEntry = enumeration.nextElement() val zipEntryName = zipEntry.name //println("RoomOpenHelperTransform: handleJar zipEntryName $zipEntryName") if (CLASS_ROOM_OPEN_HELPER == zipEntryName) { val inputStream = zipFile.getInputStream(zipEntry) val classReader = ClassReader(inputStream) println("RoomOpenHelperTransform: handleJar classReader.className ${classReader.className}") val classWriter = ClassWriter(classReader, ClassWriter.COMPUTE_MAXS) val classVisitor: ClassVisitor = RoomOpenHelperClassVisitor(classWriter, classReader.className) classReader.accept(classVisitor, ClassReader.EXPAND_FRAMES) val data = classWriter.toByteArray() val byteArrayInputStream: InputStream = ByteArrayInputStream(data) val newZipEntry = ZipEntry(zipEntryName) FileUtil.addZipEntry(zipOutputStream, newZipEntry, byteArrayInputStream) } else { val newZipEntry = ZipEntry(zipEntryName) FileUtil.addZipEntry( zipOutputStream, newZipEntry, zipFile.getInputStream(zipEntry) ) } } } } } private fun eachFileRecurse(file: File) { if (file.exists()) { val files = file.listFiles() if (null != files) { for (tempFile in files) { if (tempFile.isDirectory) { eachFileRecurse(tempFile) } else { if (tempFile.name == "module-info.class") { println("RoomOpenHelperTransform: class file name = module-info.class , delete ") } } } } } } private fun handleSources(directoryInput: DirectoryInput) { directoryInput.file.walkTopDown().filter { it.isFile }.forEach { if (CLASS_ROOM_OPEN_HELPER == it.name) { it.inputStream().use { inputStream -> val classReader = ClassReader(inputStream) println("handleSources->${it.absolutePath}, name->${classReader.className}") val classWriter = ClassWriter( classReader, ClassWriter.COMPUTE_FRAMES or ClassWriter.COMPUTE_MAXS ) val classVisitor: ClassVisitor = RoomOpenHelperClassVisitor(classWriter, classReader.className) classReader.accept(classVisitor, ClassReader.EXPAND_FRAMES) it.outputStream().use { outputStream -> outputStream.write(classWriter.toByteArray()) } } } } } }}这里用Kotlin重写了一份，就不赘述ASM的相关怎么用了。主要是RoomOpenHelperTransform这个类，为什么插件可以在编译时获取class文件并且修改字节码，就是靠这个Transform。
Transform的知识点参考：Gradle Transform API 的基本使用
配置插件使用Transform
写好的Transform怎么用？在插件实现类的apply方法中，使用AppExtension的registerTransform注册即可，代码如下：
package com.nxg.plugins;
import com.android.build.gradle.AppExtension;
import org.gradle.api.Plugin;
import org.gradle.api.Project;
import org.jetbrains.annotations.NotNull;
public class ASMGradlePlugin implements Plugin<Project> {
@Override
public void apply(@NotNull Project project) {
System.out.println("ASMGradlePlugin: apply------------------>");
AppExtension appExtension = project.getExtensions().getByType(AppExtension.class);
appExtension.registerTransform(new RoomOpenHelperTransform(project));
project.task("hello").doLast(task -> System.out.println("Hello from the com.nxg.plugins.JavaGreetingPlugin(buildSrc)"));
}
}
到此，插件就写完了，是时候运行看看效果了。
发布Gradle插件
由于上面的插件写法属于独立的插件项目，因此要想使用插件，必须先把插件发布出去，然后其它项目才能使用这个插件。插件的发布也很简单，通过maven-publish插件提供的gradle publish task即可，maven-publish插件使用和配置的关键代码如下：
plugins { id 'maven-publish' ...}...//定义Maven仓库信息def MAVEN_GROUP_ID = "com.nxg.plugins"def MAVEN_ARTIFACT_ID = "asm-gradle-plugin"def MAVEN_VERSION = "1.0.0"publishing { publications { java(MavenPublication) { from components.java groupId = MAVEN_GROUP_ID artifactId = MAVEN_ARTIFACT_ID version = MAVEN_VERSION } } repositories { mavenLocal() maven { // change to point to your repo, e.g. http://my.org/repo url = layout.buildDirectory.dir('repo') } }}配置好后，点击Sync Projects With Gradle File，即可在右上角的gradl task list中看到对应module的publish tasks。
双击publisToMavenLocal即可发布插件到maven的本地目录，一般是/.m2/repository目录。

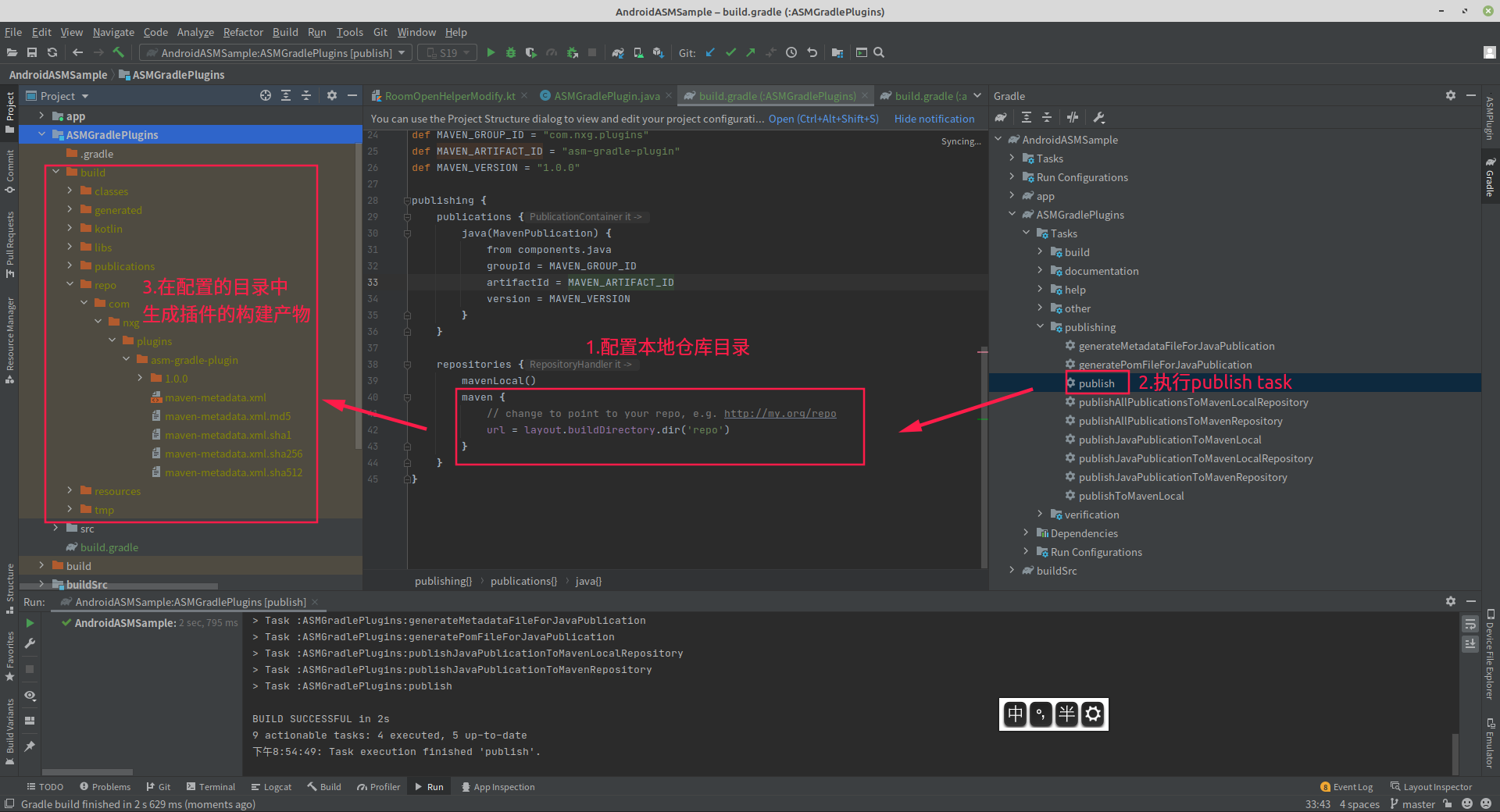

当然，你可以发布到指定的目录中：
使用Gradle插件
配置插件的仓库和classpath
有了插件就可以用了。在工程项目的根目录的build.gradle中添加插件的classpath：
classpath 'com.nxg.plugins:asm-gradle-plugin:1.0.0'
由于插件是发布到mavenLocal的，所以仓库也要加配置mavenLocal：
repositories {
mavenLocal()
google()
mavenCentral()
}
完整的build.gradle:
// Top-level build file where you can add configuration options common to all sub-projects/modules.
buildscript {
repositories {
mavenLocal()
google()
mavenCentral()
}
dependencies {
classpath "com.android.tools.build:gradle:7.0.1"
classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:1.5.30"
classpath 'com.nxg.plugins:asm-gradle-plugin:1.0.0'
// NOTE: Do not place your application dependencies here; they belong
// in the individual module build.gradle files
}
}
task clean(type: Delete) {
delete rootProject.buildDir
}
在app中apply插件
在app的build.gradle中apply插件即可正常使用插件功能。
apply plugin: 'asm-gradle-plugin'
完整的build.gradle:
plugins {
id 'com.android.application'
id 'kotlin-android'
id 'greeting'
}
apply plugin: 'asm-gradle-plugin'
android {
compileSdk 31
defaultConfig {
applicationId "com.nxg.asm"
minSdk 21
targetSdk 31
versionCode 1
versionName "1.0"
testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
}
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
}
}
compileOptions {
sourceCompatibility JavaVersion.VERSION_1_8
targetCompatibility JavaVersion.VERSION_1_8
}
kotlinOptions {
jvmTarget = '1.8'
}
}
dependencies {
implementation 'androidx.core:core-ktx:1.6.0'
implementation 'androidx.appcompat:appcompat:1.3.1'
implementation 'com.google.android.material:material:1.3.0'
implementation 'androidx.constraintlayout:constraintlayout:2.0.4'
testImplementation 'junit:junit:4.13.2'
androidTestImplementation 'androidx.test.ext:junit:1.1.3'
androidTestImplementation 'androidx.test.espresso:espresso-core:3.4.0'
implementation("androidx.room:room-runtime:2.3.0")
annotationProcessor("androidx.room:room-compiler:2.3.0")
implementation group: 'org.ow2.asm', name: 'asm', version: '7.2'
implementation group: 'org.ow2.asm', name: 'asm-commons', version: '7.2'
}
注意，由于我们的自定义插件是发布到mavenLocal的，如果mavenLocal的目录中没有这个插件，直接apply插件就会报错，因此建议先注释apply plugin: 'asm-gradle-plugin'，待插件发布后再取消注释。
验证
编译项目生成apk
直接build即可，build的过程可以看到相关日志打印。
apktool反编译apk
使用apktool反编译apk得到解压的文件夹，按照图中的包名找到对应的RoomOpenHelper.smali复制待用。
使用smali.jar反编译smail文件
使用smali.jar反编译复制好的RoomOpenHelper.smali得到RoomOpenHelper.dex文件。
使用d2j-dex2jar.sh 反编译dex文件
使用d2j-dex2jar.sh反编译RoomOpenHelper.dex得到RoomOpenHelper-dex2jar.jar文件。
使用jd-gui 查看jar文件
使用jd-gui查看RoomOpenHelper-dex2jar.jar源码：

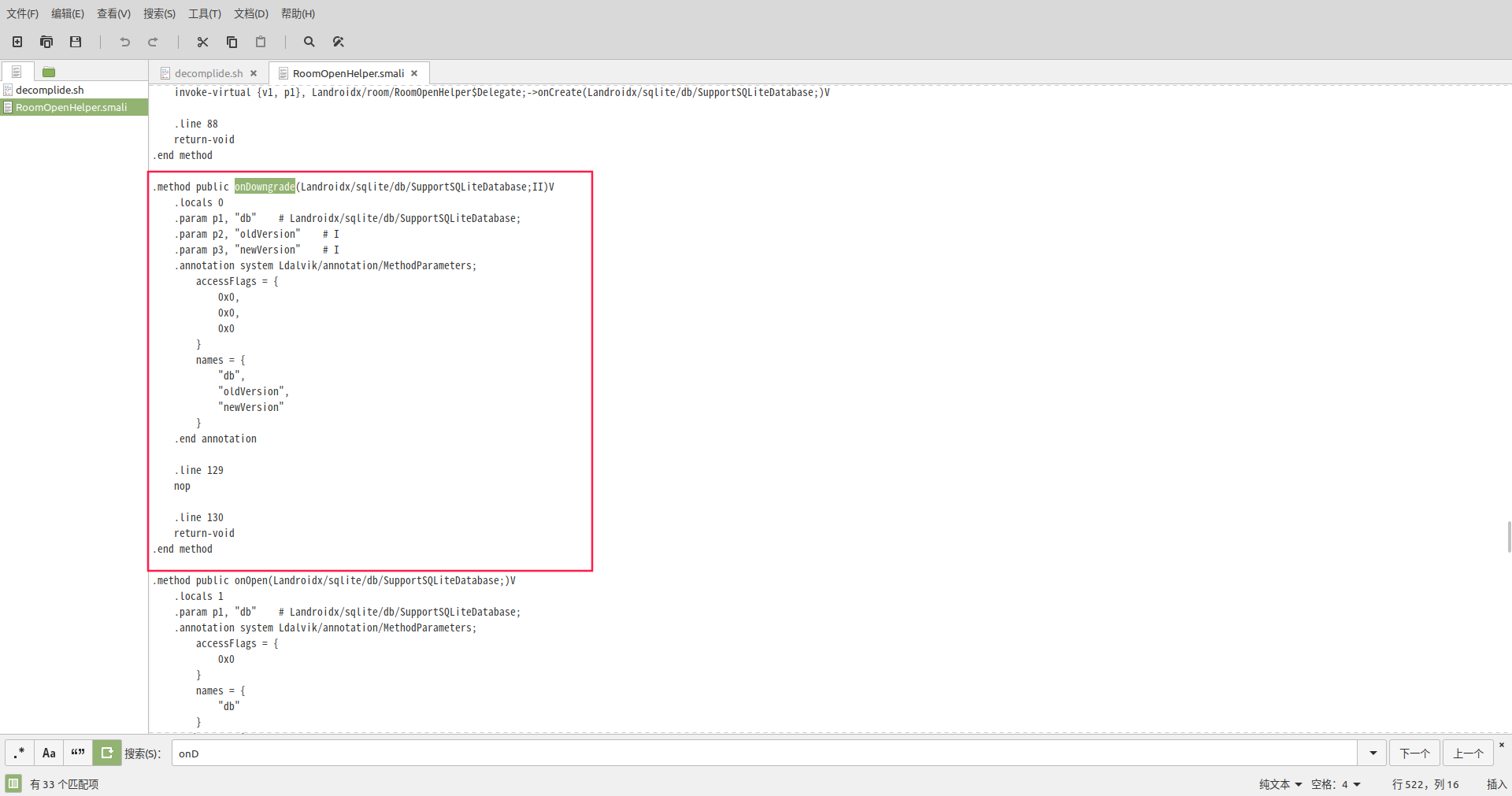

顺便看下RoomOpenHelper.smali：
没毛病，是想要的效果了。
相关反编译脚本
#!/bin/bash rm RoomOpenHelper.smali rm RoomOpenHelper.dex rm RoomOpenHelper-dex2jar.jar java -jar apktool.jar d -f app-debug.apk cp /work/decompile/app-debug/smali/androidx/room/RoomOpenHelper.smali /work/decompile java -jar smali-2.5.2.jar a RoomOpenHelper.smali -o RoomOpenHelper.dex sh ./dex-tools-2.1/d2j-dex2jar.sh --force RoomOpenHelper.dex
还没结束
到这里，对于通过ASM修改Android SDK源码的方式来解决问题的思路已经全部讲解完了。
identityHash引发的新问题
但是对于Jetpack Room数据库降级引发的崩溃这个问题来说，还是没有彻底解决的，新的异常如下：
Room cannot verify the data integrity. Looks like"
+ " you've changed schema but forgot to update the version number. You can"
+ " simply fix this by increasing the version number.
查看源码发现时是checkIdentity方法导致的，为什么会这样？
private void checkIdentity(SupportSQLiteDatabase db) {
String identityHash = null;
if (hasRoomMasterTable(db)) {
Cursor cursor = db.query(new SimpleSQLiteQuery(RoomMasterTable.READ_QUERY));
//noinspection TryFinallyCanBeTryWithResources
try {
if (cursor.moveToFirst()) {
identityHash = cursor.getString(0);
}
} finally {
cursor.close();
}
}
if (!mIdentityHash.equals(identityHash) && !mLegacyHash.equals(identityHash)) {
throw new IllegalStateException("Room cannot verify the data integrity. Looks like"
+ " you've changed schema but forgot to update the version number. You can"
+ " simply fix this by increasing the version number.");
}
}
private static boolean hasRoomMasterTable(SupportSQLiteDatabase db) {
Cursor cursor = db.query("SELECT 1 FROM sqlite_master WHERE type = 'table' AND name='"
+ RoomMasterTable.TABLE_NAME + "'");
//noinspection TryFinallyCanBeTryWithResources
try {
return cursor.moveToFirst() && cursor.getInt(0) != 0;
} finally {
cursor.close();
}
}
@SuppressWarnings("WeakerAccess")
@RestrictTo(RestrictTo.Scope.LIBRARY_GROUP)
public class RoomMasterTable {
/**
* The master table where room keeps its metadata information.
*/
public static final String TABLE_NAME = "room_master_table";
// must match the runtime property Room#MASTER_TABLE_NAME
public static final String NAME = "room_master_table";
private static final String COLUMN_ID = "id";
private static final String COLUMN_IDENTITY_HASH = "identity_hash";
public static final String DEFAULT_ID = "42";
public static final String CREATE_QUERY = "CREATE TABLE IF NOT EXISTS " + TABLE_NAME + " ("
+ COLUMN_ID + " INTEGER PRIMARY KEY,"
+ COLUMN_IDENTITY_HASH + " TEXT)";
public static final String READ_QUERY = "SELECT " + COLUMN_IDENTITY_HASH
+ " FROM " + TABLE_NAME + " WHERE "
+ COLUMN_ID + " = " + DEFAULT_ID + " LIMIT 1";
/**
* We don't escape here since we know what we are passing.
*/
public static String createInsertQuery(String hash) {
return "INSERT OR REPLACE INTO " + TABLE_NAME + " ("
+ COLUMN_ID + "," + COLUMN_IDENTITY_HASH + ")"
+ " VALUES(" + DEFAULT_ID + ", \"" + hash + "\")";
}
private RoomMasterTable() {
}
}
寻着蛛丝马迹，我们发现Room每次编译的时候会在对应的XXXDataBase_Impl实现类中，生成两个Hash值：identityHash和legacyHash。根据字面翻译结合checkIdentity源码可知，这两个hash值是用来检查数据库发生变化后数据库版本号是否跟着update，如果不是则抛出异常。
其中，identityHash不仅存在XXXDataBase_Impl类和RoomOpenHelper类的identityHash字段中，还保存在sqlite_master表中，代表当前数据库结构的“身份证”；而legacyHash只存在XXXDataBase_Impl类和RoomOpenHelper类的mLegacyHash字段，不能在sqlite_master表中。
为什么要两个hash值？一个不行吗？看下面注释就明白了。原来Room V1版本中存在一个bug，如果表结构的字段排序不一样会导致生成的hash值（mLegacyHash）不一样，这样导致的结果是，如果你只是修改了代码中字段的排序（没有对字段名称和数量都没变），就会导致抛出异常提示你升级版本号，显然这样是没有必要的。之后Android官方修复了这个bug，用新的identityHash来处理，同时保留老的mLegacyHash，并且判断条件是必须identityHash和legacyHash都不一致才会抛出异常，这样就能避免上述提到的bug了。
@NonNull
private final String mIdentityHash;
/**
* Room v1 had a bug where the hash was not consistent if fields are reordered.
* The new has fixes it but we still need to accept the legacy hash.
*/
@NonNull // b/64290754
private final String mLegacyHash;
回到正题，为什么onDowngrade按下面方式修改了还不行？
//修改前
@Override
public void onDowngrade(SupportSQLiteDatabase db, int oldVersion, int newVersion) {
onUpgrade(db, oldVersion, newVersion);
}
//修改后
@Override
public void onDowngrade(SupportSQLiteDatabase db, int oldVersion, int newVersion) {
}
原因就是RoomOpenHelper的onOpen方法会在打开数据库时去检查identityHash和legacyHash，由于onDowngrade空实现并没有更新sqlite_master表中的identity_hash字段，这样一来必然会导致checkIdentity判断不通过，因为sqlite_master表中的identity_hash字段是新数据库的，软件降级之后，老版本代码的identityHash和legacyHash是老的数据库的Hash值。
@Override
public void onOpen(SupportSQLiteDatabase db) {
super.onOpen(db);
checkIdentity(db);
mDelegate.onOpen(db);
// there might be too many configurations etc, just clear it.
mConfiguration = null;
}
更新identityHash
那怎么解决？很简单，要么一不做二不休把checkIdentity也干掉，要么老老实实更新sqlite_master表中的identity_hash字段。显然干掉checkIdentity是不合适的，这样搞把Room的检测机制都搞没了，风险太大，后果未知。
那如何更新identity_hash字段？调用RoomOpenHelper的updateIdentity就行了，上帝给你关上一扇门又会给你打开一扇窗。
private void updateIdentity(SupportSQLiteDatabase db) {
createMasterTableIfNotExists(db);
db.execSQL(RoomMasterTable.createInsertQuery(mIdentityHash));
}
关键代码如下：
override fun visitMethodInsn(
opcode: Int,
owner: String?,
name: String?,
desc: String?,
itf: Boolean
) {
//移除METHOD_ON_UPGRADE方法调用
if (opcode == INVOKEVIRTUAL && METHOD_ON_UPGRADE == name) {
println("rm onUpgrade(db, oldVersion, newVersion) and add updateIdentity(db)")
//新增updateIdentity方法调用
mv.visitVarInsn(ALOAD, 0)
mv.visitVarInsn(ALOAD, 1)
mv.visitMethodInsn(
INVOKEVIRTUAL,
"androidx/room/RoomOpenHelper",
"updateIdentity",
"(Landroidx/sqlite/db/SupportSQLiteDatabase;)V",
false
)
return
}
super.visitMethodInsn(opcode, owner, name, desc, itf)
}
最后再看下反编译的后的RoomOpenHelper：
最终多次测试验证，问题解决，Bingo！
小结
针对本文的这个问题本身，通过修改SDK源码的方式来解决，看起来有点小题大做了，但是这个思路是完全可以应用到其他场景的。比如第三方的库有bug，项目着急上线，没时间找第三方修改，也没有源码，那能怎么办？绝望啊！好在你现在看到了本文，就有了新的解决方案了。有句话怎么说来着，剑可以不用，但是必须要有！对吧，技多不压身，想进步就得多学。
自定义插件，ASM字节码操作和分析，Transform，这些都不是什么新鲜玩意，只要会使用，重要的就是懂得如何利用工具去高效的解决问题，在这过程中读源码是不可避免的，只有知己知彼，才能百战不殆！
可能遇到的问题
lb@lbpc:/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample$ sh gradlew clean build publish
Welcome to Gradle 7.0.2!
Here are the highlights of this release:
- File system watching enabled by default
- Support for running with and building Java 16 projects
- Native support for Apple Silicon processors
- Dependency catalog feature preview
For more details see https://docs.gradle.org/7.0.2/release-notes.html
Starting a Gradle Daemon, 1 incompatible Daemon could not be reused, use --status for details
FAILURE: Build failed with an exception.
* Where:
Build file '/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample/app/build.gradle' line: 2
* What went wrong:
An exception occurred applying plugin request [id: 'com.android.application']
> Failed to apply plugin 'com.android.internal.application'.
> Android Gradle plugin requires Java 11 to run. You are currently using Java 1.8.
You can try some of the following options:
- changing the IDE settings.
- changing the JAVA_HOME environment variable.
- changing `org.gradle.java.home` in `gradle.properties`.
* Try:
Run with --stacktrace option to get the stack trace. Run with --info or --debug option to get more log output. Run with --scan to get full insights.
* Get more help at https://help.gradle.org
Deprecated Gradle features were used in this build, making it incompatible with Gradle 8.0.
Use '--warning-mode all' to show the individual deprecation warnings.
See https://docs.gradle.org/7.0.2/userguide/command_line_interface.html#sec:command_line_warnings
BUILD FAILED in 11s
lb@lbpc:/home/work/AndroidStudioProjects/AndroidDevelopmentPractices/AndroidASMSample$
解决办法是gradle.properties配置JDK的路径：
org.gradle.java.home=/work/android/android-studio-4.0/android-studio/jre
版权声明：本文内容由互联网用户自发贡献，该文观点仅代表作者本人。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容， 请发送邮件至 举报，一经查实，本站将立刻删除。
文章由极客之音整理，本文链接：https://www.bmabk.com/index.php/post/116897.html
