https://archive.cloudera.com/cm6/6.3.1/redhat7/yum/RPMS/x86_64/cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm

https://archive.cloudera.com/cm6/6.3.1/redhat7/yum/RPMS/x86_64/cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm

https://archive.cloudera.com/cm6/6.3.1/redhat7/yum/RPMS/x86_64/cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm

https://archive.cloudera.com/cm6/6.3.1/redhat7/yum/RPMS/x86_64/cloudera-manager-server-db-2-6.3.1-1466458.el7.x86_64.rpm

https://archive.cloudera.com/cm6/6.3.1/redhat7/yum/RPMS/x86_64/enterprise-debuginfo-6.3.1-1466458.el7.x86_64.rpm

https://archive.cloudera.com/cm6/6.3.1/redhat7/yum/RPMS/x86_64/oracle-j2sdk1.8-1.8.0+update181-1.x86_64.rpm

另外需要下载 allkeys.asc

https://archive.cloudera.com/cm6/6.3.1/allkeys.asc

2.2、下载 CDH 安装包

下载地址：CDH 安装包下载

https://archive.cloudera.com/cdh6/6.3.2/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel

https://archive.cloudera.com/cdh6/6.3.2/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha1

https://archive.cloudera.com/cdh6/6.3.2/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha256

https://archive.cloudera.com/cdh6/6.3.2/parcels/manifest.json

2.3、下载 MySQL JDBC Driver

注意：默认位置 /usr/share/java/ ，默认驱动名 mysql-connector-java.jar

# 创建文件夹
mkdir -p /usr/share/java/

# 进入 MySQL 驱动文件目录
cd /usr/share/java/

# 下载 MySQL 驱动
wget https://dev.mysql.com/get/Downloads/Connector-J/mysql-connector-java-5.1.46.tar.gz

# -bash: wget: 未找到命令
yum -y install wget

# 解压压缩包
tar zxvf mysql-connector-java-5.1.46.tar.gz

# 复制并且重命名
cp /usr/share/java/mysql-connector-java-5.1.46/mysql-connector-java-5.1.46-bin.jar /usr/share/java/mysql-connector-java.jar

2、安装前环境配置

2.1、配置静态 IP 地址

# 查看当前 IP 信息
ip addr

# 编辑文件
vi /etc/sysconfig/network-scripts/ifcfg-enp2s0

# 将动态获取 IP 改为 静态获取
BOOTPROTO="dhcp" 改为 BOOTPROTO="static"

# 复制以下内容
#IP地址
IPADDR0=10.0.0.1
#子网掩码
PREFIX0=24
#网关地址
GATEWAY0=10.0.0.254
DNS1=8.8.8.8

# 重启网络服务
systemctl restart network

2.2、修改主机名称

# 所有机器都需要修改主机名称
hostnamectl set-hostname woniu

2.3、配置主机名跟 IP 地址映射

# 所有机器都需编辑 hosts 文件
vi /etc/hosts

# 添加如下内容
10.0.0.1 woniu
10.0.0.2 woniu1
10.0.0.3 woniu2

2.4、关闭防火墙

# 所有机器都需要关闭防火墙
systemctl stop firewalld.service

# 禁止开机启动
systemctl disable firewalld.service

2.5、设置 selinux

# 临时关闭 selinux
setenforce 0

# 永久关闭 selinux
sed -i "s/^SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

2.6、设置 SSH 免密码登录

# 生成秘钥，无需指定口令密码，直接回车
ssh-keygen -t rsa

# 将公钥导入到认证文件
cat  ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

# 认证文件合并，输入 yes 回车再输入服务器密码
ssh-copy-id -i ~/.ssh/id_rsa.pub  root@woniu1
ssh-copy-id -i ~/.ssh/id_rsa.pub  root@woniu2

2.7、部署 NTP 服务器进行时间同步

参考文章：CentOS7 部署 NTP 服务器进行时间同步

# 安装 ntp
yum install -y ntp

# 启动ntp
systemctl start ntpd

# 开机自动启动
systemctl enable ntpd

# 查看ntp状态
systemctl status ntpd

服务端配置

# 编辑文件
vi /etc/ntp.conf

# 日志配置
logfile /var/log/ntpd.log

# 允许网段内客户端连接此服务器同步时间，但是拒绝让他们修改服务器上的时间
restrict 10.0.0.0 mask 10.0.0.255 nomodify notrap

# 配置时间服务器（阿里云）
https://www.ntppool.org/zone/asia

server ntp1.aliyun.com
server ntp2.aliyun.com
server ntp3.aliyun.com

# 在 /ntp.conf 中定义的 server 都不可用时，将使用 local 时间作为 ntp 服务提供给 ntp 客户端。
# 建议配置，否则 ntp 服务器无法与公网 ntp 服务器同步时，其客户端也会无法同步
server 127.0.0.1
fudge 127.0.0.1 stratum 10

客户端配置

# 编辑文件
vi /etc/ntp.conf

# 日志配置
logfile /var/log/ntpd.log

# 配置时间服务器
server 10.0.0.1

2.8、安装 JDK8

下载地址：https://www.oracle.com/technetwork/java/javase/archive-139210.html

# 创建文件夹
mkdir -p /usr/java/

# 上传 JDK8 压缩文件

# 解压
tar -zxvf jdk-8u231-linux-x64.tar.gz

# 配置当前用户环境变量
vi ~/.bash_profile

# 在文件中添加如下命令，记得切换自己文件路径
export JAVA_HOME=/usr/java/jdk1.8.0_231
export PATH=$JAVA_HOME/bin:$PATH

# 立即生效
source ~/.bash_profile

3、Cloudera Manager 安装

3.1、配置本地 Cloudera Manager 仓库

# 创建本地 CM 仓库文件夹
mkdir -p /var/www/html/cloudera-repos/cm6/

# 上传下载好的 CM 安装包放入 /var/www/html/cloudera-repos/cm6/ 目录

# 安装 httpd 和 createrepo
yum -y install httpd createrepo

# 启动 httpd 服务并设置为开机自启动
systemctl start httpd && systemctl enable httpd

# 生成 RPM，注意最后必须有 .
cd /var/www/html/cloudera-repos/cm6/ && createrepo .

# 通过浏览器访问了：默认端口 80
http://woniu/cloudera-repos/cm6/

3.2、配置本地 CDH 仓库

# 创建本地 CDH 仓库文件夹
mkdir -p /var/www/html/cloudera-repos/cdh6/

# 上传下载好的 CDH 安装包放入 /var/www/html/cloudera-repos/cdh6/ 目录

# 生成 RPM，注意最后必须有 .
cd /var/www/html/cloudera-repos/cdh6/ && createrepo .

# 通过浏览器访问了：默认端口80
http://woniu/cloudera-repos/cdh6/

3.3、构建 yum 源

# 所有机器都需要配置
vi /etc/yum.repos.d/cloudera-repo.repo

# 拷贝如下内容
[cloudera-repo]
name=cloudera-repo
baseurl=http://woniu/cloudera-repos/cm6/
enabled=1
gpgcheck=0

# 清理
yum clean all
yum makecache

3.4、MySQL安装

1、参考地址：官网 MySQL 安装教程

# 创建 mysql 文件夹
mkdir -p /var/www/html/cloudera-repos/mysql5/

# 进入目录
cd /var/www/html/cloudera-repos/mysql5/

# 下载
wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm

rpm -ivh mysql-community-release-el7-5.noarch.rpm

# 更新
yum update

# 安装 mysql
yum install mysql-server

# 启动 mysql
systemctl start mysqld

# 开机自启动
systemctl enable mysqld

2、初始化数据库

# 初始化数据库
/usr/bin/mysql_secure_installation

3、备份数据库配置文件

cp /etc/my.cnf{,.bak}

4、官网推荐配置

[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
transaction-isolation = READ-COMMITTED
# Disabling symbolic-links is recommended to prevent assorted security risks;
# to do so, uncomment this line:
symbolic-links = 0

key_buffer_size = 32M
max_allowed_packet = 32M
thread_stack = 256K
thread_cache_size = 64
query_cache_limit = 8M
query_cache_size = 64M
query_cache_type = 1

max_connections = 550
#expire_logs_days = 10
#max_binlog_size = 100M

#log_bin should be on a disk with enough free space.
#Replace '/var/lib/mysql/mysql_binary_log' with an appropriate path for your
#system and chown the specified folder to the mysql user.
log_bin=/var/lib/mysql/mysql_binary_log

#In later versions of MySQL, if you enable the binary log and do not set
#a server_id, MySQL will not start. The server_id must be unique within
#the replicating group.
server_id=1

binlog_format = mixed

read_buffer_size = 2M
read_rnd_buffer_size = 16M
sort_buffer_size = 8M
join_buffer_size = 8M

# InnoDB settings
innodb_file_per_table = 1
innodb_flush_log_at_trx_commit  = 2
innodb_log_buffer_size = 64M
innodb_buffer_pool_size = 4G
innodb_thread_concurrency = 8
innodb_flush_method = O_DIRECT
innodb_log_file_size = 512M

[mysqld_safe]
log-error=/var/log/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid

sql_mode=STRICT_ALL_TABLES

6、创建数据库

Service	Database	User
Cloudera Manager Server	scm	scm
Activity Monitor	amon	amon
Reports Manager	rman	rman
Hue	hue	hue
Hive Metastore Server	metastore	hive
Sentry Server	sentry	sentry
Cloudera Navigator Audit Server	nav	nav
Cloudera Navigator Metadata Server	navms	navms
Oozie	oozie	oozie

# 登录 MySQL 数据库
mysql -uroot -p

# 初始化
CREATE DATABASE scm DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON scm.* TO 'scm'@'%' IDENTIFIED BY 'scm@123';

CREATE DATABASE amon DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON amon.* TO 'amon'@'%' IDENTIFIED BY 'amon@123';

CREATE DATABASE rman DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON rman.* TO 'rman'@'%' IDENTIFIED BY 'rman@123';

CREATE DATABASE hue DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON hue.* TO 'hue'@'%' IDENTIFIED BY 'hue@123';

CREATE DATABASE metastore DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON metastore.* TO 'metastore'@'%' IDENTIFIED BY 'metastore@123';

CREATE DATABASE sentry DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON sentry.* TO 'sentry'@'%' IDENTIFIED BY 'sentry@123';

CREATE DATABASE nav DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON nav.* TO 'nav'@'%' IDENTIFIED BY 'nav@123';

CREATE DATABASE navms DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON navms.* TO 'navms'@'%' IDENTIFIED BY 'navms@123';

CREATE DATABASE oozie DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON oozie.* TO 'oozie'@'%' IDENTIFIED BY 'oozie@123';


flush privileges;

# 删除
drop database scm;
drop database amon;
drop database rman;
drop database hue;
drop database metastore;
drop database sentry;
drop database nav;
drop database navms;
drop database oozie;
flush privileges;

3.5、安装 CM Server 和 Agent

主节点

yum install cloudera-manager-daemons cloudera-manager-agent cloudera-manager-server

所有从节点

yum install cloudera-manager-daemons cloudera-manager-agent

3.6、建立CM的数据库

参考文档：官网创建 CM 数据库教程

/opt/cloudera/cm/schema/scm_prepare_database.sh mysql scm scm

3.7、启动 CM Server

# 启动服务
systemctl start cloudera-scm-server

# 查看服务的状态
systemctl status cloudera-scm-server

# 查看系统日志
journalctl -xe

# 默认日志存放地方
/var/log/cloudera-scm-server

3.8、访问服务

# 需要等几分钟 不要慌
http://woniu:7180

4、CDH优化

4.1、禁用透明大页面压缩

echo never>/sys/kernel/mm/transparent_hugepage/defrag

echo never>/sys/kernel/mm/transparent_hugepage/enabled

4.2、虚拟内存设置

# 查看虚拟内存需求率 默认60
cat /proc/sys/vm/swappiness

# Cloudera 建议将 vm.swappiness 修改为 0
sysctl -w vm.swappiness=0
echo "vm.swappiness = 0" >> /etc/sysctl.conf

5、Cloudera Manager 初始化集群配置

5.1、用户登录

用户名：admin ，密码：admin

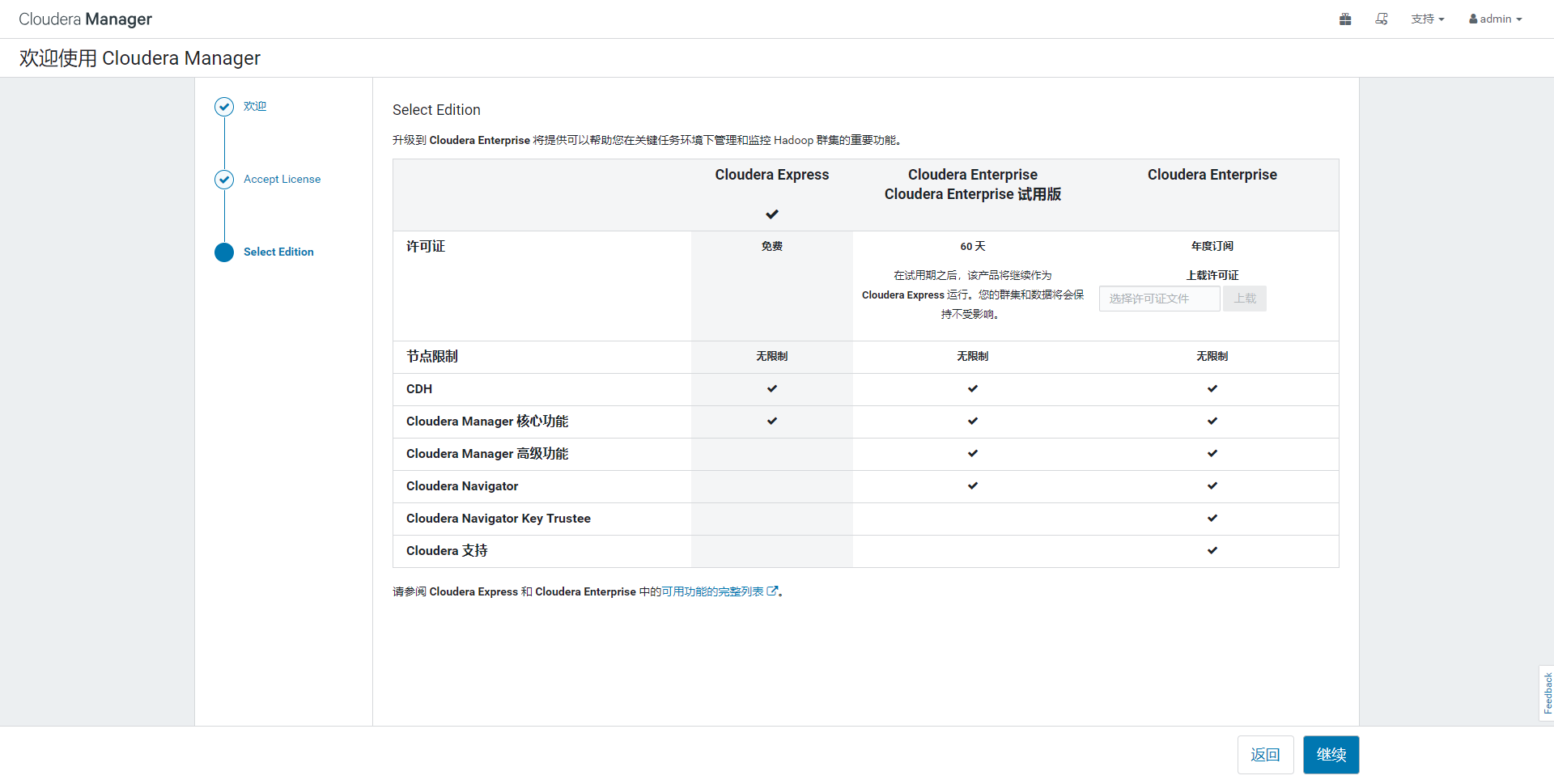

5.2、选择版本

1、欢迎页面

2、接受最终用户许可条款和条件。

3、选择免费版本

5.3、群集安装

1、欢迎页面

2、群集名称

3、扫描主机，输入主机名称点击搜索

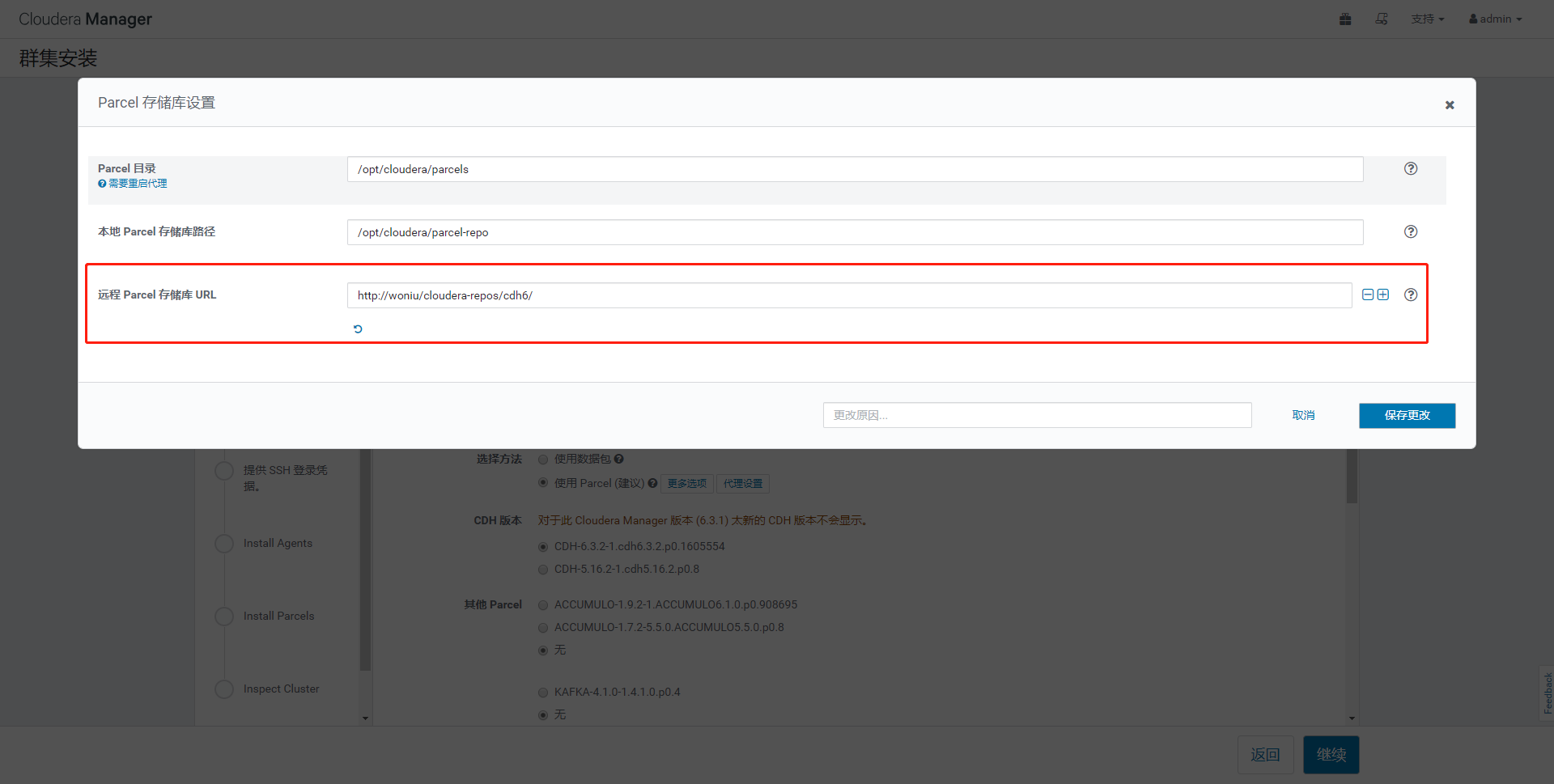

4、选择存储库

自定义存储库：http://woniu/cloudera-repos/cm6/

远程 Parcel 存储库 URL ：http://woniu/cloudera-repos/cdh6/

保存更改

5、JDK 安装选项，跳过不需要勾选

6、提供 SSH 登录凭据

7、Install Agents ，自动安装

7、Install Parcels，自动安装

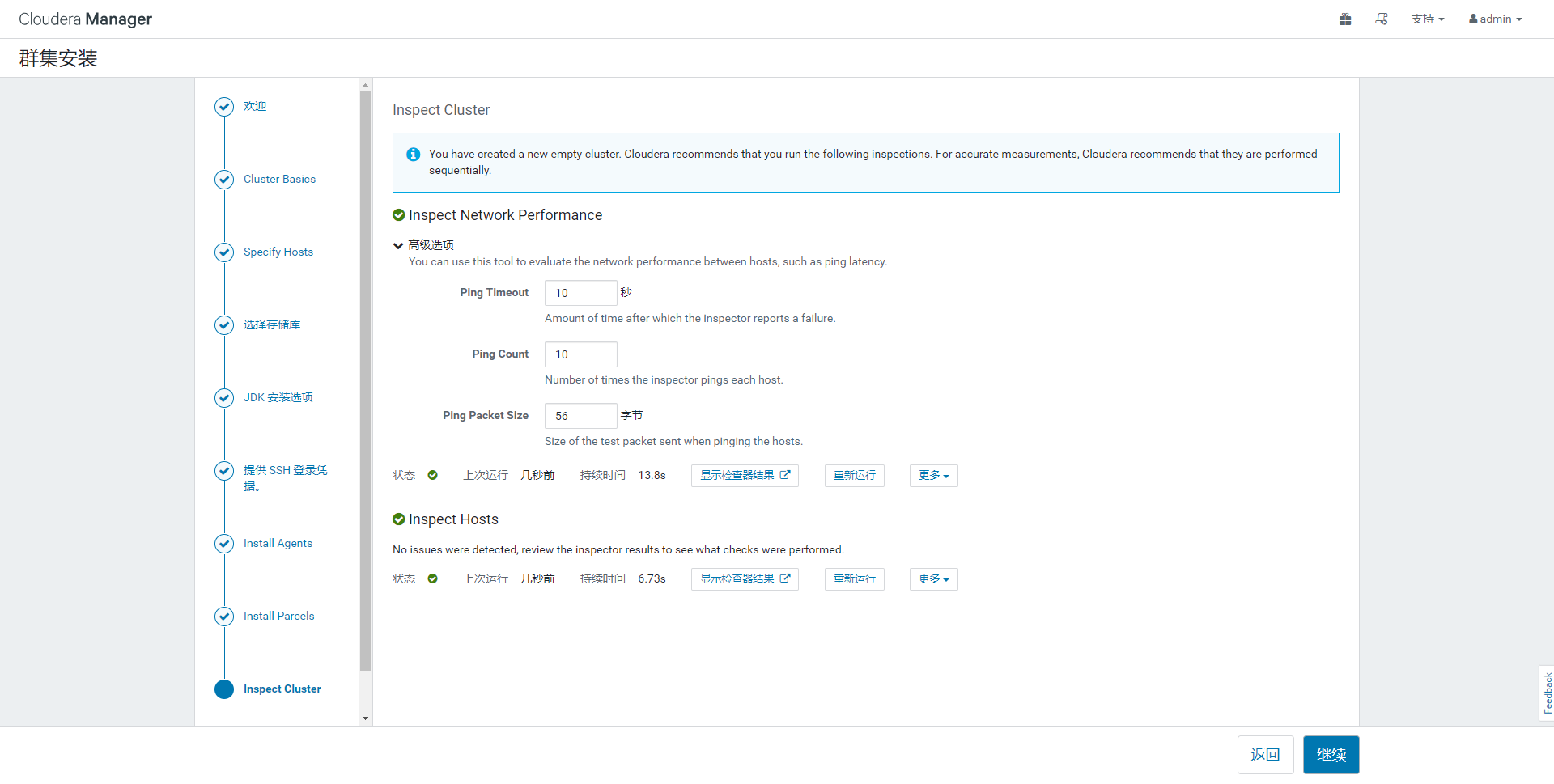

8、Inspect Cluster

先点击 Inspect Network Performance 再点击 Inspect Hosts

警告，点击显示检查器结果

已启用透明大页面压缩，可能会导致重大性能问题。请运行“echo never > /sys/kernel/mm/transparent_hugepage/defrag”和“echo never > /sys/kernel/mm/transparent_hugepage/enabled”以禁用此设置，然后将同一命令添加到 /etc/rc.local 等初始化脚本中，以便在系统重启时予以设置

echo never>/sys/kernel/mm/transparent_hugepage/defrag

echo never>/sys/kernel/mm/transparent_hugepage/enabled

点击重新运行

5.4、群集设置

1、Select Services

2、自定义角色分配

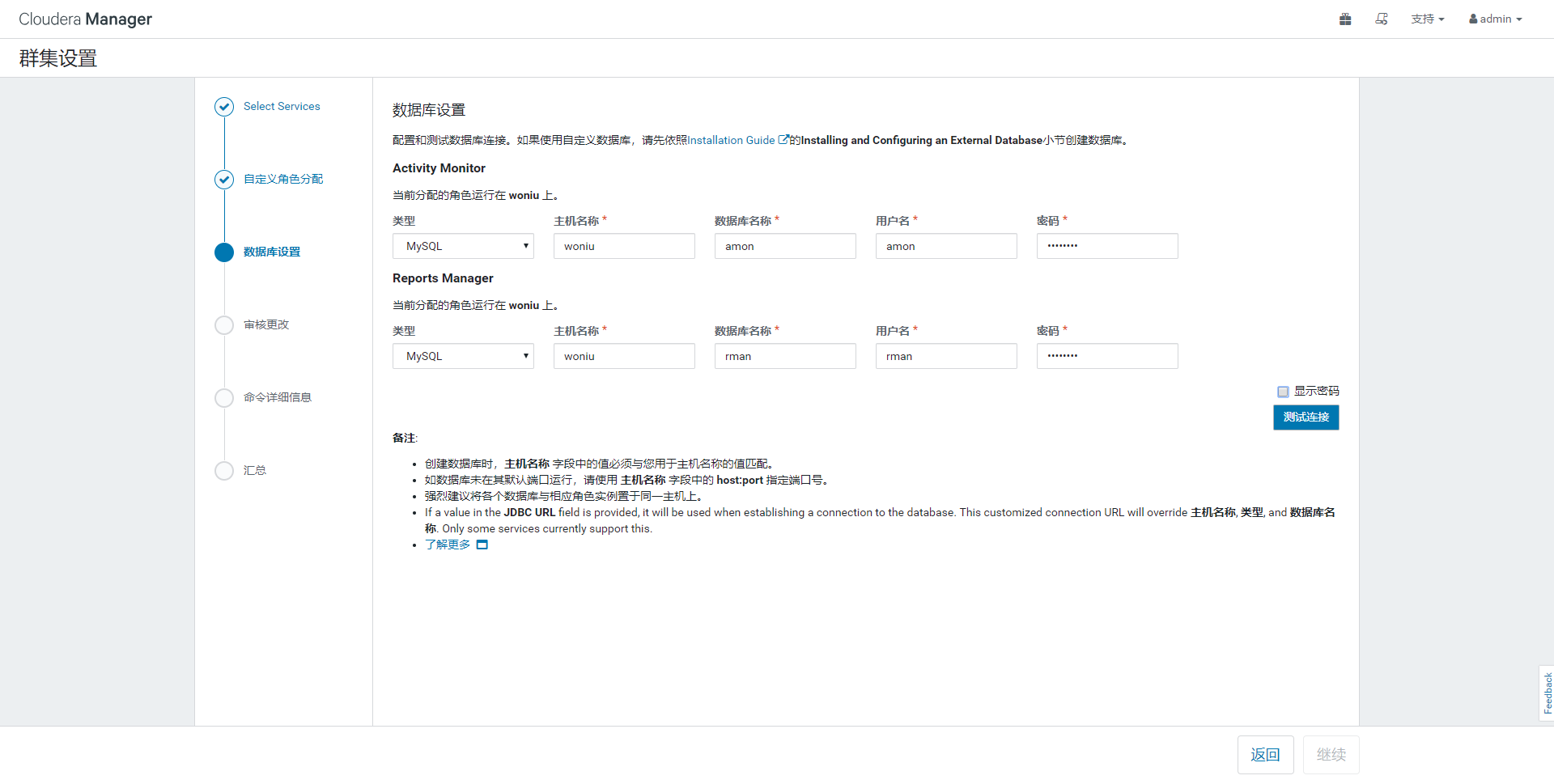

3、数据库设置

Databases for Cloudera Software 参考如下

点击测试连接

4、审核更改，默认设置

5、命令详细信息

6、汇总

文章由极客之音整理，本文链接：https://www.bmabk.com/index.php/post/78043.html

CentOS7 离线安装部署 Cloudera Manager 6.3.1

1、概述

1.1、简介

1.2、安装环境

1.3、官网教程

2、安装包准备

2.1、下载 CM 安装包
