浅析MyBatis的动态代理原理

导读:本篇文章讲解 浅析MyBatis的动态代理原理,希望对大家有帮助,欢迎收藏,转发!站点地址:www.bmabk.com

原文链接:https://juejin.cn/post/6844903841163378701

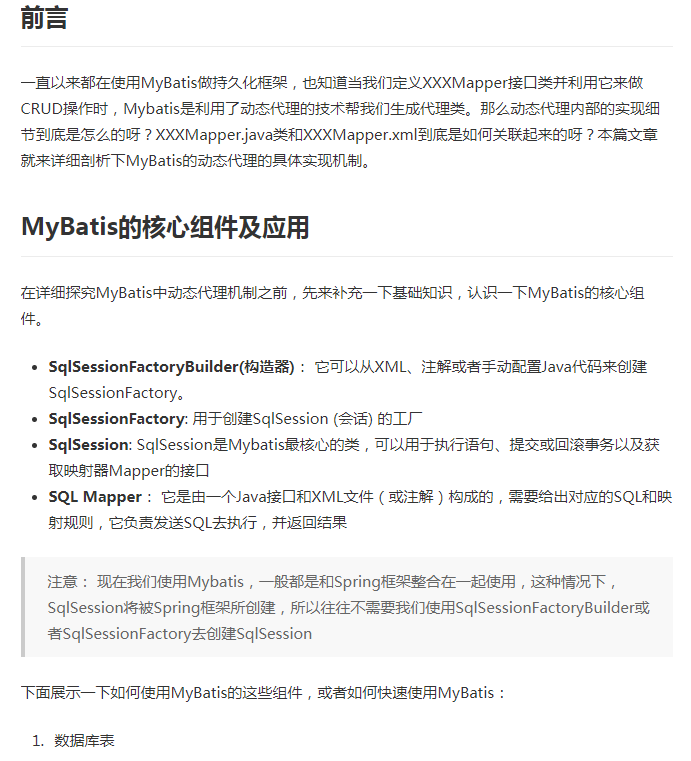

在这里插入图片描述

CREATE TABLE  user(
  id int,
  name VARCHAR(255) not NULL ,
  age int ,
  PRIMARY KEY (id)
)ENGINE =INNODB DEFAULT CHARSET=utf8;

在这里插入图片描述

@Data
public class User {
    private int id;
    private int age;
    private String name;

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", age=" + age +
                ", name='" + name + '\'' +
                '}';
    }
}


在这里插入图片描述

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<!--全局配置文件的根元素-->
<configuration>
    <!--enviroments表示环境配置,可以配置成开发环境(development)、测试环境(test)、生产环境(production)等-->
    <environments default="development">
        <environment id="development">
            <!--transactionManager: 事务管理器,属性type只有两个取值:JDBC和MANAGED-->
            <transactionManager type="MANAGED" />
            <!--dataSource: 数据源配置-->
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.jdbc.Driver" />
                <property name="url" value="jdbc:mysql://localhost:3306/test"/>
                <property name="username" value="root" />
                <property name="password" value="root" />
            </dataSource>
        </environment>
    </environments>
    <!--mappers文件路径配置-->
    <mappers>
        <mapper resource="mapper/UserMapper.xml"/>
    </mappers>
</configuration>

在这里插入图片描述

public interface UserMapper {
    User selectById(int id);
}

在这里插入图片描述

<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--namespace属性表示命令空间,不同xml映射文件namespace必须不同-->
<mapper namespace="com.pjmike.mybatis.UserMapper">
    <select id="selectById" parameterType="int"
            resultType="com.pjmike.mybatis.User">
             SELECT id,name,age FROM user where id= #{id}
       </select>
</mapper>

在这里插入图片描述

public class MybatisTest {
    private static SqlSessionFactory sqlSessionFactory;
    static {
        try {
            sqlSessionFactory = new SqlSessionFactoryBuilder()
                    .build(Resources.getResourceAsStream("mybatis-config.xml"));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    public static void main(String[] args) {
        try (SqlSession sqlSession = sqlSessionFactory.openSession()) {
            UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
            User user = userMapper.selectById(1);
            System.out.println("User : " + user);
        }
    }
}
// 结果:
User : User{id=1, age=21, name='pjmike'}

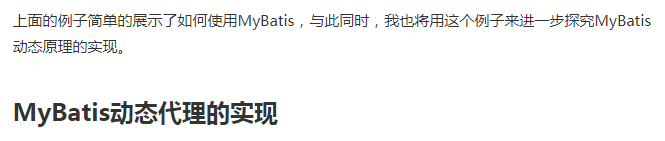

在这里插入图片描述

public static void main(String[] args) {
    try (SqlSession sqlSession = sqlSessionFactory.openSession()) {
        UserMapper userMapper = sqlSession.getMapper(UserMapper.class);// <1>
        User user = userMapper.selectById(1);
        System.out.println("User : " + user);
    }
}

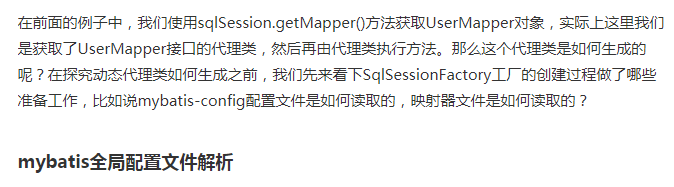

在这里插入图片描述

private static SqlSessionFactory sqlSessionFactory;
static {
    try {
        sqlSessionFactory = new SqlSessionFactoryBuilder()
                .build(Resources.getResourceAsStream("mybatis-config.xml"));
    } catch (IOException e) {
        e.printStackTrace();
    }
}

在这里插入图片描述

 public SqlSessionFactory build(InputStream inputStream, Properties properties) {
    return build(inputStream, null, properties);
  }

  public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    try {
      XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
      return build(parser.parse());
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error building SqlSession.", e);
    } finally {
      ErrorContext.instance().reset();
      try {
        inputStream.close();
      } catch (IOException e) {
        // Intentionally ignore. Prefer previous error.
      }
    }
  }

在这里插入图片描述

 public Configuration parse() {
    if (parsed) {
      throw new BuilderException("Each XMLConfigBuilder can only be used once.");
    }
    parsed = true;
    //解析全局配置文件
    parseConfiguration(parser.evalNode("/configuration"));
    return configuration;
  }

  private void parseConfiguration(XNode root) {
    try {
      //issue #117 read properties first
      propertiesElement(root.evalNode("properties"));
      Properties settings = settingsAsProperties(root.evalNode("settings"));
      loadCustomVfs(settings);
      loadCustomLogImpl(settings);
      typeAliasesElement(root.evalNode("typeAliases"));
      pluginElement(root.evalNode("plugins"));
      objectFactoryElement(root.evalNode("objectFactory"));
      objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
      reflectorFactoryElement(root.evalNode("reflectorFactory"));
      settingsElement(settings);
      // read it after objectFactory and objectWrapperFactory issue #631
      environmentsElement(root.evalNode("environments"));
      databaseIdProviderElement(root.evalNode("databaseIdProvider"));
      typeHandlerElement(root.evalNode("typeHandlers"));
      //解析mapper映射器文件
      mapperElement(root.evalNode("mappers"));
    } catch (Exception e) {
      throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
    }
  }

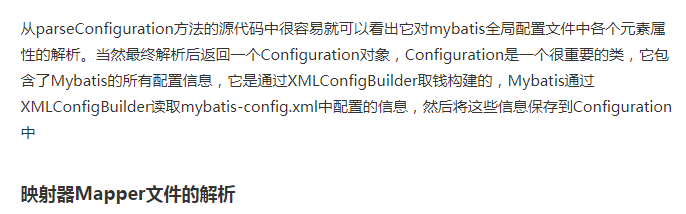

在这里插入图片描述

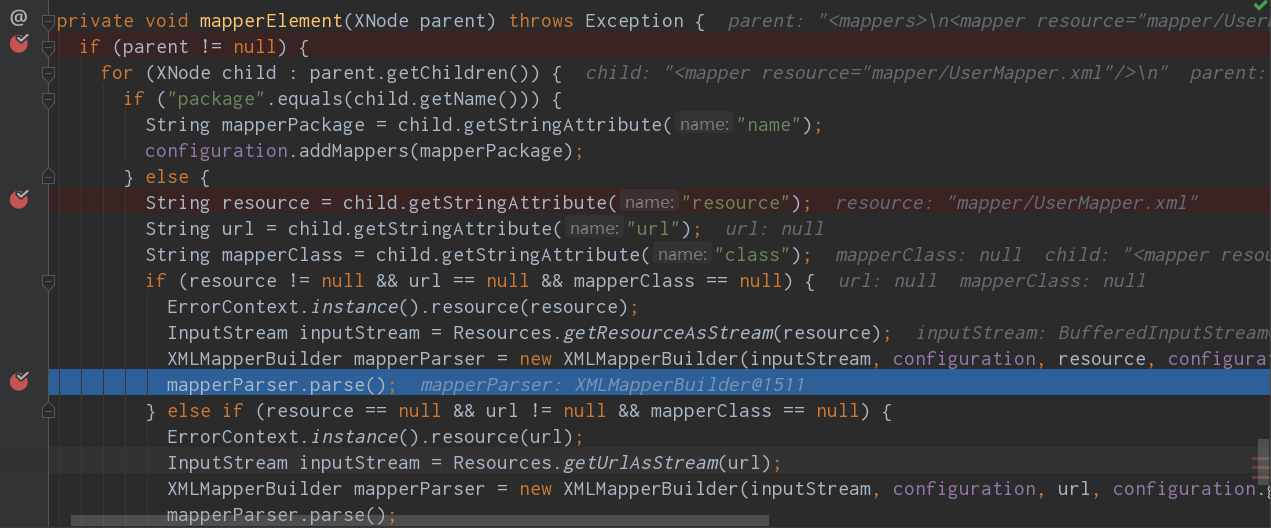

  //解析mapper映射器文件
  mapperElement(root.evalNode("mappers"));

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

  public void parse() {
    if (!configuration.isResourceLoaded(resource)) {

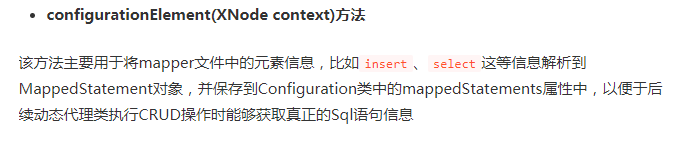

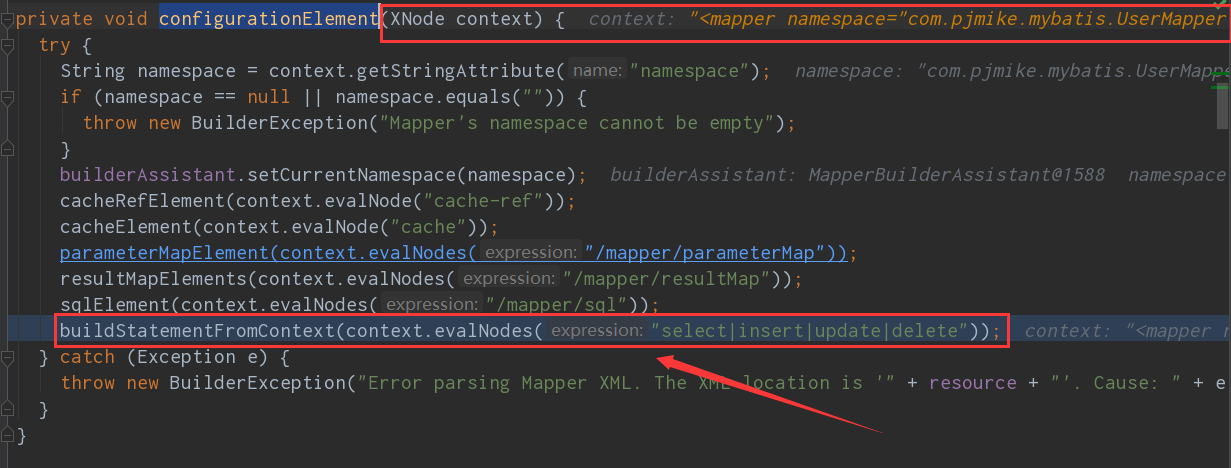

      configurationElement(parser.evalNode("/mapper")); //解析映射文件的根节点mapper元素
      configuration.addLoadedResource(resource);
      bindMapperForNamespace(); //重点方法,这个方法内部会根据namespace属性值,生成动态代理类
    }
    parsePendingResultMaps();
    parsePendingCacheRefs();
    parsePendingStatements();
  }

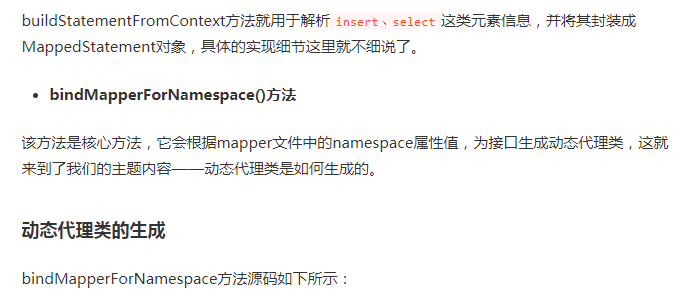

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

 private void bindMapperForNamespace() {
    //获取mapper元素的namespace属性值
    String namespace = builderAssistant.getCurrentNamespace();
    if (namespace != null) {
      Class<?> boundType = null;
      try {
        // 获取namespace属性值对应的Class对象
        boundType = Resources.classForName(namespace);
      } catch (ClassNotFoundException e) {
        //如果没有这个类,则直接忽略,这是因为namespace属性值只需要唯一即可,并不一定对应一个XXXMapper接口
        //没有XXXMapper接口的时候,我们可以直接使用SqlSession来进行增删改查
      }
      if (boundType != null) {
        if (!configuration.hasMapper(boundType)) {
          // Spring may not know the real resource name so we set a flag
          // to prevent loading again this resource from the mapper interface
          // look at MapperAnnotationBuilder#loadXmlResource
          configuration.addLoadedResource("namespace:" + namespace);
          //如果namespace属性值有对应的Java类,调用Configuration的addMapper方法,将其添加到MapperRegistry中
          configuration.addMapper(boundType);
        }
      }
    }
  }

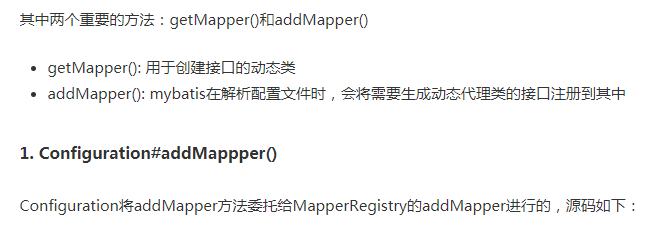

在这里插入图片描述

public class Configuration {
    ...
    protected MapperRegistry mapperRegistry = new MapperRegistry(this);
    ...
    public <T> void addMapper(Class<T> type) {
      mapperRegistry.addMapper(type);
    }
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
      return mapperRegistry.getMapper(type, sqlSession);
    }
    ...
}

在这里插入图片描述

  public <T> void addMapper(Class<T> type) {
    // 这个class必须是一个接口,因为是使用JDK动态代理,所以需要是接口,否则不会针对其生成动态代理
    if (type.isInterface()) {
      if (hasMapper(type)) {
        throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
      }
      boolean loadCompleted = false;
      try {
        // 生成一个MapperProxyFactory,用于之后生成动态代理类
        knownMappers.put(type, new MapperProxyFactory<>(type));
        //以下代码片段用于解析我们定义的XxxMapper接口里面使用的注解,这主要是处理不使用xml映射文件的情况
        MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
        parser.parse();
        loadCompleted = true;
      } finally {
        if (!loadCompleted) {
          knownMappers.remove(type);
        }
      }
    }
  }

在这里插入图片描述

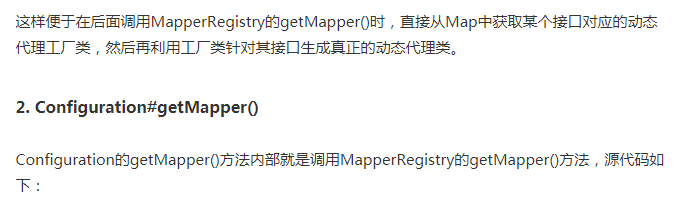

  private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();

在这里插入图片描述

  public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    //根据Class对象获取创建动态代理的工厂对象MapperProxyFactory
    final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
    if (mapperProxyFactory == null) {
      throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
    }
    try {
      //这里可以看到每次调用都会创建一个新的代理对象返回
      return mapperProxyFactory.newInstance(sqlSession);
    } catch (Exception e) {
      throw new BindingException("Error getting mapper instance. Cause: " + e, e);
    }
  }

在这里插入图片描述

  protected T newInstance(MapperProxy<T> mapperProxy) {
    //这里使用JDK动态代理,通过Proxy.newProxyInstance生成动态代理类
    // newProxyInstance的参数:类加载器、接口类、InvocationHandler接口实现类
    // 动态代理可以将所有接口的调用重定向到调用处理器InvocationHandler,调用它的invoke方法
    return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
  }

  public T newInstance(SqlSession sqlSession) {
    final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
    return newInstance(mapperProxy);
  }

PS: 关于JDK动态代理的详细介绍这里就不再细说了,有兴趣的可以参阅我之前写的文章:动态代理的原理及其应用

在这里插入图片描述

public class MapperProxy<T> implements InvocationHandler, Serializable {

  private static final long serialVersionUID = -6424540398559729838L;
  private final SqlSession sqlSession;
  private final Class<T> mapperInterface;
  private final Map<Method, MapperMethod> methodCache;

  public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
    this.sqlSession = sqlSession;
    this.mapperInterface = mapperInterface;
    this.methodCache = methodCache;
  }

  @Override
  public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {

    try {
      //如果调用的是Object类中定义的方法,直接通过反射调用即可
      if (Object.class.equals(method.getDeclaringClass())) {
        return method.invoke(this, args);
      } else if (isDefaultMethod(method)) {
        return invokeDefaultMethod(proxy, method, args);
      }
    } catch (Throwable t) {
      throw ExceptionUtil.unwrapThrowable(t);
    }
    //调用XxxMapper接口自定义的方法,进行代理
    //首先将当前被调用的方法Method构造成一个MapperMethod对象,然后掉用其execute方法真正的开始执行。
    final MapperMethod mapperMethod = cachedMapperMethod(method);
    return mapperMethod.execute(sqlSession, args);
  }
  private MapperMethod cachedMapperMethod(Method method) {
    return methodCache.computeIfAbsent(method, k -> new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
  }
  ...
}

在这里插入图片描述

public class MapperMethod {

  private final SqlCommand command;
  private final MethodSignature method;

  public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
    this.command = new SqlCommand(config, mapperInterface, method);
    this.method = new MethodSignature(config, mapperInterface, method);
  }
  public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    switch (command.getType()) {
      //insert语句的处理逻辑
      case INSERT: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.insert(command.getName(), param));
        break;
      }
      //update语句的处理逻辑
      case UPDATE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.update(command.getName(), param));
        break;
      }
      //delete语句的处理逻辑
      case DELETE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.delete(command.getName(), param));
        break;
      }
      //select语句的处理逻辑
      case SELECT:
        if (method.returnsVoid() && method.hasResultHandler()) {
          executeWithResultHandler(sqlSession, args);
          result = null;
        } else if (method.returnsMany()) {
          result = executeForMany(sqlSession, args);
        } else if (method.returnsMap()) {
          result = executeForMap(sqlSession, args);
        } else if (method.returnsCursor()) {
          result = executeForCursor(sqlSession, args);
        } else {
          Object param = method.convertArgsToSqlCommandParam(args);
          //调用sqlSession的selectOne方法
          result = sqlSession.selectOne(command.getName(), param);
          if (method.returnsOptional()
              && (result == null || !method.getReturnType().equals(result.getClass()))) {
            result = Optional.ofNullable(result);
          }
        }
        break;
      case FLUSH:
        result = sqlSession.flushStatements();
        break;
      default:
        throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
      throw new BindingException("Mapper method '" + command.getName()
          + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
  }
  ...
}

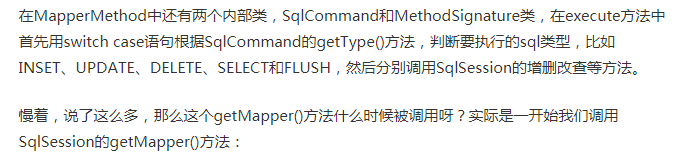

在这里插入图片描述

UserMapper userMapper = sqlSession.getMapper(UserMapper.class);

public class DefaultSqlSession implements SqlSession {

  private final Configuration configuration;
  private final Executor executor;
  @Override
  public <T> T getMapper(Class<T> type) {
    return configuration.getMapper(type, this);
  }
  ...
}

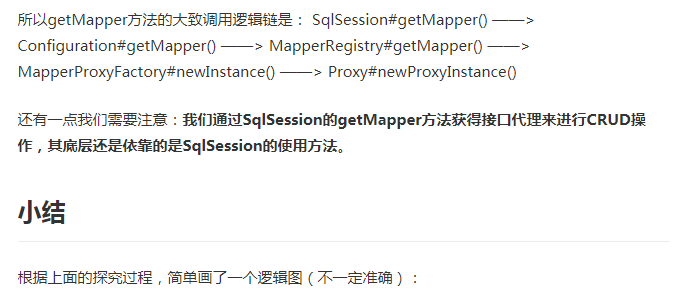

在这里插入图片描述

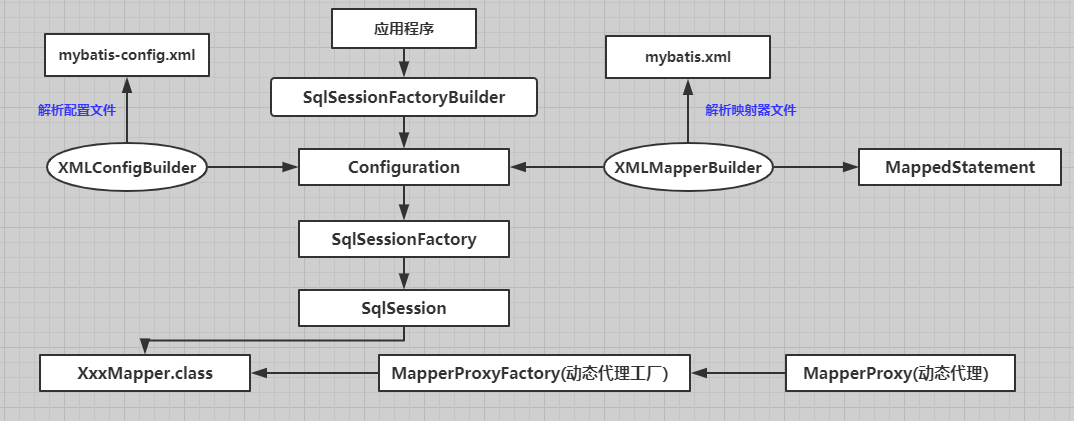

在这里插入图片描述

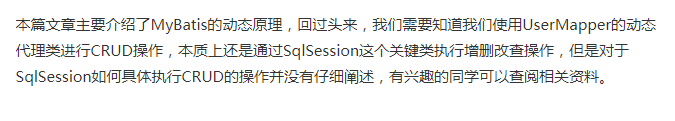

在这里插入图片描述
在这里插入图片描述

版权声明:本文内容由互联网用户自发贡献,该文观点仅代表作者本人。本站仅提供信息存储空间服务,不拥有所有权,不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容, 请发送邮件至 举报,一经查实,本站将立刻删除。

文章由极客之家整理,本文链接:https://www.bmabk.com/index.php/post/73815.html

(0)
小半的头像小半

相关推荐

极客之家——专业性很强的中文编程技术网站,欢迎收藏到浏览器,订阅我们!
