DolphinScheduler二次开发

小半 • • 技术随笔 • 阅读 518

导读：本篇文章讲解 DolphinScheduler二次开发，希望对大家有帮助，欢迎收藏，转发！站点地址：www.bmabk.com

官方网站：https://dolphinscheduler.apache.org/zh-cn

改动的功能：

1、新增一个task类型

  1. 找到TaskType.java文件，新增一个任务类型
    /*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.grgbanking.ds.datazone.common.enums;

import com.baomidou.mybatisplus.annotation.EnumValue;

/**
 * task node type
 */
public enum TaskType {
    /**
     * 0 SHELL
     * 1 SQL
     * 2 SUB_PROCESS
     * 3 PROCEDURE
     * 4 MR
     * 5 SPARK
     * 6 PYTHON
     * 7 DEPENDENT
     * 8 FLINK
     * 9 HTTP
     * 10 DATAX
     * 11 CONDITIONS
     * 12 SQOOP
     * 13 SYNC(新增的)
     */
    SHELL(0, "shell"),
    SQL(1, "sql"),
    SUB_PROCESS(2, "sub_process"),
    PROCEDURE(3, "procedure"),
    MR(4, "mr"),
    SPARK(5, "spark"),
    PYTHON(6, "python"),
    DEPENDENT(7, "dependent"),
    FLINK(8, "flink"),
    HTTP(9, "http"),
    DATAX(10, "datax"),
    CONDITIONS(11, "conditions"),
    SQOOP(12, "sqoop"),
    SYNC(13, "sync");

    TaskType(int code, String descp){
        this.code = code;
        this.descp = descp;
    }

    @EnumValue
    private final int code;
    private final String descp;

    public static boolean typeIsNormalTask(String typeName) {
        TaskType taskType = TaskType.valueOf(typeName);
        return !(taskType == TaskType.SUB_PROCESS || taskType == TaskType.DEPENDENT);
    }

    public int getCode() {
        return code;
    }

    public String getDescp() {
        return descp;
    }
}
  2. 定义你的参数类，用于json解析参数
    /*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.grgbanking.ds.datazone.common.task.sync;


import com.grgbanking.ds.datazone.common.process.ResourceInfo;
import com.grgbanking.ds.datazone.common.task.AbstractParameters;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * 数据同步参数
 */
@Data
public class SyncParameters extends AbstractParameters {

    /**
     * 源数据host
     */
    private String sourceHost;

    /**
     * 源数据port
     */
    private String sourcePort;

    /**
     * 源数据类型
     */
    private String sourceType;

    /**
     * 源数据库
     */
    private String sourceDatabase;

    /**
     * 源数据schema
     */
    private String sourceSchema;

    /**
     * 源数据用户
     */
    private String sourceUser;

    /**
     * 源数据密码
     */
    private String sourcePassword;

    /**
     * 源数据信息id
     */
    private int sourceId;

    /**
     * 目标数据host
     */
    private String targetHost;


    /**
     * 目标数据port
     */
    private String targetPort;

    /**
     * 目标数据类型
     */
    private String targetType;

    /**
     * 目标数据库
     */
    private String targetDatabase;

    /**
     * 目标数据schema
     */
    private String targetSchema;

    /**
     * 目标数据用户
     */
    private String targetUser;

    /**
     * 目标数据密码
     */
    private String targetPassword;

    /**
     * 目标数据信息id
     */
    private int targetId;
    /**
     * 同步列表
     */
    private List<Map<String, String>> syncList;


    @Override
    public boolean checkParameters() {
        return syncList != null && !syncList.isEmpty();
    }

    @Override
    public List<ResourceInfo> getResourceFilesList() {
        return new ArrayList<>();
    }
}

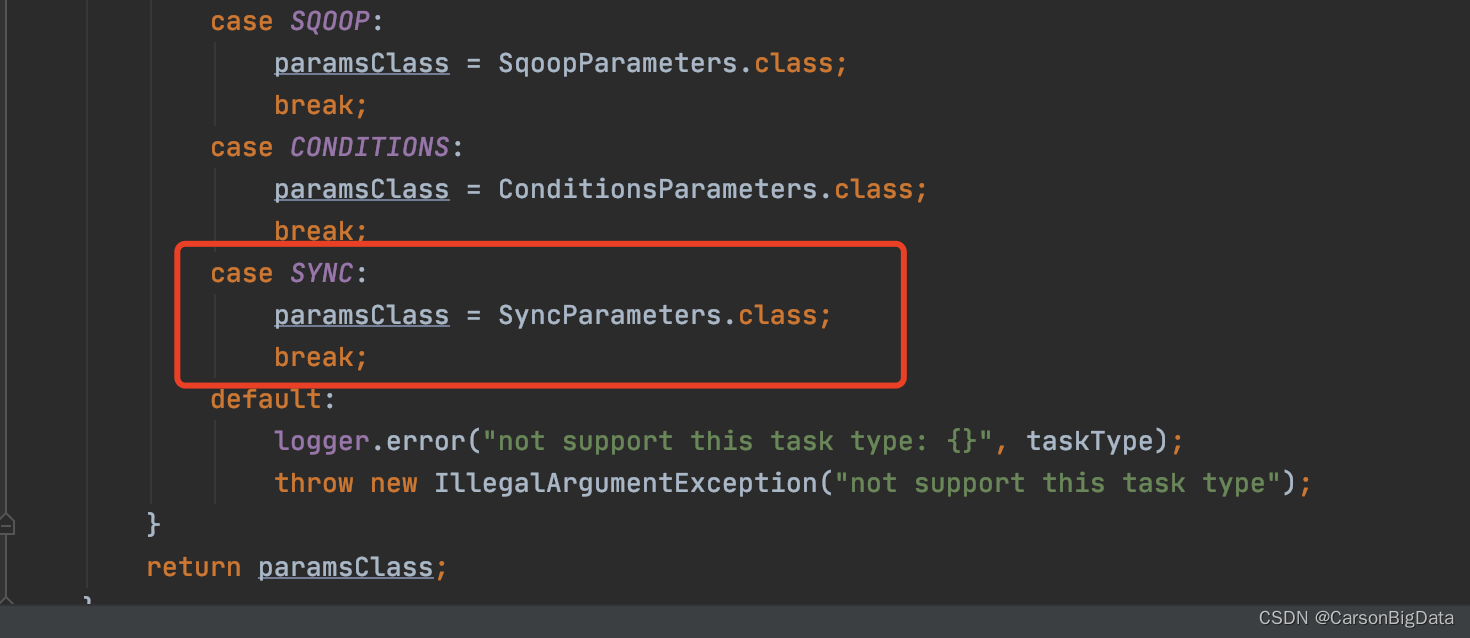

  3.  在 AbstractTask.java下新增类型DolphinScheduler二次开发

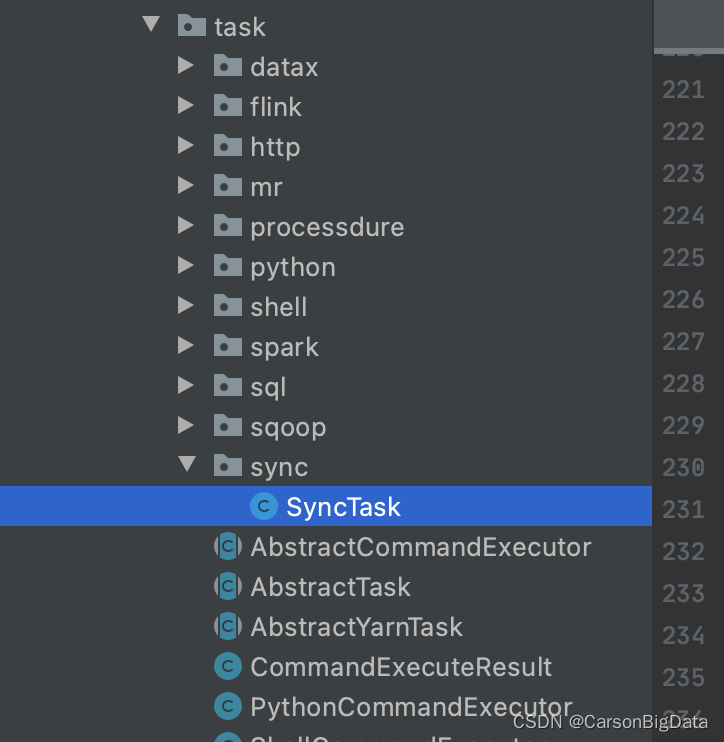

  4. 在worker文件夹下，找到task目录，新增sync文件夹，然后新建SyncTask.javaDolphinScheduler二次开发
  5.  SyncTask.java如下，可作为参考
package com.grgbanking.ds.datazone.server.worker.task.sync;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.grgbanking.ds.datazone.common.Constants;
import com.grgbanking.ds.datazone.common.task.AbstractParameters;
import com.grgbanking.ds.datazone.common.task.sync.SyncParameters;
import com.grgbanking.ds.datazone.common.utils.JSONUtils;
import com.grgbanking.ds.datazone.server.entity.TaskExecutionContext;
import com.grgbanking.ds.datazone.server.worker.config.WorkerConfig;
import com.grgbanking.ds.datazone.server.worker.task.AbstractTask;
import com.grgbanking.ds.datazone.service.bean.SpringApplicationContext;
import org.apache.commons.lang.StringUtils;
import org.slf4j.Logger;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.client.HttpClientErrorException;
import org.springframework.web.client.ResourceAccessException;
import org.springframework.web.client.RestTemplate;


public class SyncTask extends AbstractTask {

    /**
     * 数据同步参数
     */
    private SyncParameters syncParameters;

    /**
     * taskExecutionContext
     */
    private TaskExecutionContext taskExecutionContext;

    /**
     *  worker config
     */
    private final WorkerConfig workerConfig;

    /**
     * constructor
     *
     * @param taskExecutionContext taskExecutionContext
     * @param logger               logger
     */
    protected SyncTask(TaskExecutionContext taskExecutionContext, Logger logger) {
        super(taskExecutionContext, logger);

        this.taskExecutionContext = taskExecutionContext;
        this.workerConfig = SpringApplicationContext.getBean(WorkerConfig.class);
    }


    @Override
    public void init() {

        logger.info("sync task params {}", taskExecutionContext.getTaskParams());
        this.syncParameters = JSONUtils.parseObject(taskExecutionContext.getTaskParams(), SyncParameters.class);

        if (!syncParameters.checkParameters()) {
            throw new RuntimeException("sync task params is not valid");
        }
    }

    @Override
    public void handle() throws Exception {

        String threadLoggerInfoName = String.format(Constants.TASK_LOG_INFO_FORMAT, taskExecutionContext.getTaskAppId());
        Thread.currentThread().setName(threadLoggerInfoName);

        try{
            RestTemplate restTemplate = new RestTemplate();
            //创建请求头
            HttpHeaders headers = new HttpHeaders();
            headers.setContentType(MediaType.APPLICATION_JSON);
            headers.add("API_KEY", workerConfig.getApiKey());
            headers.add("API_SECRET", workerConfig.getApiSecret());
            int migrateTaskId = createTask(restTemplate);
            if(migrateTaskId == -1){
                setExitStatusCode(-1);
                throw new Exception("与数据同步服务器通讯失败");
            }

            long startTime = System.currentTimeMillis();
            while(true){

                int taskStatus = queryTask(restTemplate, migrateTaskId);
                //假设2为完成状态
                if(taskStatus == 2){
                    break;
                }
                if(System.currentTimeMillis() - startTime >= 3 * 60 * 1000){
                    exitStatusCode = -1;
                    throw new Exception("查询任务状态信息超时");
                }
                Thread.sleep(3000);
            }
            JSONObject logResult = queryLogMsg(restTemplate, migrateTaskId);
            setExitStatusCode(Constants.EXIT_CODE_SUCCESS);
            //处理日志信息
            //...
        } catch (Exception e){
            exitStatusCode = -1;
            throw e;
        }
    }

    @Override
    public AbstractParameters getParameters() {
        return syncParameters;
    }

    private int createTask(RestTemplate restTemplate){
        //返回创建的任务ID，用于查询任务状态信息
        JSONObject json=new JSONObject();
        json.put("destDetails",syncParameters.getTargetUrl());
        json.put("sourceDetails",syncParameters.getSourceUrl());
        try {
            String requestUrl = workerConfig.getApiUrl() + "/MigrateTask";
            ResponseEntity<String> responseEntity = restTemplate.postForEntity(requestUrl, json, String.class);
            String resultStr = responseEntity.getBody();
            JSONObject result = JSON.parseObject(resultStr, JSONObject.class);
            if(result.getBoolean("success")!=true){
                logger.error("服务通讯反馈的信息：{}", resultStr);
            }
            return result.getInteger("data");

        } catch (ResourceAccessException e) {
            logger.error(e.getMessage(), e);
            return -1;
        } catch (HttpClientErrorException e) {
            logger.error("调用异常", e);
            if (StringUtils.contains(e.getMessage(), "404")) {
                return -1;
            }
            return -1;
        } catch (Exception e) {
            logger.error(e.getMessage());
            return -1;
        }
    }

    private int queryTask(RestTemplate restTemplate, int migrateTaskId){
        try {
            String requestUrl = workerConfig.getApiUrl() + "/MigrateTask/" + migrateTaskId;
            ResponseEntity<String> responseEntity = restTemplate.getForEntity(requestUrl, String.class);
            String resultStr = responseEntity.getBody();
            JSONObject result = JSON.parseObject(resultStr, JSONObject.class);
            if(result.getBoolean("success")!=true){
                logger.error("服务通讯反馈的信息：{}", resultStr);
            }
//            return result.getInteger("data");
            return 2;

        } catch (ResourceAccessException e) {
            logger.error(e.getMessage(), e);
            return -1;
        } catch (HttpClientErrorException e) {
            logger.error("调用异常", e);
            if (StringUtils.contains(e.getMessage(), "404")) {
                return -1;
            }
            return -1;
        } catch (Exception e) {
            logger.error(e.getMessage());
            return -1;
        }
    }

    private JSONObject queryLogMsg(RestTemplate restTemplate, int migrateTaskId){
        try {
            String requestUrl = workerConfig.getApiUrl() + "/MigrateTask/log/" + migrateTaskId;
            ResponseEntity<String> responseEntity = restTemplate.getForEntity(requestUrl, String.class);
            String resultStr = responseEntity.getBody();
            JSONObject result = JSON.parseObject(resultStr, JSONObject.class);
            if(result.getBoolean("success")!=true){
                logger.error("服务通讯反馈的信息：{}", resultStr);
            }
//            return result.getInteger("data");
            return result;

        } catch (ResourceAccessException e) {
            logger.error(e.getMessage(), e);
            throw e;
        } catch (HttpClientErrorException e) {
            logger.error("调用异常", e);
            if (StringUtils.contains(e.getMessage(), "404")) {
                throw new RuntimeException("404");
            }
            throw e;
        } catch (Exception e) {
            logger.error(e.getMessage());
            throw e;
        }
    }
}

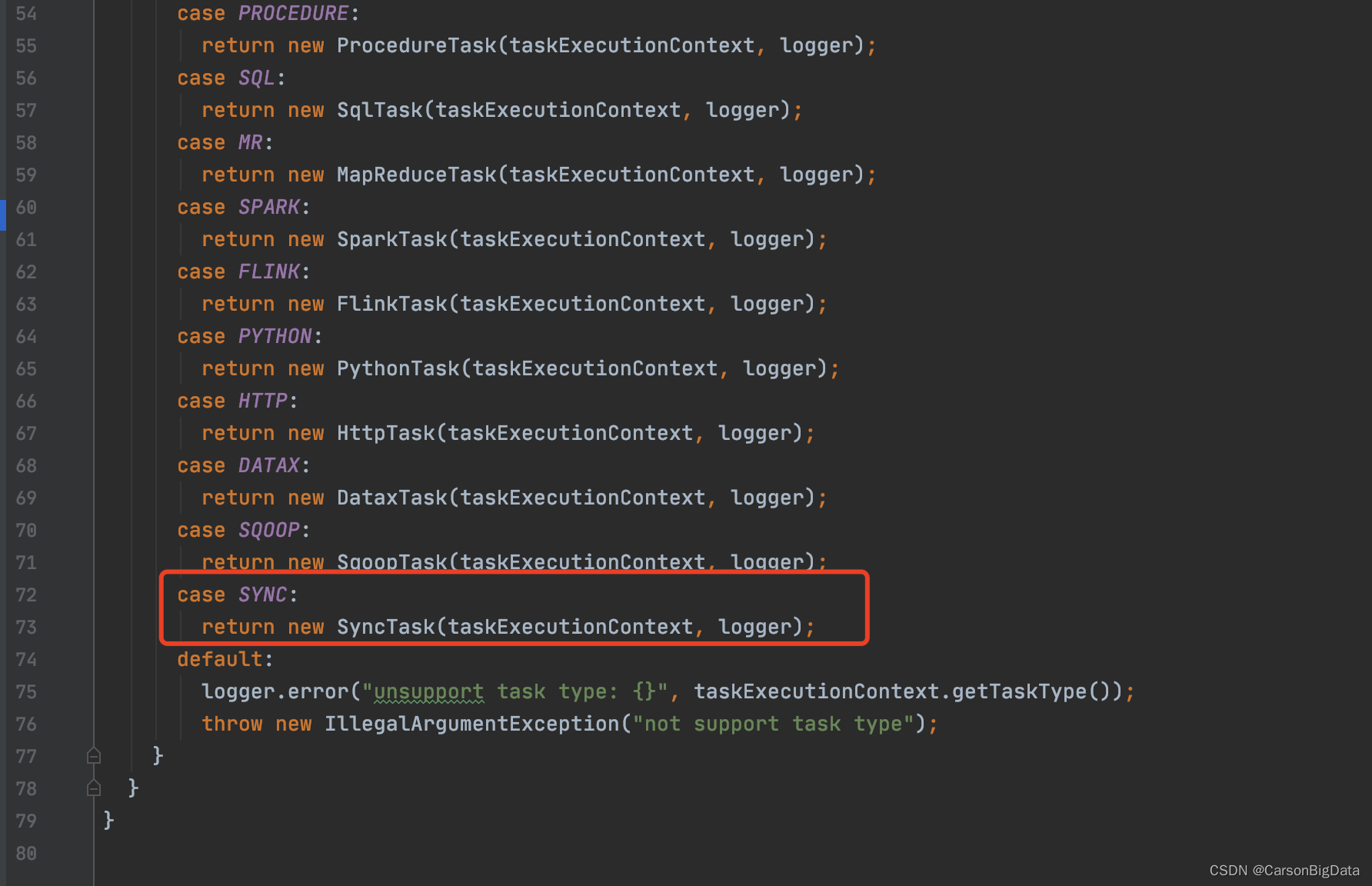

 6. 找到TaskManager.java，在里面新增任务类型

DolphinScheduler二次开发



2、登录授权修改，整合第三方认证中心

3、API整合nacos实现声明式服务调用

4、集成Python3 Python DataX的基础镜像

DockerFile：

FROM openjdk:8-jre-slim-buster

# 1. install command/library/software
# If install slowly, you can replcae debian's mirror with new mirror, Example:
RUN { \
 echo "deb http://mirrors.tuna.tsinghua.edu.cn/debian/ buster main contrib non-free"; \
 echo "deb http://mirrors.tuna.tsinghua.edu.cn/debian/ buster-updates main contrib non-free"; \
 echo "deb http://mirrors.tuna.tsinghua.edu.cn/debian/ buster-backports main contrib non-free"; \
 echo "deb http://mirrors.tuna.tsinghua.edu.cn/debian-security buster/updates main contrib non-free"; \
} > /etc/apt/sources.list

RUN apt-get update && \
    apt-get install -y --no-install-recommends tzdata dos2unix python3 python supervisor procps psmisc netcat sudo tini curl iputils-ping wget && \
    echo "Asia/Shanghai" > /etc/timezone && \
    rm -f /etc/localtime && \
    dpkg-reconfigure tzdata && \
    rm -rf /var/lib/apt/lists/* /tmp/* && \
    wget http://datax-opensource.oss-cn-hangzhou.aliyuncs.com/datax.tar.gz && \
    mkdir /opt/soft && \
    tar -zxvf datax.tar.gz -C /opt/soft && \
    rm -rf datax.tar.gz && \
    rm -rf /opt/soft/datax/plugin/writer/._* && \
    rm -rf /opt/soft/datax/plugin/reader/._*

制作完这个基础镜像，然后原先的openjdk:8-jre-slim-buster基础镜像改成你自定义的镜像。

5、统一数据源中心，新建嵌入Feign远程调用数据源中心保持强一致性，定时同步实现最终一致性。

遇到的坑：

1、master 读取配置文件失败导致启动失败

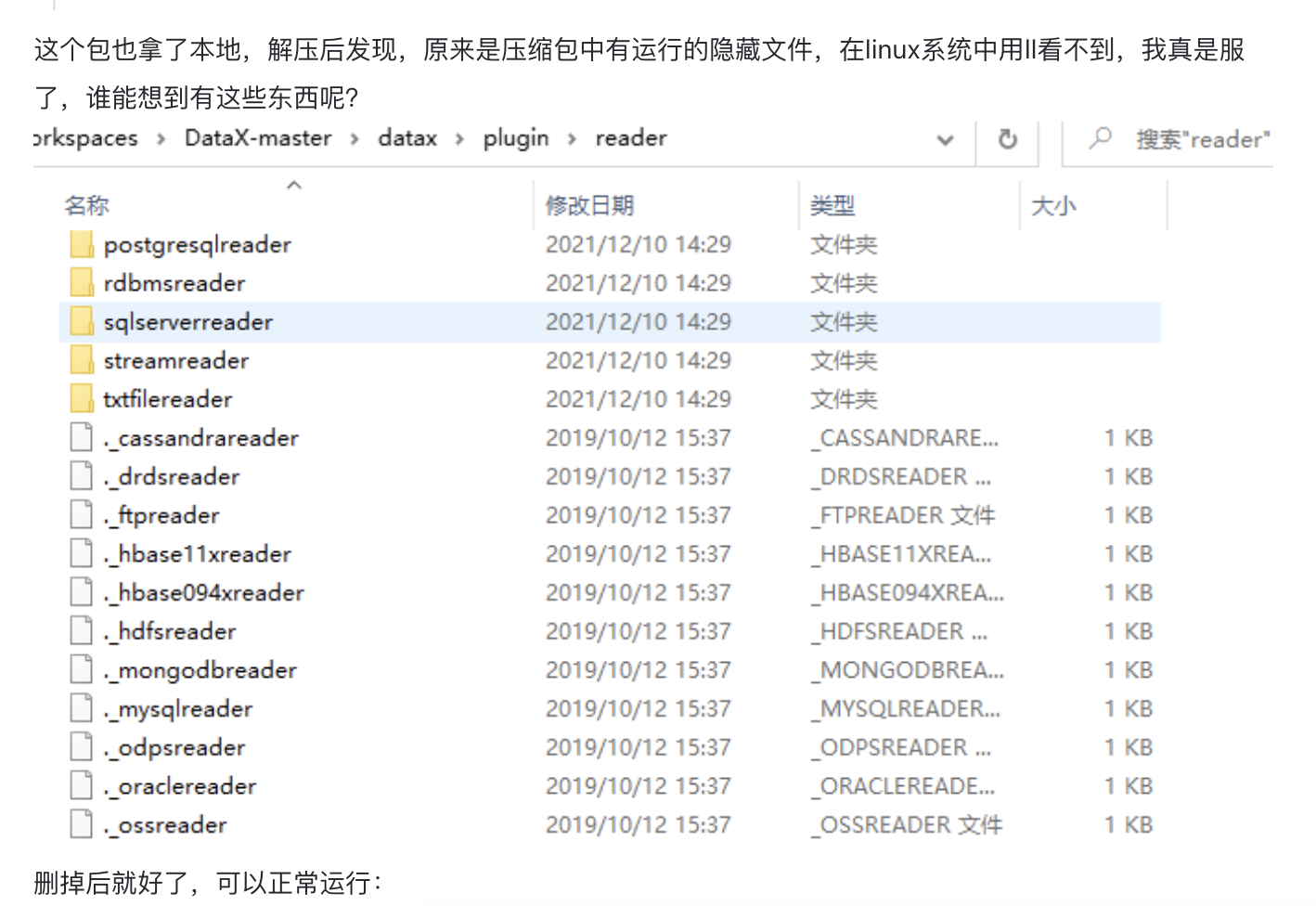

2、集成DataX遇到的坑

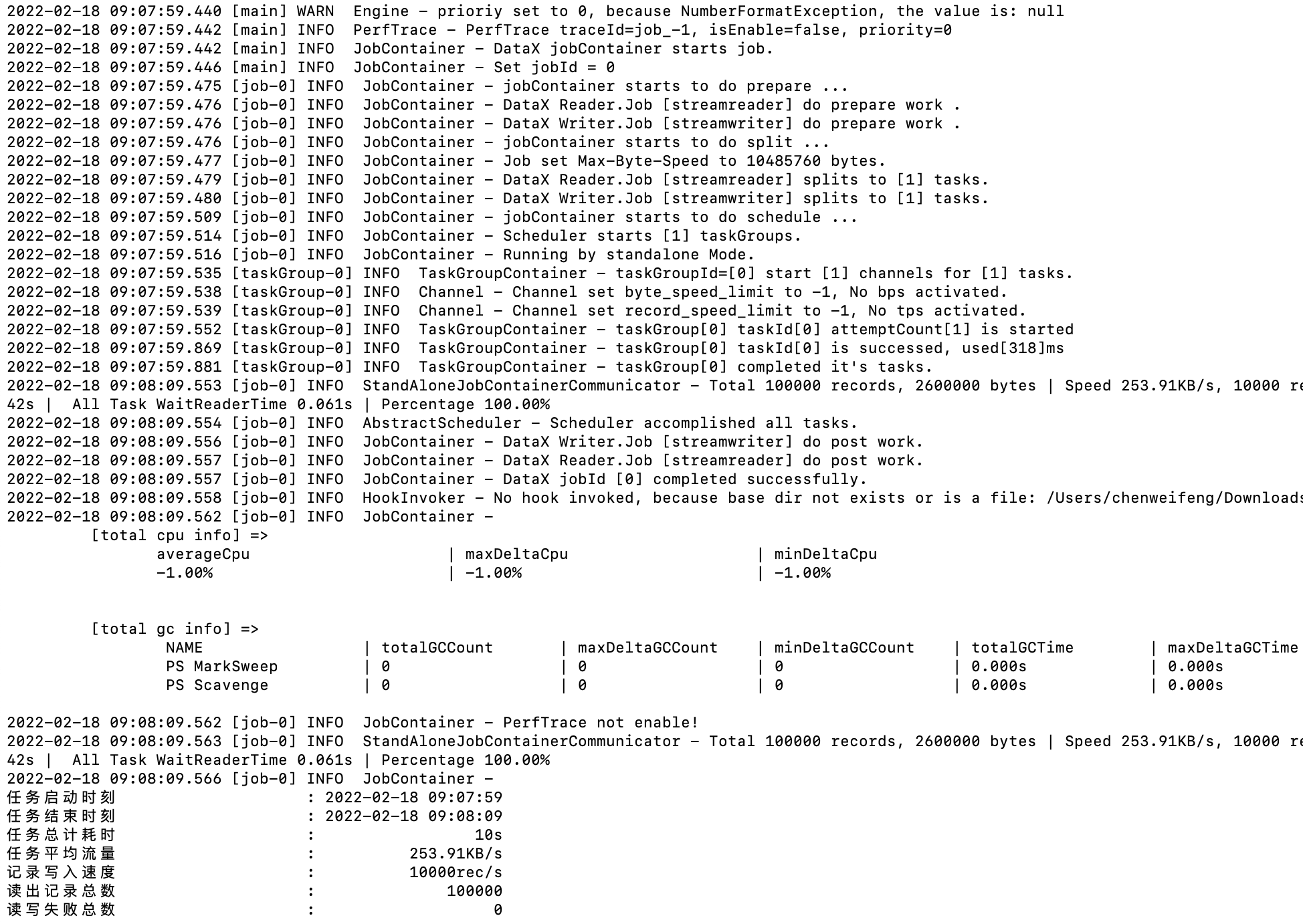

datax执行自测脚本异常：

2022-02-18 09:04:50.468 [main] WARN  ConfigParser - 插件[streamreader,streamwriter]加载失败，1s后重试... Exception:Code:[Common-00], Describe:[您提供的配置文件存在错误信息，请检查您的作业配置 .] - 配置信息错误，您提供的配置文件[/Users/chenweifeng/Downloads/datax/plugin/reader/.DS_Store/plugin.json]不存在. 请检查您的配置文件.
2022-02-18 09:04:51.486 [main] ERROR Engine -

经DataX智能分析,该任务最可能的错误原因是:
com.alibaba.datax.common.exception.DataXException: Code:[Common-00], Describe:[您提供的配置文件存在错误信息，请检查您的作业配置 .] - 配置信息错误，您提供的配置文件[/Users/chenweifeng/Downloads/datax/plugin/reader/.DS_Store/plugin.json]不存在. 请检查您的配置文件.
	at com.alibaba.datax.common.exception.DataXException.asDataXException(DataXException.java:26)
	at com.alibaba.datax.common.util.Configuration.from(Configuration.java:95)
	at com.alibaba.datax.core.util.ConfigParser.parseOnePluginConfig(ConfigParser.java:153)
	at com.alibaba.datax.core.util.ConfigParser.parsePluginConfig(ConfigParser.java:125)
	at com.alibaba.datax.core.util.ConfigParser.parse(ConfigParser.java:63)
	at com.alibaba.datax.core.Engine.entry(Engine.java:137)
	at com.alibaba.datax.core.Engine.main(Engine.java:204)

网上查了之后的说法是

DolphinScheduler二次开发

然后我就按照操作：

rm -rf ./plugin/reader/._*

rm -rf ./plugin/writer/._*

然后就成功了

DolphinScheduler二次开发

版权声明：本文内容由互联网用户自发贡献，该文观点仅代表作者本人。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容， 请发送邮件至 举报，一经查实，本站将立刻删除。

文章由极客之家整理，本文链接：https://www.bmabk.com/index.php/post/71357.html

赞 (0)
小半的头像小半
0 0

相关推荐

极客之家——专业性很强的中文编程技术网站，欢迎收藏到浏览器，订阅我们！
