文章目录

一、自定义监控进程
二、自定义监控日志
三、Zabbix自定义监控(主从延迟)

一、自定义监控进程

写脚本，脚本放在统一位置

修改被监控机zabbix_agentd.conf配置文件

UnxsafeParameters=1
UnserParameter=<key>,<command>

重启zabbix_agent

在web界面配置监控项和触发器

监控httpd

// 在客户端安装httpd
[root@centos ~]# yum -y install httpd
[root@centos ~]# systemctl start httpd
[root@centos ~]# ss -antl
State  Recv-Q  Send-Q   Local Address:Port    Peer Address:Port Process
LISTEN 0       128            0.0.0.0:22           0.0.0.0:*
LISTEN 0       128            0.0.0.0:10050        0.0.0.0:*
LISTEN 0       128                  *:80                 *:*
LISTEN 0       128               [::]:22              [::]:*

// 监控httpd进程
[root@centos ~]# ps -ef | grep httpd
root       36614       1  0 22:29 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     37392   36614  0 22:29 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     37393   36614  0 22:29 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     37395   36614  0 22:29 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     37396   36614  0 22:29 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
root       38613    1473  0 22:30 pts/0    00:00:00 grep --color=auto httpd

修改客户端zabbix_agentd文件zabbix_agentd.conf

[root@centos ~]# cd /usr/local/etc/
[root@centos etc]# ls
zabbix_agentd.conf  zabbix_agentd.conf.d
[root@centos etc]# vim zabbix_agentd.conf

# Default:
UnsafeUserParameters=1
UserParameter=check_process[*],/scripts/check_process.sh $1

// 修改完配置文件重启服务
[root@centos ~]# pkill zabbix
[root@centos ~]# zabbix_agentd

编写进程然后进行测试

// 创建并进入脚本目录
[root@centos ~]# mkdir /scripts
[root@centos ~]# cd /scripts/

// 编写一个脚本
[root@centos scripts]# vim check_process.sh
#!/bin/bash

web=$( ps -ef | grep -Ev "grep|$0" | grep -c "$1" )
if [ $web -eq 0 ];then
    echo '1'
else
    echo '0'
fi
[root@centos scripts]# chmod +x check_process.sh

返回服务端查看配置文件是否存在问题

[root@localhost ~]# zabbix_get -s 192.168.91.135 -k check_process[httpd]
0

[root@centos ~]# systemctl stop httpd.service

[root@localhost ~]# zabbix_get -s 192.168.91.135 -k check_process[httpd]
1

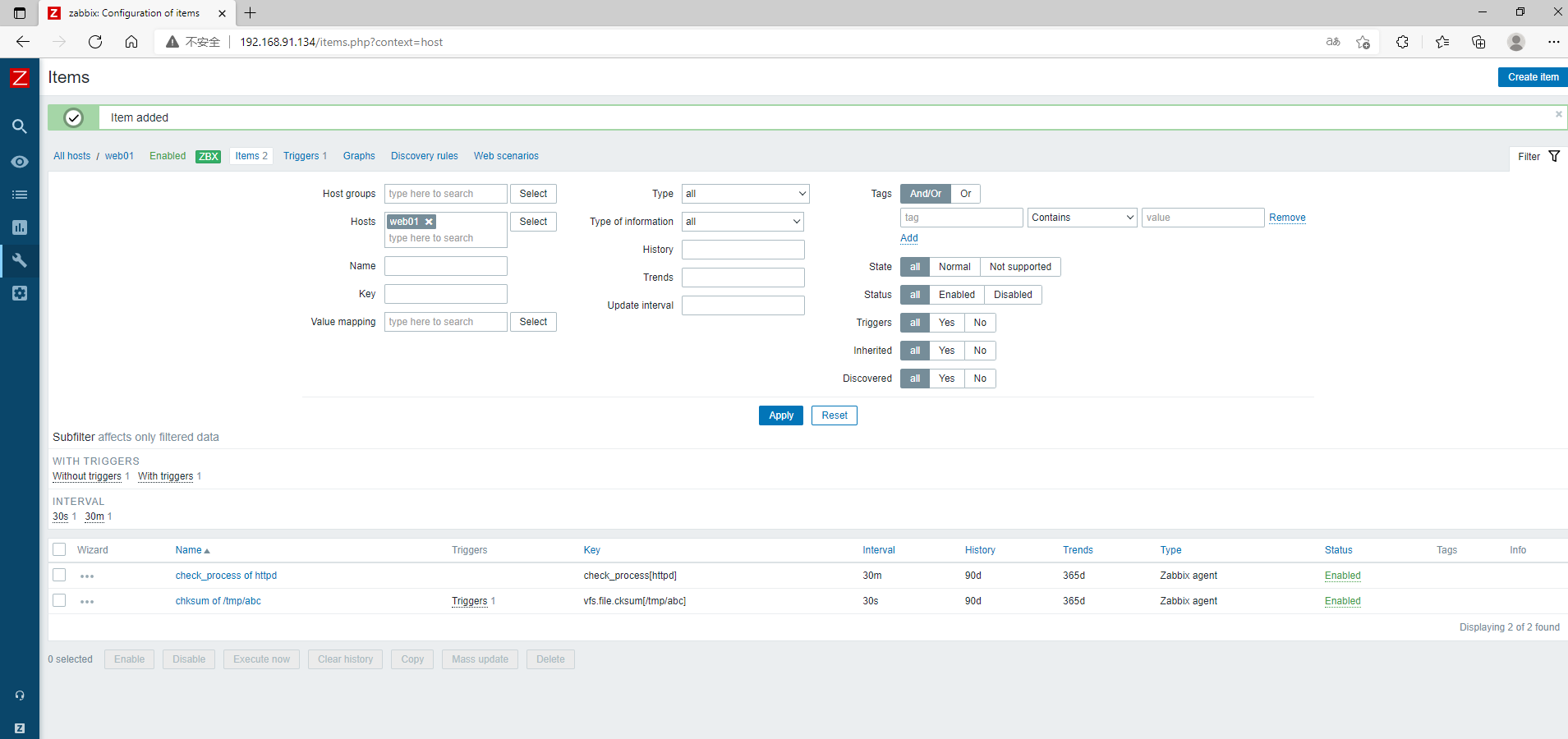

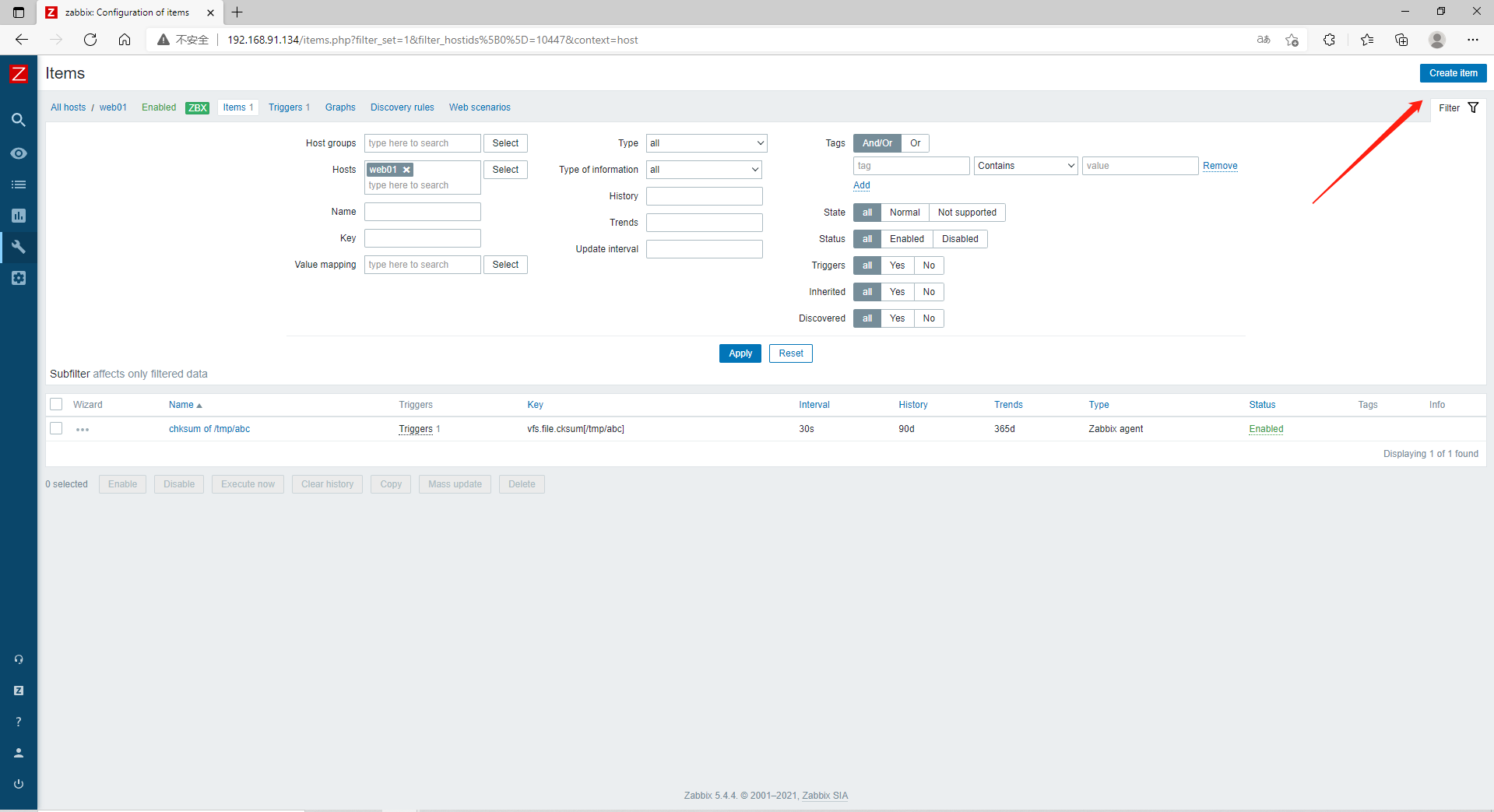

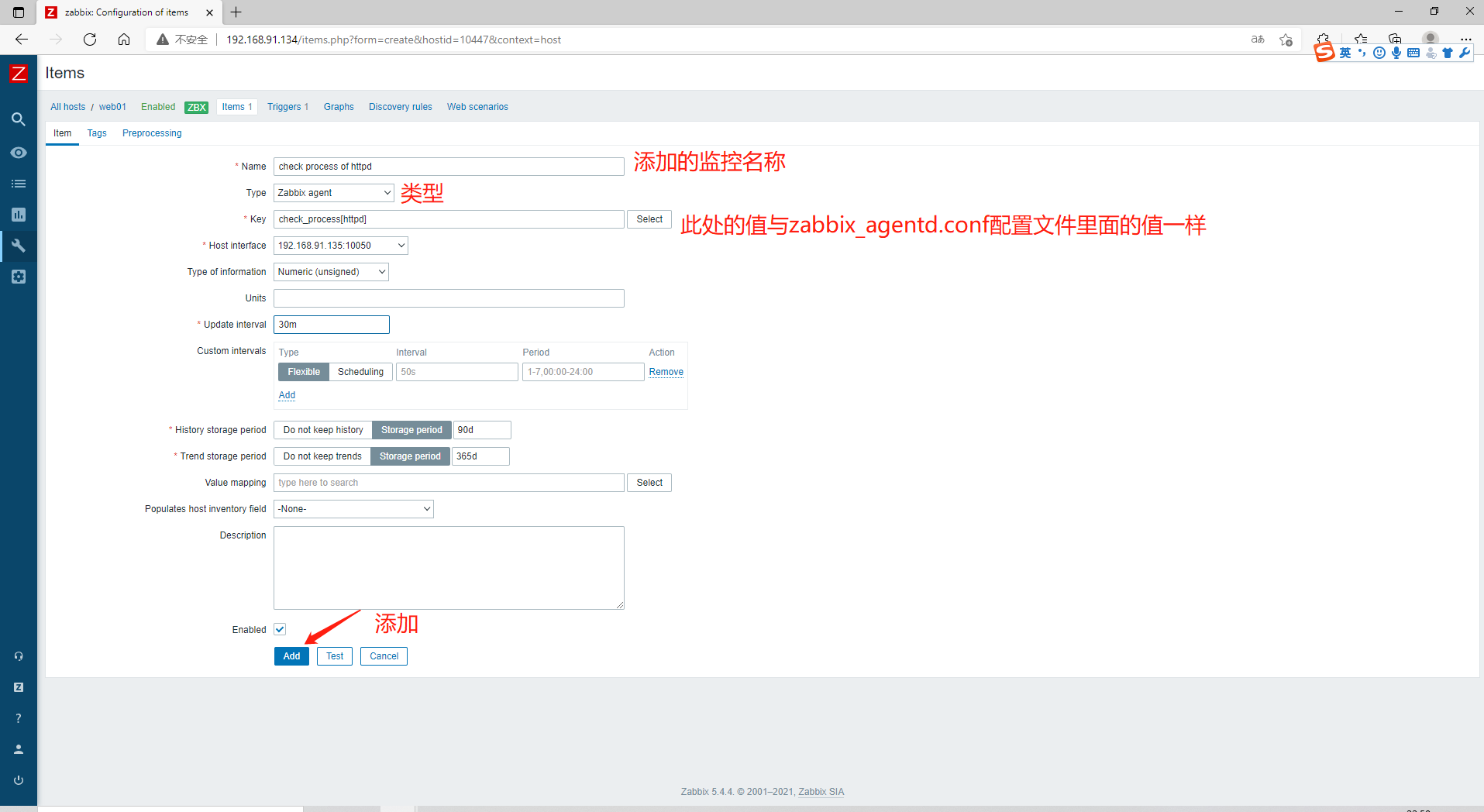

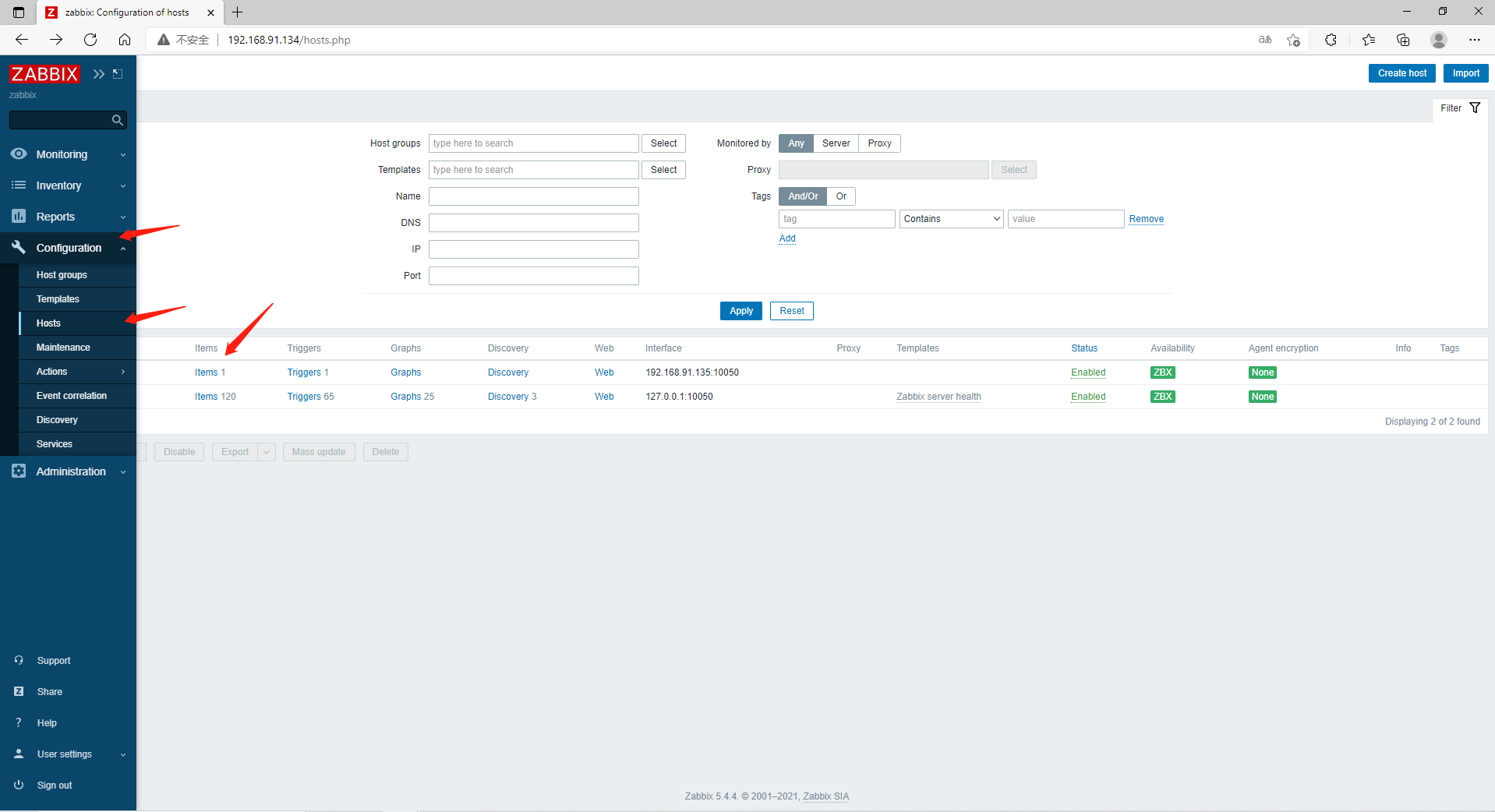

在zabbix网页上添加监控项

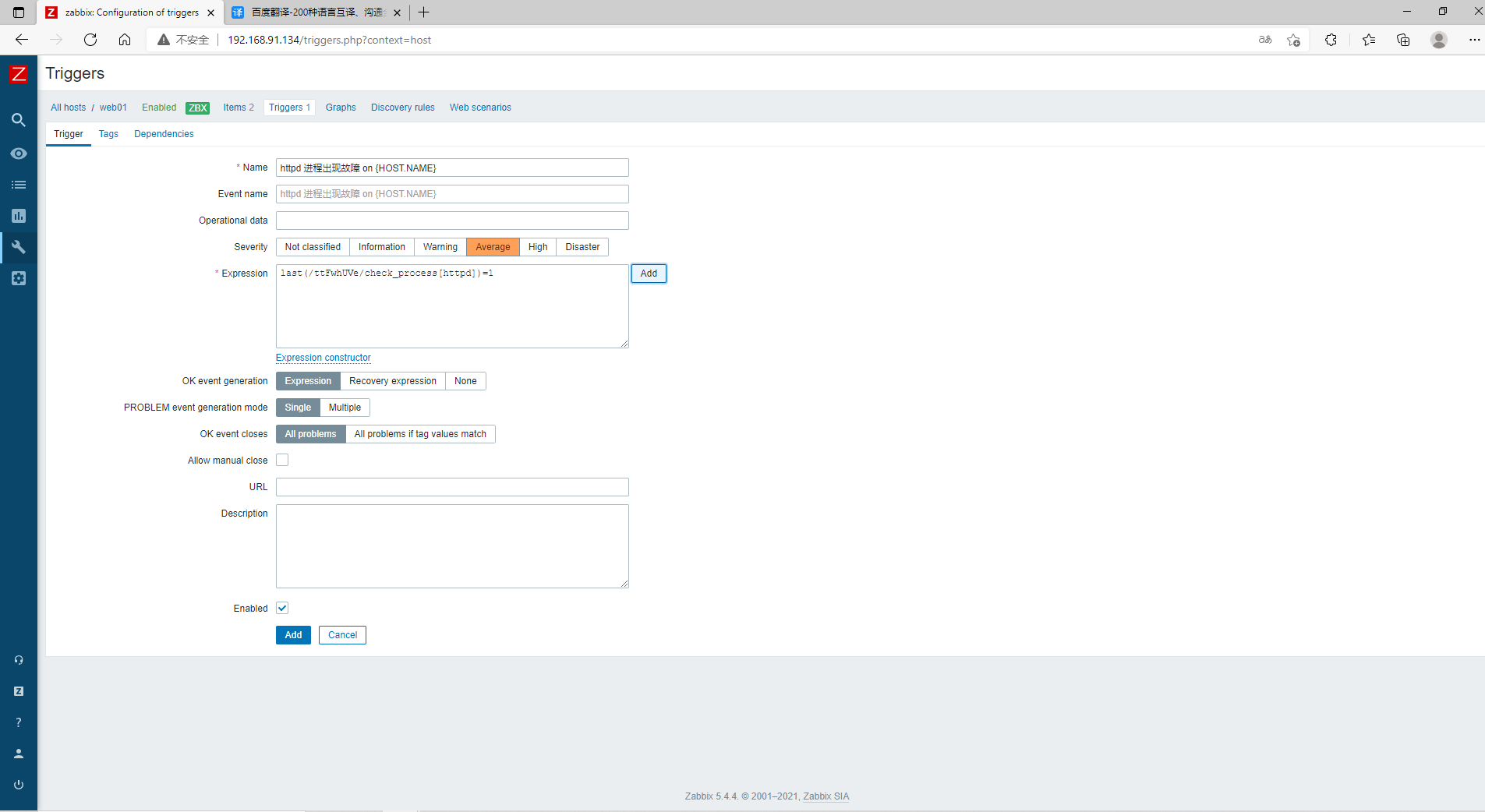

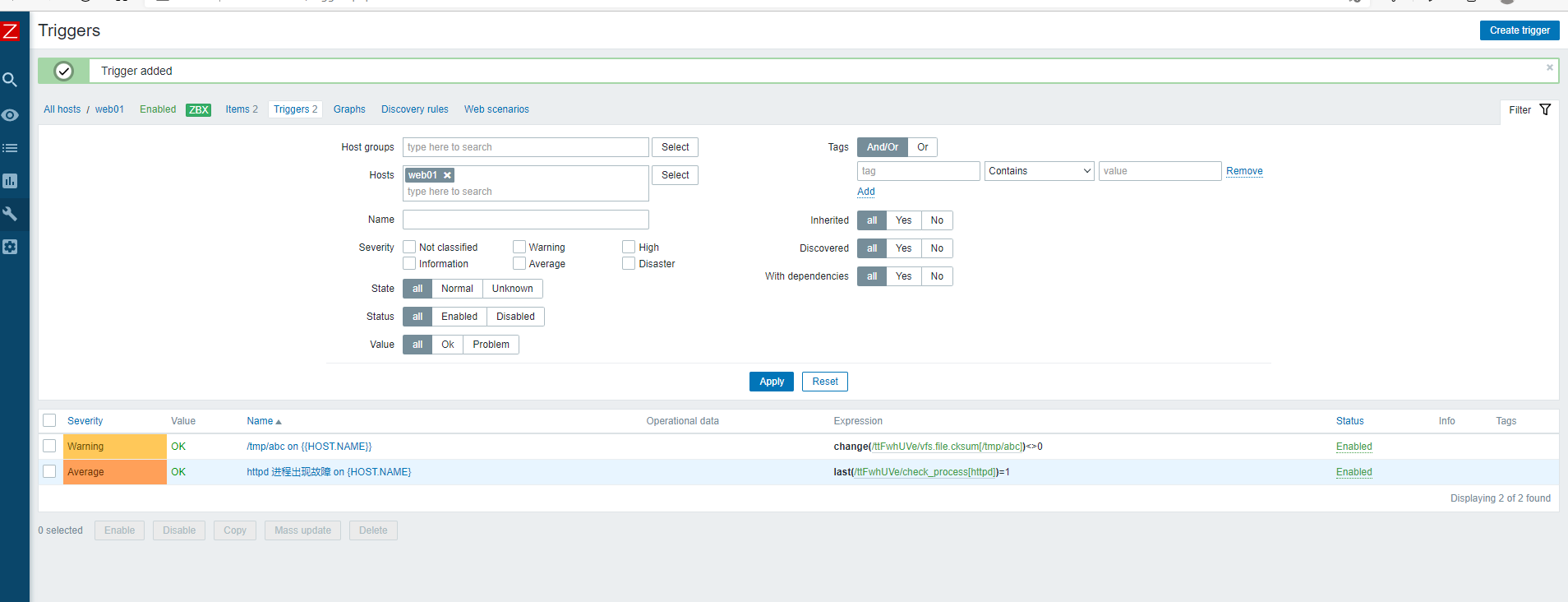

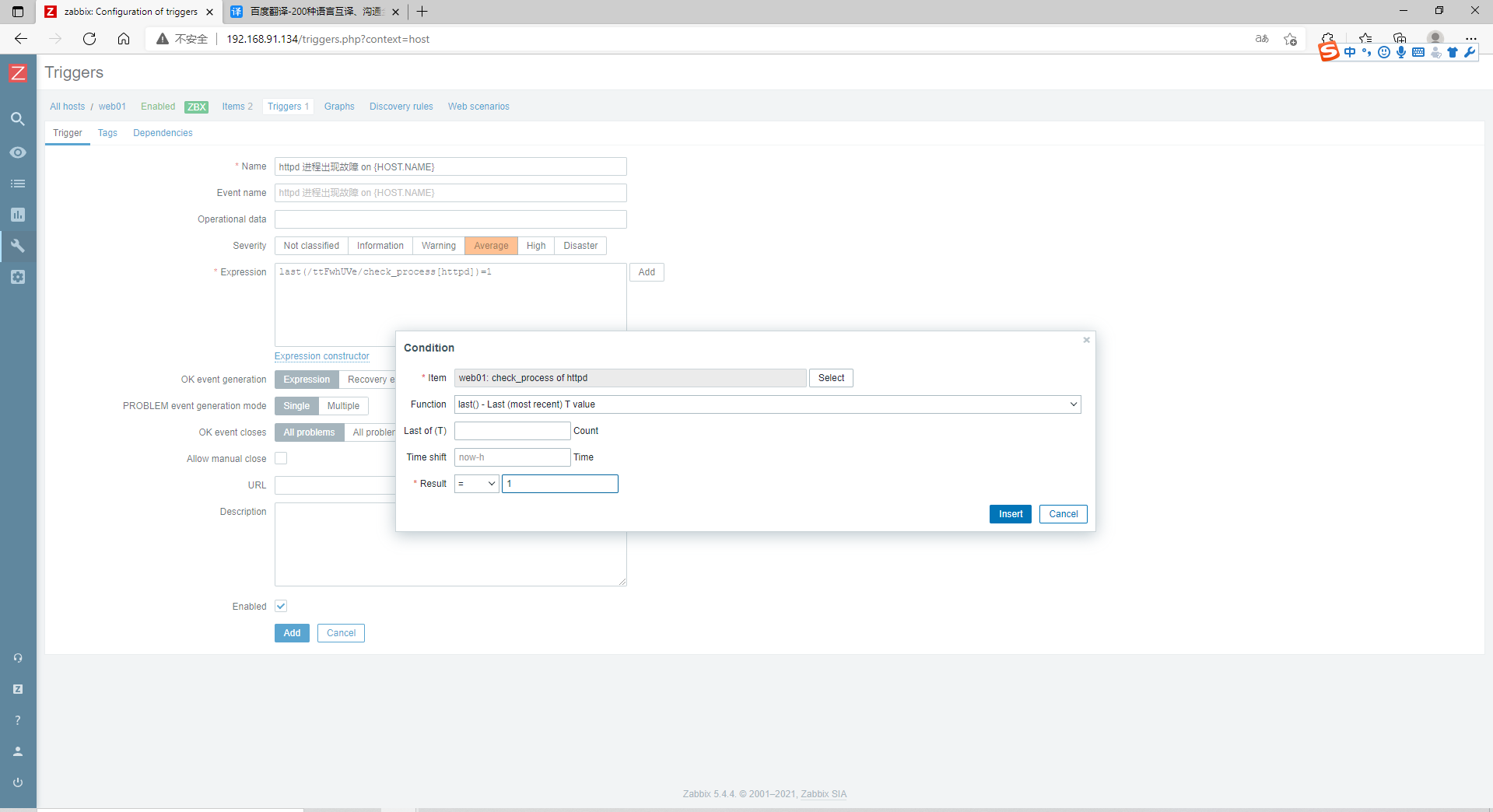

添加触发器

选择报警程度，填写名字，add添加

二、自定义监控日志

写脚本，脚本放在统一位置

修改被监控机zabbix_agentd.conf配置文件

UnxsafeParameters=1
UnserParameter=<key>,<command>

重启zabbix_agent
在web界面配置监控项和触发器

// 安装python3
[root@centos scripts]# yum -y install python3

// 授权
[root@centos scripts]# chmod 755 /var/log/httpd/

// 写脚本
[root@centos scripts]# vim log.py
[root@centos scripts]# cat log.py
#!/usr/bin/env python3

import sys
import re

def prePos(seekfile):
    global curpos
    try:
        cf = open(seekfile)
    except IOError:
        curpos = 0
        return curpos
    except FileNotFoundError:
        curpos = 0
        return curpos
    else:
        try:
            curpos = int(cf.readline().strip())
        except ValueError:
            curpos = 0
            cf.close()
            return curpos
        cf.close()
    return curpos

def lastPos(filename):
    with open(filename) as lfile:
        if lfile.readline():
            lfile.seek(0,2)
        else:
            return 0
        lastPos = lfile.tell()
    return lastPos

def getSeekFile():
    try:
        seekfile = sys.argv[2]
    except IndexError:
        seekfile = '/tmp/logseek'
    return seekfile

def getKey():
    try:
        tagKey = str(sys.argv[3])
    except IndexError:
        tagKey = 'Error'
    return tagKey

def getResult(filename,seekfile,tagkey):
    destPos = prePos(seekfile)
    curPos = lastPos(filename)

    if curPos < destPos:
        curpos = 0

    try:
        f = open(filename)
    except IOError:
        print('Could not open file: %s' % filename)
    except FileNotFoundError:
        print('Could not open file: %s' % filename)
    else:
        f.seek(destPos)

        while curPos != 0 and f.tell() < curPos:
            rresult = f.readline().strip()
            global result
            if re.search(tagkey, rresult):
                result = 1
                break
            else:
                result = 0

        with open(seekfile,'w') as sf:
            sf.write(str(curPos))
    finally:
        f.close()
    return result

if __name__ == "__main__":
    result = 0
    curpos = 0
    tagkey = getKey()
    seekfile = getSeekFile()
    result = getResult(sys.argv[1],seekfile,tagkey)
    print(result)

[root@centos scripts]# chmod +x log.py

[root@centos scripts]# ./log.py /var/log/httpd/error_log
0

//删除客户端的 logseek 文件
[root@centos scripts]# cd /tmp/
[root@centos tmp]# rm -rf logseek


// 手动添加Error再测试
[root@centos scripts]# echo "Error" >> /var/log/httpd/error_log
[root@centos scripts]# ./log.py /var/log/httpd/error_log
1

// 修改配置文件
[root@centos scripts]# vim /usr/local/etc/zabbix_agentd.conf
UserParameter=check_log[*],/scripts/log.py $1 $2 $3

// 重启zabbix服务
[root@centos scripts]# pkill zabbix
[root@centos scripts]# zabbix_agentd

[root@localhost ~]# zabbix_get -s 192.168.91.135 -k check_log[/var/log/httpd/error_log]
Traceback (most recent call last):
  File "/scripts/log.py", line 84, in <module>
    result = getResult(sys.argv[1],seekfile,tagkey)
  File "/scripts/log.py", line 73, in getResult
    with open(seekfile,'w') as sf:
PermissionError: [Errno 13] Permission denied: '/tmp/logseek'

// 删除 /tmp/logseek
[root@centos scripts]# rm -rf /tmp/logseek

[root@centos scripts]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.

[root@localhost ~]# zabbix_get -s 192.168.91.135 -k check_log[/var/log/httpd/error_log]
0

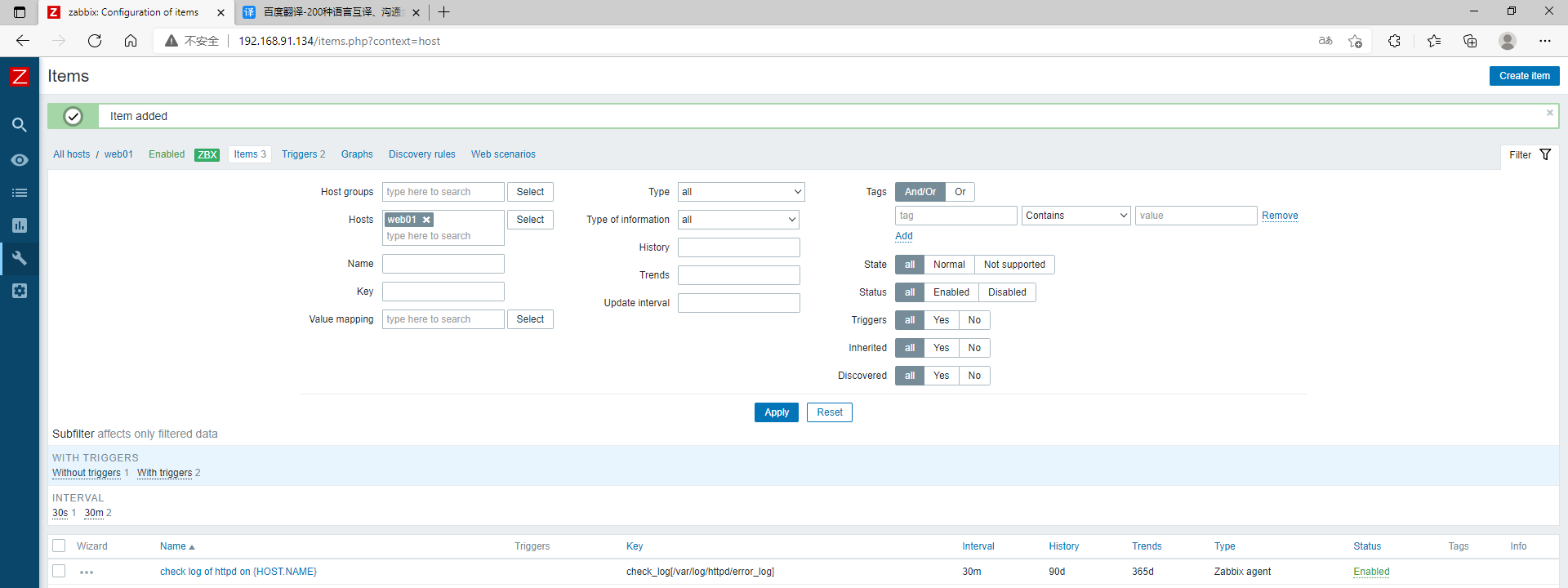

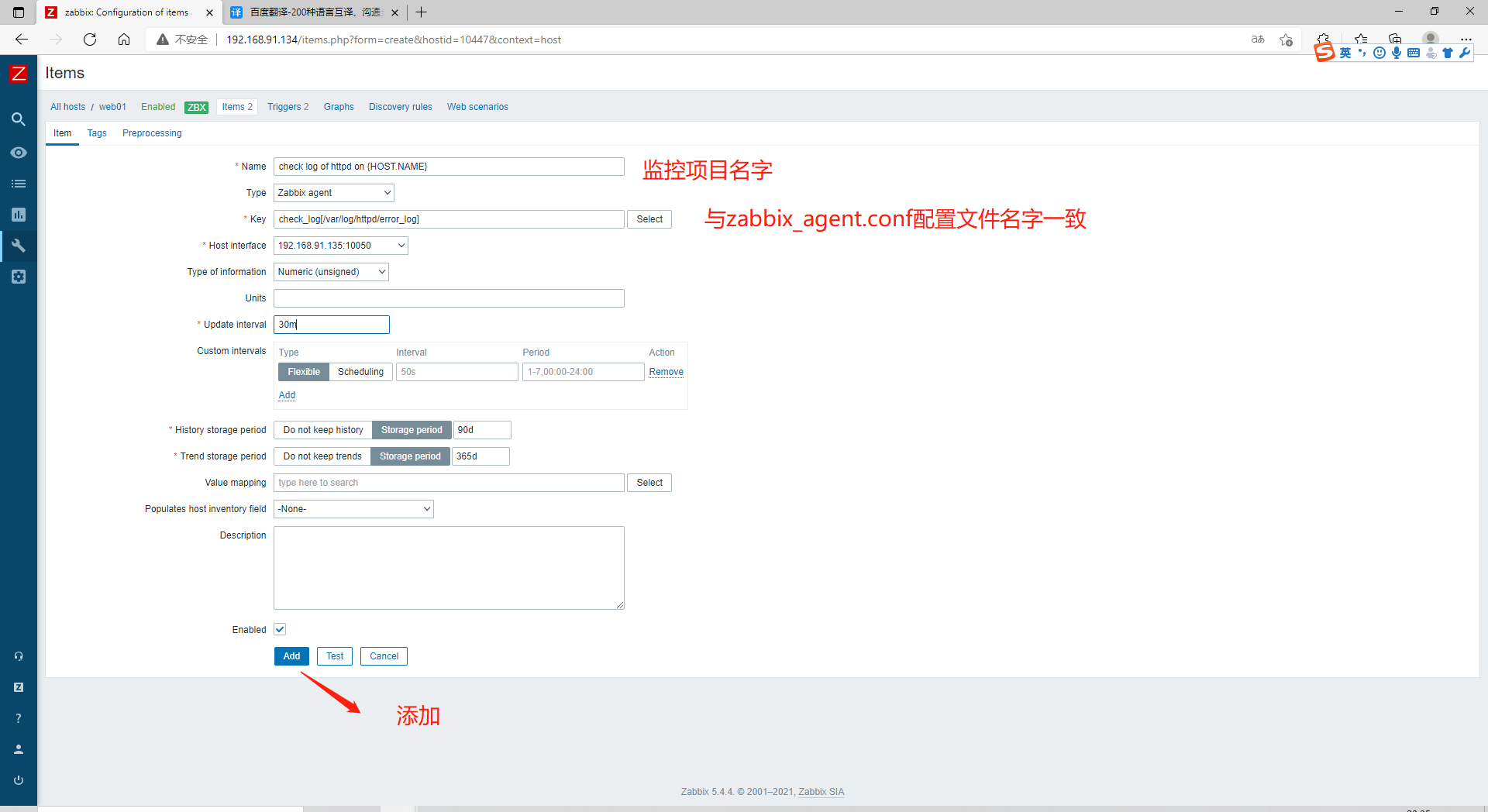

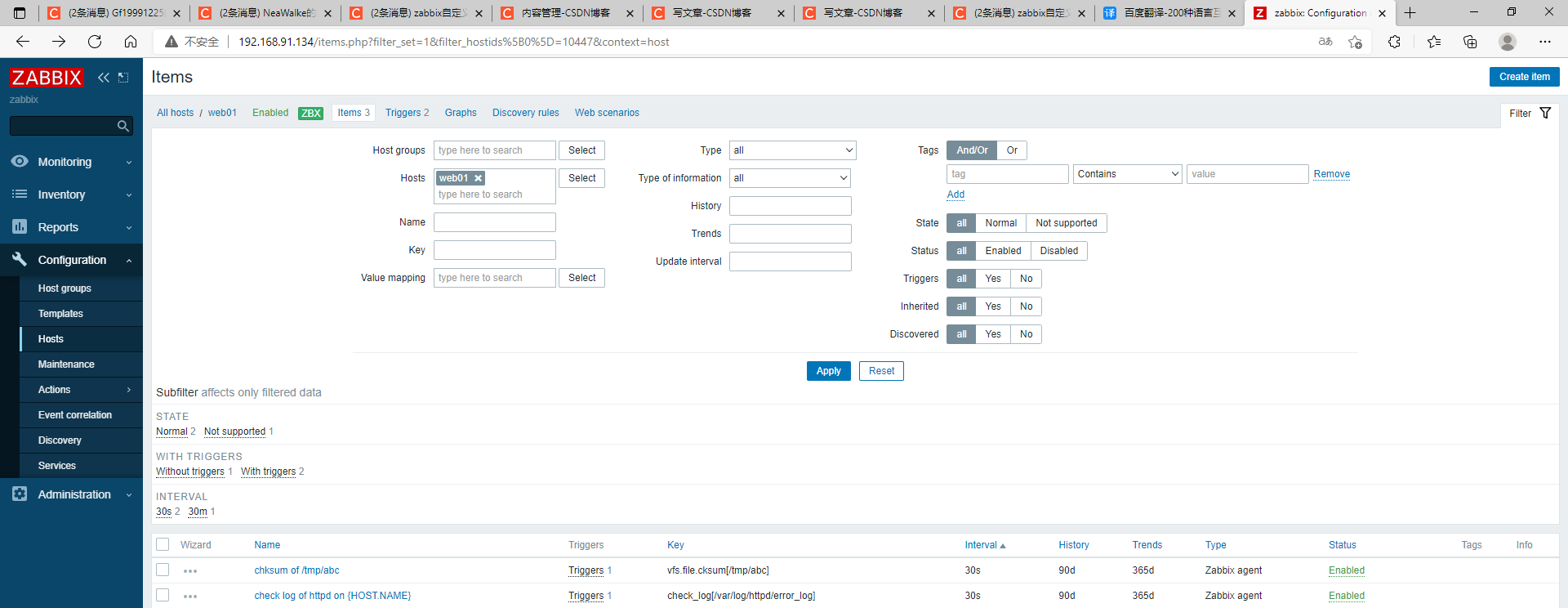

添加监控项

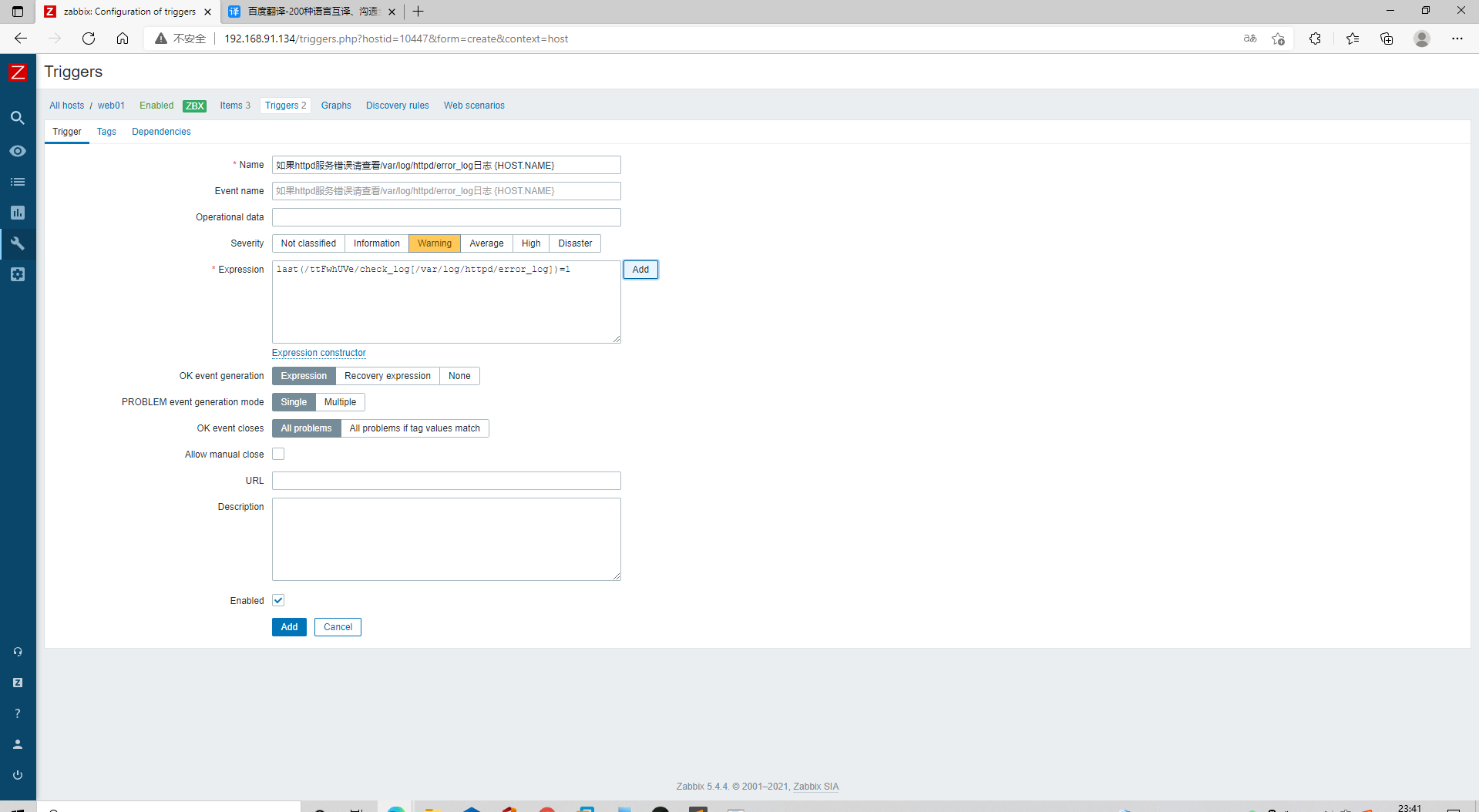

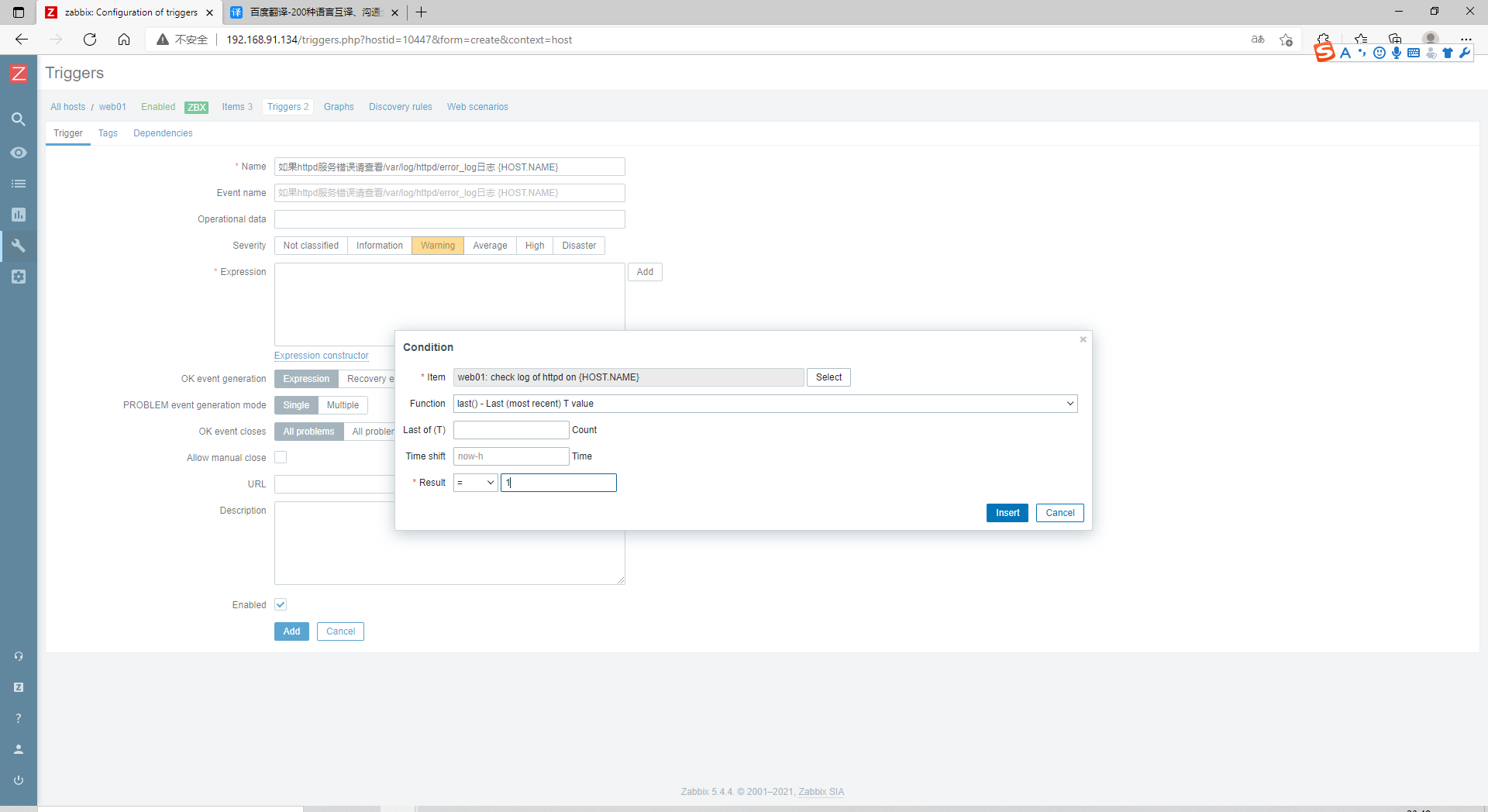

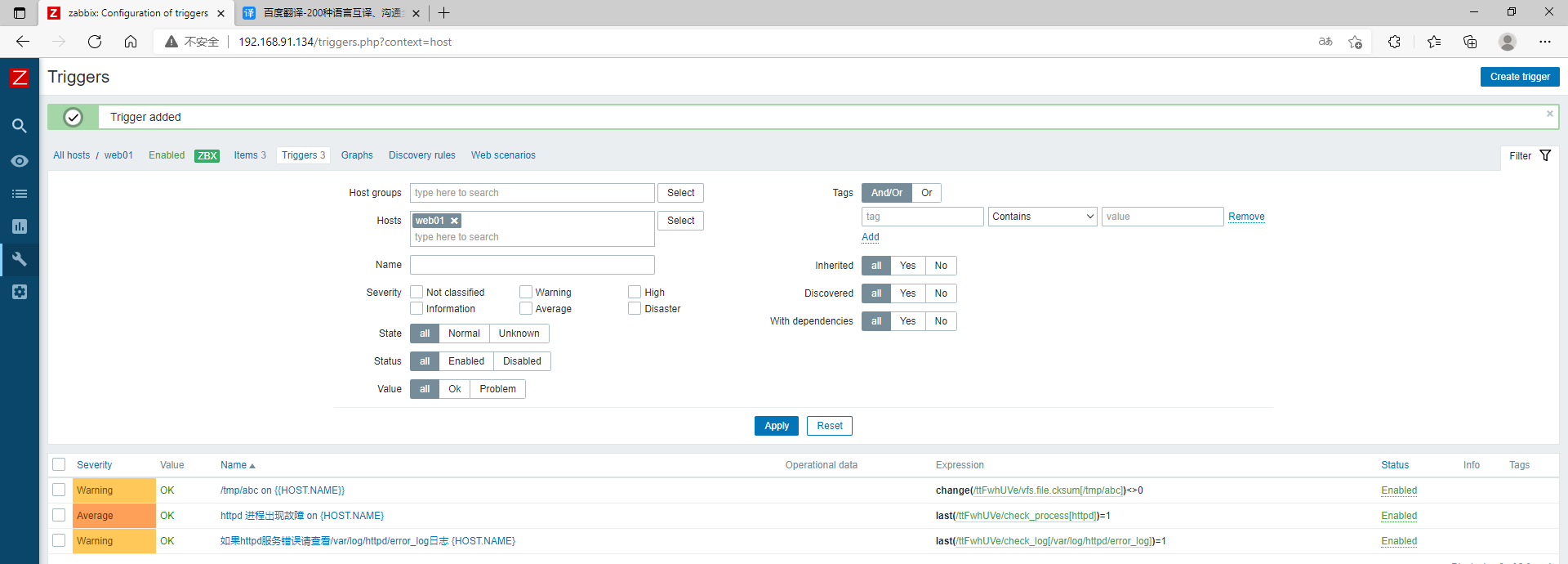

添加触发器

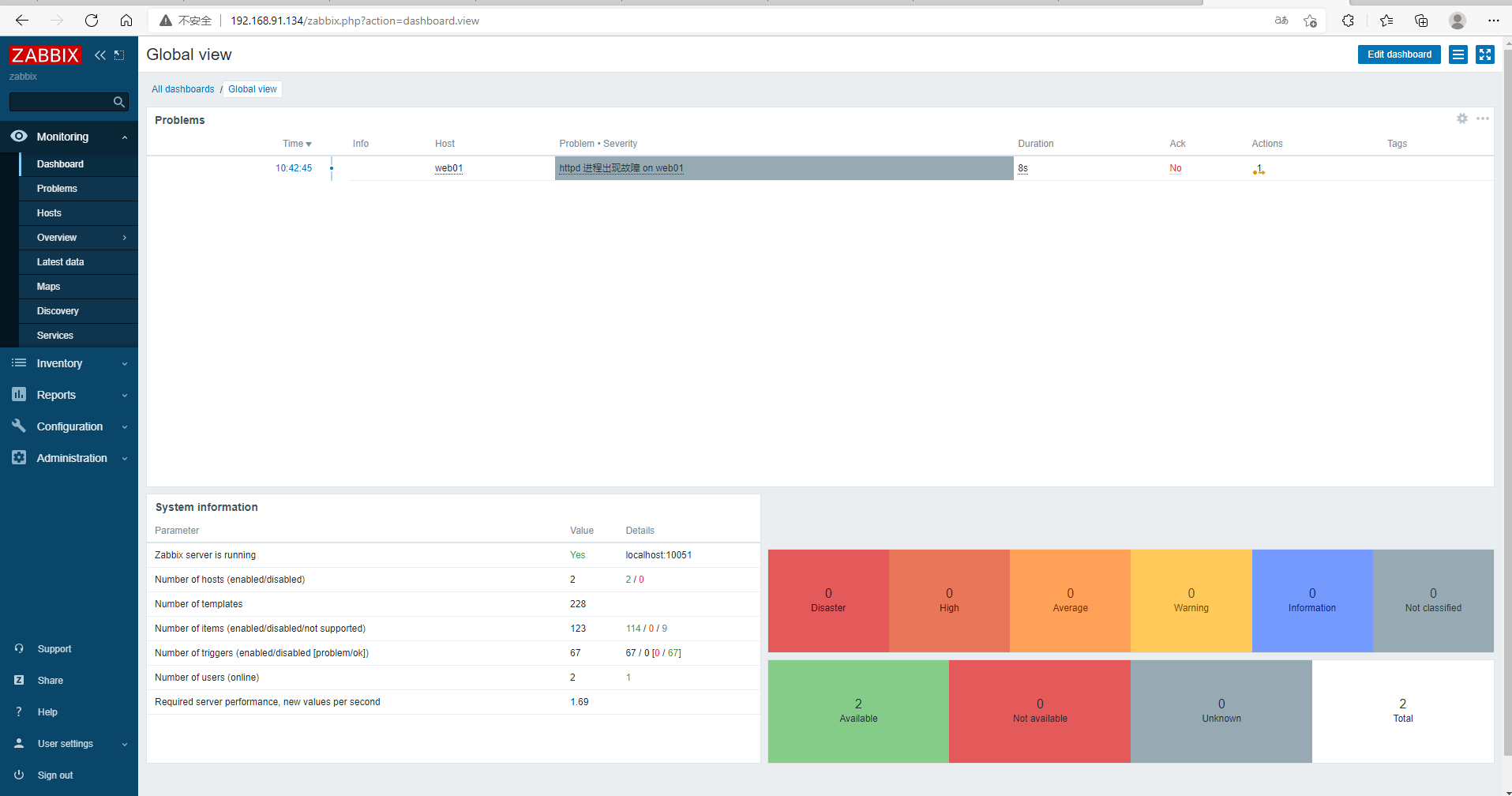

手动触发报警器

[root@centos scripts]# echo "Error" >> /var/log/httpd/error_log

三、Zabbix自定义监控(主从延迟)

部署MySQL主从

主机名	作用	IP
localhost	zabbix-server	192.168.91.134
centos	mysql-master	192.168.91.135
centos2	mysql-slave	192.168.91.137

主数据库从服务器上安装MySQL、关闭防火墙、修改配置文件、授权用户、查看状态、安装zabbix

数据库主服务器

[root@centos ~]# yum -y install mariadb mariadb-server

// 启动mysql服务
[root@centos ~]# systemctl start mariadb.service
[root@centos ~]# systemctl enable mariadb.service
Created symlink /etc/systemd/system/mysql.service → /usr/lib/systemd/system/mariadb.service.
Created symlink /etc/systemd/system/mysqld.service → /usr/lib/systemd/system/mariadb.service.
Created symlink /etc/systemd/system/multi-user.target.wants/mariadb.service → /usr/lib/systemd/system/mariadb.service.

// 数据库初始化
[root@centos ~]# mysql_secure_installation
Thanks for using MariaDB!

// 关闭防火墙和selinux
[root@centos ~]# systemctl stop firewalld.service
[root@centos ~]# systemctl disable firewalld.service
[root@centos ~]# sed -i s/SELINUX=enforing/SELINUX=disabled/g /etc/selinux/config
[root@centos ~]# setenforce 0
setenforce: SELinux is disabled

数据库从服务器

[root@centos2 ~]# yum -y install mariadb mariadb-server

[root@centos2 ~]# systemctl start mariadb.service
[root@centos2 ~]# systemctl enable mariadb.service
[root@centos2 ~]# mysql_secure_installation
Thanks for using MariaDB!
[root@centos2 ~]# systemctl start mariadb.service^C
[root@centos2 ~]# systemctl stop firewalld.service
[root@centos2 ~]# systemctl disable firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@centos2 ~]# sed -i s/SELINUX=enforing/SELINUX=disabled/g /etc/selinux/config
[root@centos2 ~]# setenforce 0

修改配置文件

数据库主服务器：

[root@centos ~]# vim /etc/my.cnf.d/mariadb-server.cnf

// 添加内容
[mysqld]
log_bin=mysql-bin     //开启二进制日志
server_id=1           //服务id号，不可从复，值为0时则表示拒绝服务器连接

// 重启服务
[root@centos ~]# systemctl restart mariadb.service

数据库从服务器：

[root@centos2 ~]# vim /etc/my.cnf.d/mariadb-server.cnf
// 添加内容
[mysqld]
server_id=2
relay_log=myrelay

[root@centos2 ~]# systemctl restart mariadb.service

创建用户并授权，让从服务可以登陆主服务器
数据库主服务器：

[root@centos ~]# mysql -uroot -p123456
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 9
Server version: 10.3.28-MariaDB-log MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

// 创建用户
MariaDB [(none)]> GRANT REPLICATION SLAVE ON *.* TO 'gf1'@'%' IDENTIFIED BY 'gf1123';
Query OK, 0 rows affected (0.000 sec)

// 刷新权限
MariaDB [(none)]> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> show master status;
+------------------+----------+--------------+------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000002 |      757 |              |                  |
+------------------+----------+--------------+------------------+
1 row in set (0.001 sec)

登陆到从服务器的数据库，在数据库中配置主服务器的信息

[root@centos2 ~]# mysql -uroot -p123
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 10
Server version: 10.3.28-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> CHANGE MASTER TO MASTER_HOST='192.168.91.135',MASTER_PORT=3306,MASTER_USER='gf1',MASTER_PASSWORD='gf1123';
Query OK, 0 rows affected (0.010 sec)

MariaDB [(none)]> START SLAVE;
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> SHOW SLAVE STATUS \G
*************************** 1. row ***************************
                Slave_IO_State: Waiting for master to send event
                   Master_Host: 192.168.91.135
                   Master_User: gf1
                   Master_Port: 3306
                 Connect_Retry: 60
               Master_Log_File: mysql-bin.000002
           Read_Master_Log_Pos: 757
                Relay_Log_File: myrelay.000003
                 Relay_Log_Pos: 1056
         Relay_Master_Log_File: mysql-bin.000002
              Slave_IO_Running: Yes
             Slave_SQL_Running: Yes
               Replicate_Do_DB:
           Replicate_Ignore_DB:
            Replicate_Do_Table:
        Replicate_Ignore_Table:
       Replicate_Wild_Do_Table:
   Replicate_Wild_Ignore_Table:
                    Last_Errno: 0
                    Last_Error:
                  Skip_Counter: 0
           Exec_Master_Log_Pos: 757
               Relay_Log_Space: 1728
               Until_Condition: None
                Until_Log_File:
                 Until_Log_Pos: 0
            Master_SSL_Allowed: No
            Master_SSL_CA_File:
            Master_SSL_CA_Path:
               Master_SSL_Cert:
             Master_SSL_Cipher:
                Master_SSL_Key:
         Seconds_Behind_Master: 0
 Master_SSL_Verify_Server_Cert: No
                 Last_IO_Errno: 0
                 Last_IO_Error:
                Last_SQL_Errno: 0
                Last_SQL_Error:
   Replicate_Ignore_Server_Ids:
              Master_Server_Id: 1
                Master_SSL_Crl:
            Master_SSL_Crlpath:
                    Using_Gtid: No
                   Gtid_IO_Pos:
       Replicate_Do_Domain_Ids:
   Replicate_Ignore_Domain_Ids:
                 Parallel_Mode: conservative
                     SQL_Delay: 0
           SQL_Remaining_Delay: NULL
       Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it
              Slave_DDL_Groups: 3
Slave_Non_Transactional_Groups: 0
    Slave_Transactional_Groups: 0
1 row in set (0.000 sec)

从服务器安装zabbix

下载zabbix软件包、解压、创建zabbix用户、安装依赖包、编译安装

[root@centos2 src]# wget https://cdn.zabbix.com/zabbix/sources/stable/5.4/zabbix-5.4.4.tar.gz

[root@centos2 src]# ll
total 23700
drwxr-xr-x. 2 root root        6 May 19  2020 debug
drwxr-xr-x. 2 root root        6 May 19  2020 kernels
-rw-r--r--. 1 root root 24266079 Aug 30 16:23 zabbix-5.4.4.tar.gz

[root@centos2 src]# tar xf zabbix-5.4.4.tar.gz
[root@centos2 src]# useradd -r -M -s /sbin/nologin zabbix
[root@sql-slave src]# yum -y install net-snmp-devel libevent-devel make gcc gcc-c++

[root@centos2 src]# cd zabbix-5.4.4
[root@centos2 zabbix-5.4.4]# ./configure --enable-agent
[root@centos2 zabbix-5.4.4]# make install

// 更改zabbix配置文件
[root@centos2 ~]# vim /etc/zabbix_agentd.conf
Server=192.168.91.135
ServerActive=192.168.91.135
Hostname=192.168.91.137

编写脚本文件
指定key和脚本位置
/修改配置文件，让key可以执行脚本识别MySQL状态

[root@centos2 scripts]# vim /etc/zabbix_agentd.conf
...
UnsafeUserParameters=1
...
//在文件末尾添加
UserParameter=check_replication,/scripts/check_replication.sh

// 杀死进程重新启动
[root@centos2 scripts]# pkill zabbix_agentd
[root@centos2 scripts]# zabbix_agentd
[root@cetos2 ~]# mysql -uroot -p123
//创建一个zabbix的用户，并设置权限只读和密码
MariaDB [(none)]> grant select on *.* to 'zabbix'@'localhost' identified by 'zabbix';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> grant SUPER, REPLICATION CLIENT on *.* to 'zabbix'@'localhost' identified by 'zabbix';
Query OK, 0 rows affected (0.001 sec)

//刷新权限
MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.000 sec)

[root@centos2 ~]#  mkdir /scripts
[root@centos2 ~]#  cd /scripts
[root@centos2 scripts]# vim check_replication.sh
#!/bin/bash

count=$(mysql -uzabbix -pzabbix -e 'show slave status\G' | grep '_Running' | grep -c 'Yes')

if [ $count -ne 2 ];then
        echo '1'
else
        echo '0'
fi

[root@centos2 scripts]# chmod +x check_replication.sh
// 测试脚本
[root@centos2 scripts]# ./check_replication.sh
0
// 在到zabbix服务端测试
[root@localhost ~]# zabbix_get -s 192.168.91.137 -k check_replication
0
