Docker安装rocketMQ集群之挂载方式安装

小半 • • 后端开发 • 阅读 217

导读：本篇文章讲解 Docker安装rocketMQ集群之挂载方式安装，希望对大家有帮助，欢迎收藏，转发！站点地址：www.bmabk.com

本人是在一台虚拟机上搭建的，如果是生产部署请做相应的修改！！！

1、创建挂载目录

[root@bogon ~]# mkdir -p /data/rocketmq/{logs-nameserver-m,logs-nameserver-s,logs-a,logs-a-s,logs-b,logs-b-s,store-a,store-a-s,store-b,store-b-s,conf}

2、对这些创建的文件授权（注意是所有的这些创建的文件，包括对应的配置文件！！！）

chmod 777 对应的文件名称

 3、创建配置文件

broker-a.conf

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#所属集群名字，同一个集群名字相同
brokerClusterName=rocketmq-cluster
#broker名字
brokerName=broker-a
#0表示master >0 表示slave
brokerId=0
#删除文件的时间点，凌晨4点
deleteWhen=04
#文件保留时间 默认是48小时
fileReservedTime=168
#异步复制Master
brokerRole=ASYNC_MASTER
#刷盘方式，ASYNC_FLUSH=异步刷盘，SYNC_FLUSH=同步刷盘
flushDiskType=ASYNC_FLUSH
#Broker 对外服务的监听端口
listenPort=10911 端口号对应docker启动时候的端口号
#nameServer地址，这里nameserver是单台，如果nameserver是多台集群的话，就用分号分割（即namesrvAddr=ip1:port1;ip2:port2;ip3:port3）
namesrvAddr=192.168.139.156:9876;192.168.139.156:9877
#每个topic对应队列的数量，默认为4，实际应参考consumer实例的数量，值过小不利于consumer负载均衡
defaultTopicQueueNums=8
#是否允许 Broker 自动创建Topic，生产建议关闭
autoCreateTopicEnable=true
#是否允许 Broker 自动创建订阅组，生产建议关闭
autoCreateSubscriptionGroup=true
#设置BrokerIP
brokerIP1=192.168.139.156

broker-b.conf

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#所属集群名字
brokerClusterName=rocketmq-cluster
#broker名字，注意此处不同的配置文件填写的不一样  例如：在a.properties 文件中写 broker-a  在b.properties 文件中写 broker-b
brokerName=broker-b
#0 表示 Master，>0 表示 Slave
brokerId=0
#删除文件时间点，默认凌晨 4点
deleteWhen=04
#文件保留时间，默认 48 小时
fileReservedTime=168
#Broker 的角色，ASYNC_MASTER=异步复制Master，SYNC_MASTER=同步双写Master，SLAVE=slave节点
brokerRole=ASYNC_MASTER
#刷盘方式，ASYNC_FLUSH=异步刷盘，SYNC_FLUSH=同步刷盘
flushDiskType=SYNC_FLUSH
#Broker 对外服务的监听端口
listenPort=11912
#nameServer地址，这里nameserver是单台，如果nameserver是多台集群的话，就用分号分割（即namesrvAddr=ip1:port1;ip2:port2;ip3:port3）
namesrvAddr=192.168.139.156:9876;192.168.139.156:9877
#每个topic对应队列的数量，默认为4，实际应参考consumer实例的数量，值过小不利于consumer负载均衡
defaultTopicQueueNums=8
#是否允许 Broker 自动创建Topic，生产建议关闭
autoCreateTopicEnable=true
#是否允许 Broker 自动创建订阅组，生产建议关闭
autoCreateSubscriptionGroup=true
#设置BrokerIP
brokerIP1=192.168.139.156

broker-a-s.conf

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#所属集群名字
brokerClusterName=rocketmq-cluster
#broker名字，注意此处不同的配置文件填写的不一样  例如：在a.properties 文件中写 broker-a  在b.properties 文件中写 broker-b
brokerName=broker-a
#0 表示 Master，>0 表示 Slave
brokerId=1
#删除文件时间点，默认凌晨 4点
deleteWhen=04
#文件保留时间，默认 48 小时
fileReservedTime=168
#Broker 的角色，ASYNC_MASTER=异步复制Master，SYNC_MASTER=同步双写Master，SLAVE=slave节点
brokerRole=SLAVE
#刷盘方式，ASYNC_FLUSH=异步刷盘，SYNC_FLUSH=同步刷盘
flushDiskType=SYNC_FLUSH
#Broker 对外服务的监听端口
listenPort=11013
#nameServer地址，这里nameserver是单台，如果nameserver是多台集群的话，就用分号分割（即namesrvAddr=ip1:port1;ip2:port2;ip3:port3）
namesrvAddr=192.168.139.156:9876;192.168.139.156:9877
#每个topic对应队列的数量，默认为4，实际应参考consumer实例的数量，值过小不利于consumer负载均衡
defaultTopicQueueNums=8
#是否允许 Broker 自动创建Topic，生产建议关闭
autoCreateTopicEnable=true
#是否允许 Broker 自动创建订阅组，生产建议关闭
autoCreateSubscriptionGroup=true
#设置BrokerIP
brokerIP1=192.168.139.156

broker-b-s.conf

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
brokerClusterName=rocketmq-cluster
brokerName=broker-b
#slave
brokerId=1
deleteWhen=04
fileReservedTime=168
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
#Broker 对外服务的监听端口
listenPort=11014
#nameServer地址，这里nameserver是单台，如果nameserver是多台集群的话，就用分号分割（即namesrvAddr=ip1:port1;ip2:port2;ip3:port3）
namesrvAddr=192.168.139.156:9876;192.168.139.156:9877
#每个topic对应队列的数量，默认为4，实际应参考consumer实例的数量，值过小不利于consumer负载均衡
defaultTopicQueueNums=8
#是否允许 Broker 自动创建Topic，生产建议关闭
autoCreateTopicEnable=true
#是否允许 Broker 自动创建订阅组，生产建议关闭
autoCreateSubscriptionGroup=true
#设置BrokerIP
brokerIP1=192.168.139.156

注意如果拷贝出来的文件格式不对请做相应的修改

 解决方法，拷贝的文件格式错乱使用下面命令乎看到文件后面多了^M
[root@bogon bin]# vim -b broker-a.conf

去掉^M 再重新启动
[root@bogon bin]# sed -i ‘s/\r//g’ broker-a.conf

4、拉取镜像

[root@bogon ~]# docker pull foxiswho/rocketmq:4.8.0

5、安装nameserver

#启动 rmqnamesrv-master
docker run -d -v /data/rocketmq/logs-nameserver-m:/home/rocketmq/logs \
--name rmqnamesrv-master \
-e "JAVA_OPT_EXT=-Xms256M -Xmx256M -Xmn128m" \
-p 9876:9876 \
foxiswho/rocketmq:4.8.0 \
sh mqnamesrv

#启动 rmqnamesrv-slave
docker run -d -v /data/rocketmq/logs-nameserver-s:/home/rocketmq/logs\
--name rmqnamesrv-slave \
-e "JAVA_OPT_EXT=-Xms256M -Xmx256M -Xmn128m" \
-p 9877:9877 \
foxiswho/rocketmq:4.8.0 \
sh mqnamesrv

6、安装broker

启动 mq-a-master
docker run -d --name mq-a-master  \
-v /data/rocketmq/logs-a:/home/rocketmq/logs \
-v /data/rocketmq/store-a:/home/rocketmq/store \
-v /data/rocketmq/conf/broker-a.conf:/home/rocketmq/rocketmq-4.8.0/conf/broker.conf \
-e "NAMESRV_ADDR=192.168.139.156:9876;192.168.139.156:9877" \
-e "JAVA_OPT_EXT= -server -Xms128M -Xmx128M -Xmn128m" \
-p 10911:10911 \
foxiswho/rocketmq:4.8.0 \
sh mqbroker -c /home/rocketmq/rocketmq-4.8.0/conf/broker.conf

#启动 mq-b-master
docker run -d --name mq-b-master \
-v /data/rocketmq/logs-b:/home/rocketmq/logs -v /data/rocketmq/store-b:/home/rocketmq/store \
-v /data/rocketmq/conf/broker-b.conf:/home/rocketmq/rocketmq-4.8.0/conf/broker.conf \
-e "NAMESRV_ADDR=192.168.139.156:9876;192.168.139.156:9877" \
-e "JAVA_OPT_EXT= -server -Xms128M -Xmx128M -Xmn128m" \
-p 11912:11912  \
--privileged=true \
foxiswho/rocketmq:4.8.0 \
sh mqbroker -c /home/rocketmq/rocketmq-4.8.0/conf/broker.conf

#启动 mq-a-slave
docker run -d  --name mq-a-slave \
-v /data/rocketmq/logs-a-s:/home/rocketmq/logs -v /data/rocketmq/store-a-s:/home/rocketmq/store \
-v /data/rocketmq/conf/broker-a-s.conf:/home/rocketmq/rocketmq-4.8.0/conf/broker.conf \
-e "NAMESRV_ADDR=192.168.139.156:9876;192.168.139.156:9877" \
-e "JAVA_OPT_EXT= -server -Xms128M -Xmx128M -Xmn128m" \
-p  11013:11013 \
foxiswho/rocketmq:4.8.0 \
sh mqbroker -c /home/rocketmq/rocketmq-4.8.0/conf/broker.conf

#启动 mq-b-slave
docker run -d --name mq-b-slave \
-v /data/rocketmq/logs-b-s:/home/rocketmq/logs -v /data/rocketmq/store-b-s:/home/rocketmq/store \
-v /data/rocketmq/conf/broker-b-s.conf:/home/rocketmq/rocketmq-4.8.0/conf/broker.conf \
-e "NAMESRV_ADDR=192.168.139.156:9876;192.168.139.156:9877" \
-e "JAVA_OPT_EXT= -server -Xms128M -Xmx128M -Xmn128m" \
-p 11014:11014  \
foxiswho/rocketmq:4.8.0 \
sh mqbroker -c /home/rocketmq/rocketmq-4.8.0/conf/broker.conf

 注意：配置文件写的端口要和启动参数中的端口号一致！！！

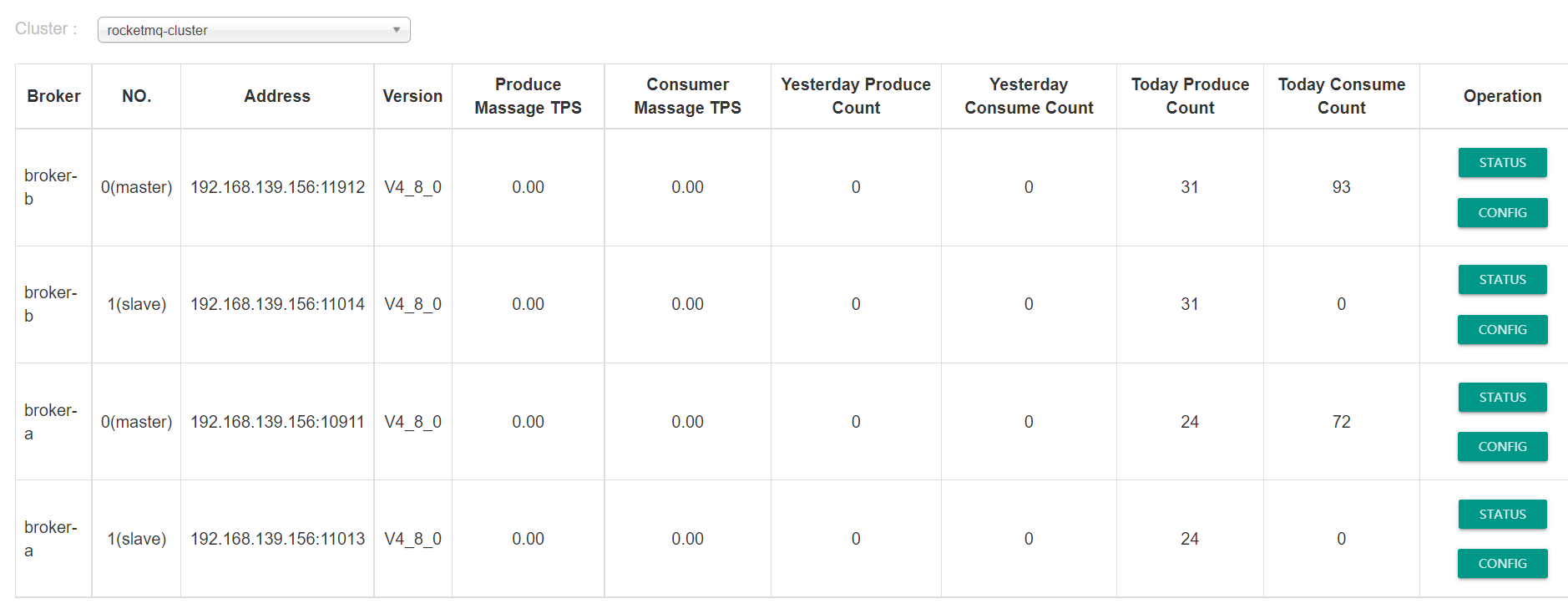

7、验证

Docker安装rocketMQ集群之挂载方式安装

 搭建成功，有不对的地方请大神不吝赐教。

参考：Docker Hub
