K8s部署springboot

小半 • 2022年5月25日下午1:10 • 后端开发 • 阅读 282

1 Docker部署SpringBoot

1.1 部署

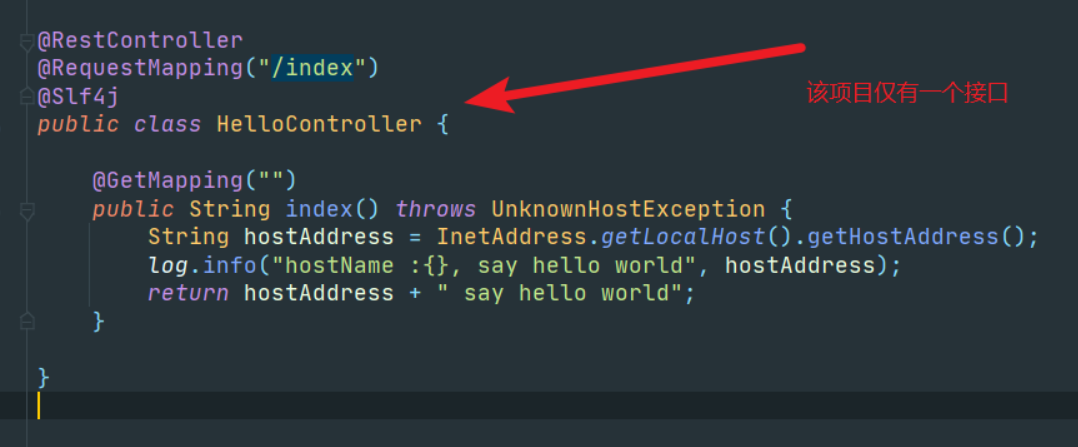

(1) springboot项目概述

(2) 打成jar包

(3) 上传至Docker服务器，制作Dockerfile

FROM java:8
ADD springboot-web-1.0-SNAPSHOT.jar  app.jar
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
RUN echo "Asia/Shanghai" > /etc/timezone
RUN bash -c 'touch /app.jar'
EXPOSE 9000
ENTRYPOINT ["java","-jar","/app.jar"]

(4) 制作镜像

docker build -f Dockerfile -t 192.168.38.100/library/springboot:v1.0 .

(5) 运行容器

docker run -d -p 9000:9000 --name springboot  192.168.38.100/library/springboot:v1.0

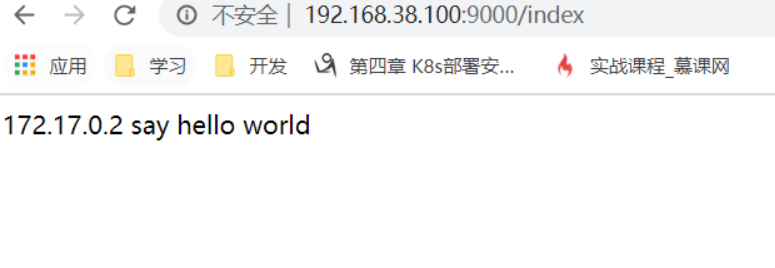

(6) 访问

1.2 缺点

(1) 如果当前springboot容器挂了或Dokcer服务器挂了当前项目无法访问。
(2) 如果把当前项目部署到多台Docker服务器上，重复步骤太多，又要手动实现负载均衡。

2 K8s 部署SpringBoot

2.1 环境概述

192.168.38.50 master
192.168.38.51 node1
192.168.38.52 node2
192.168.38.100 harbor/nfs(数据持久卷,搭建过程略)

2.2 nfs-springboot-pv.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: nfs-springboot-pv
spec:
  capacity:
    storage: 5Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: "/usr/local/kubernetes/volumes/logs/"
    server: 192.168.38.100
    readOnly: false

#创建pv
kubectl apply -f nfs-springboot-pv.yaml
#查看
kubectl get pv

2.3 springboot-pvc.yaml

vim springboot-pvc.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: nfs-pvc-springboot
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 5Gi

 kubectl apply -f springboot-pvc.yaml

2.4 springboot-deployment.yaml

vim springboot-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: springboot
  name: springboot
spec:
  replicas: 1
  selector:
    matchLabels:
      app: springboot
  template:
    metadata:
      labels:
        app: springboot
    spec:
      containers:
        - name: springboot
          image: 192.168.38.100/library/springboot:v1.0
          imagePullPolicy: IfNotPresent
          volumeMounts:
            - mountPath: /logs
              name: springboot-volumes
      volumes:
        - name: springboot-volumes
          persistentVolumeClaim:
            claimName: nfs-pvc-springboot

---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: springboot
  name: springboot
spec:
  ports:
    - port: 9000
      protocol: TCP
      targetPort: 9000
  selector:
    app: springboot
  type: ClusterIP

---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: springboot
spec:
  rules:
    - host: rosh.springboot.com
      http:
        paths:
          - backend:
              serviceName: springboot
              servicePort: 9000

kubectl apply -f springboot-deployment.yaml

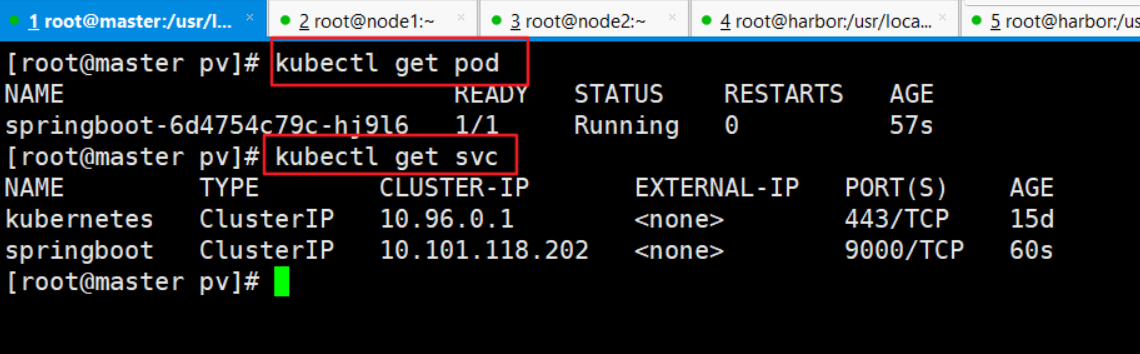

#查看pod，svc
kubectl get pod
kubectl get svc

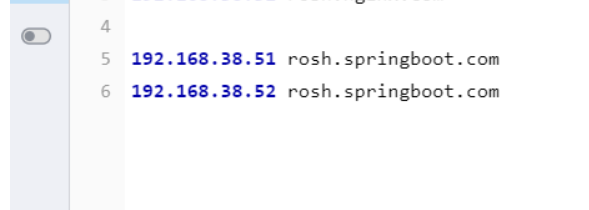

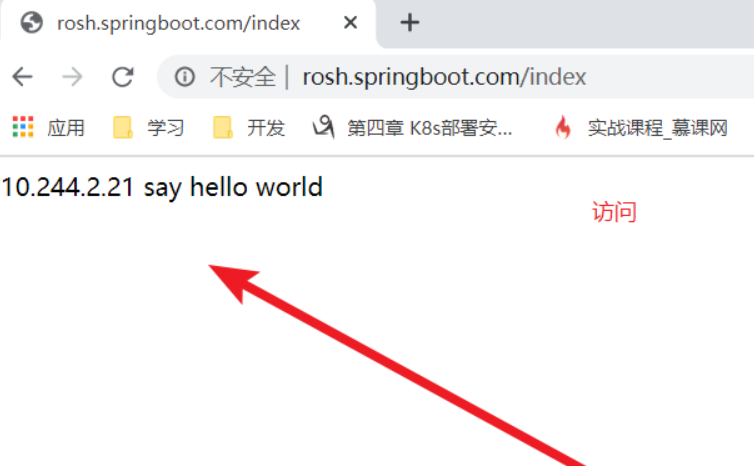

2.5 通过ingress访问

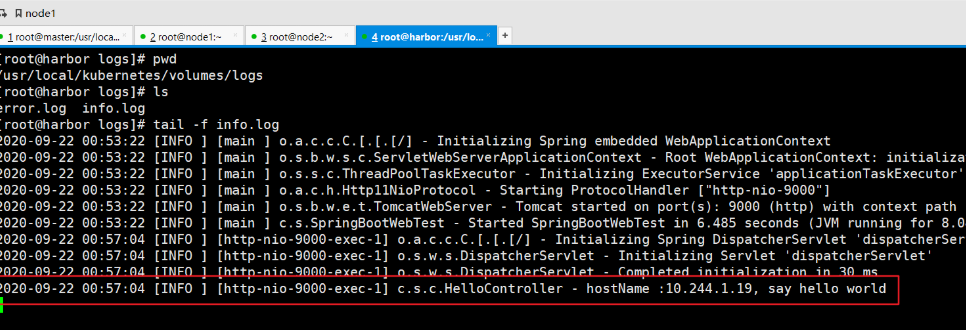

查看nfs日志挂载

3 实验

3.1 当部署服务器挂了

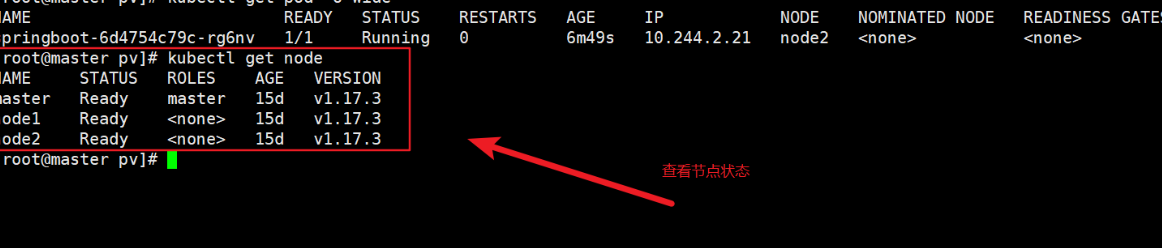

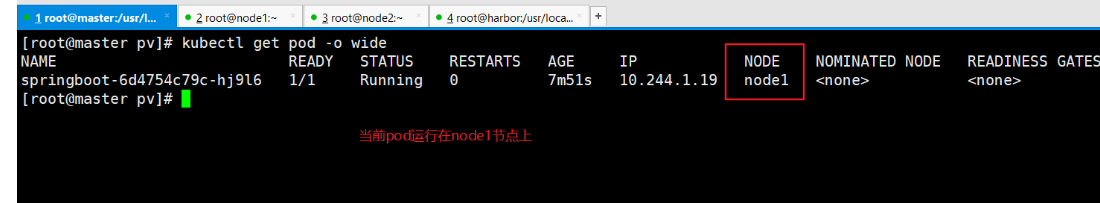

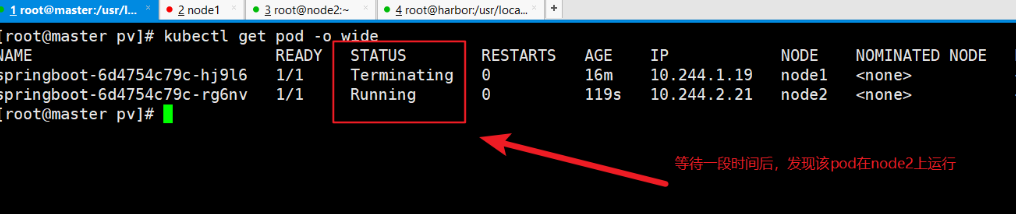

(1) 查看运行节点

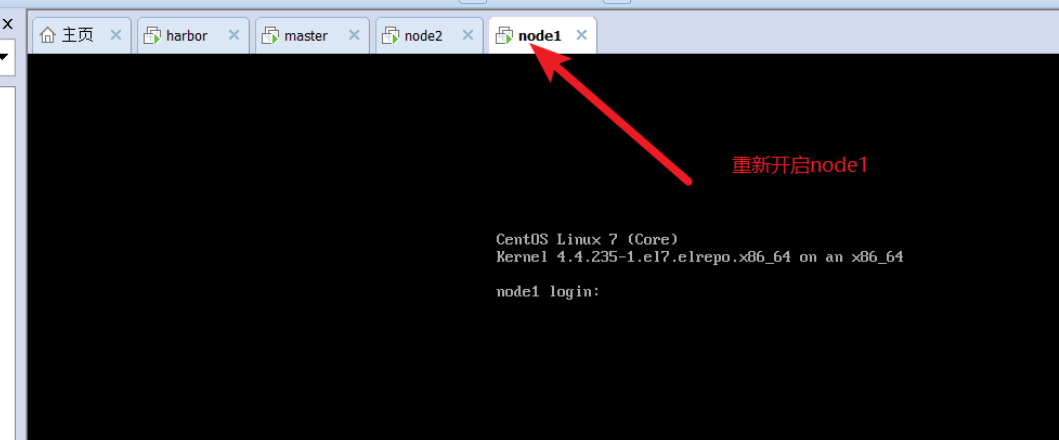

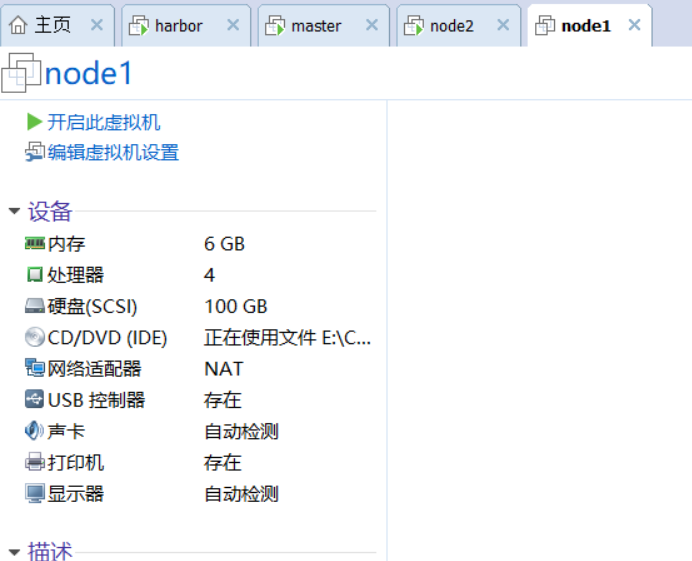

(2) 关闭node1节点

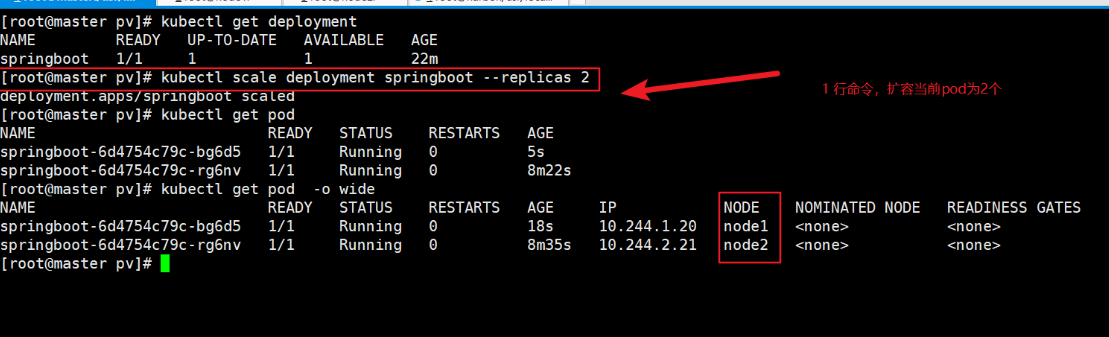

3.2 动态扩容

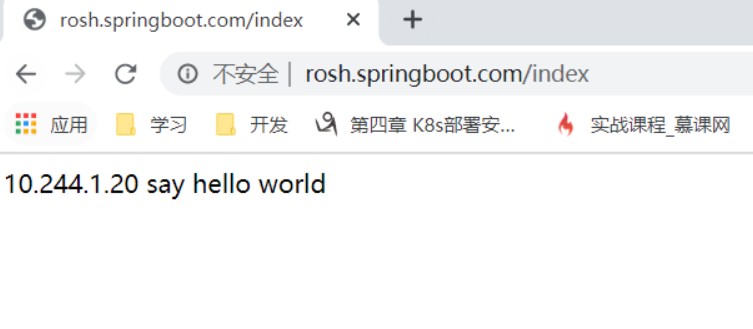

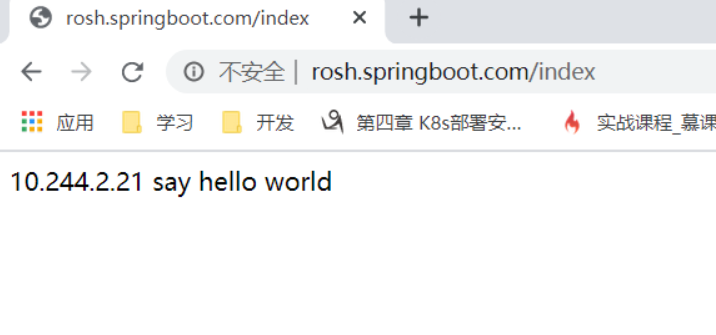

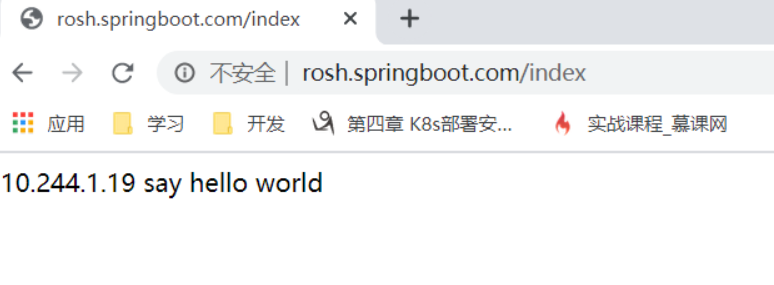

访问时发现已经是负载均衡了：

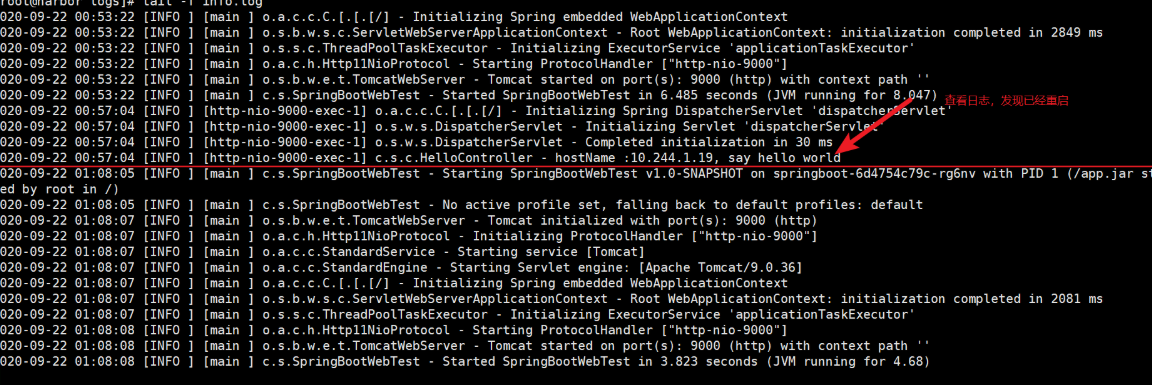

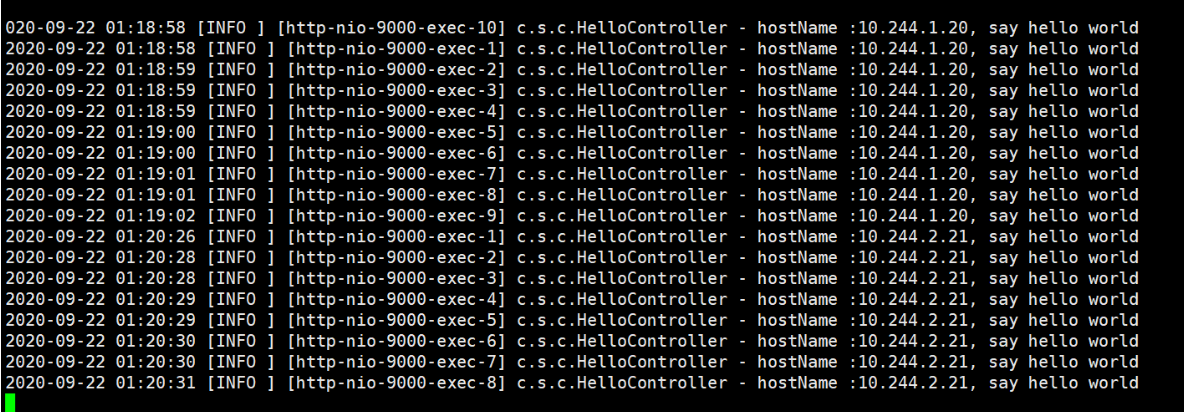

多访问几次查看挂载日志：
