装饰器模式-Mybatis教你如何玩

导读:本篇文章讲解 装饰器模式-Mybatis教你如何玩,希望对大家有帮助,欢迎收藏,转发!站点地址:www.bmabk.com

装饰器模式(Decorator Pattern)允许向一个现有的对象添加新的功能,同时又不改变其结构。这种类型的设计模式属于结构型模式,它是作为现有的类的一个包装。简单说就是对同一接口添加新功能时,需要新增一个类,被改造的接口定义为delete(委托)。

mybatis cache装饰器模式的实现

源码学习中,以mybatis中的二级缓存Cache为推荐。在定义缓存Cache接口,实现各类缓存操作。Cache源码如下:

public interface Cache {

  String getId();

  void putObject(Object key, Object value);

  Object getObject(Object key);

  Object removeObject(Object key);

  void clear();

  int getSize();

  ReadWriteLock getReadWriteLock();
}
PerpetualCache,基于HashMap实现了内存的缓存操作。
LruCache,基于LRU策略删除缓存的实现类。
FifoCache,缓存基于FIFO先进先出的策略获取缓存的实现类。
LoggingCache,为日志统一添加日志的实现类。

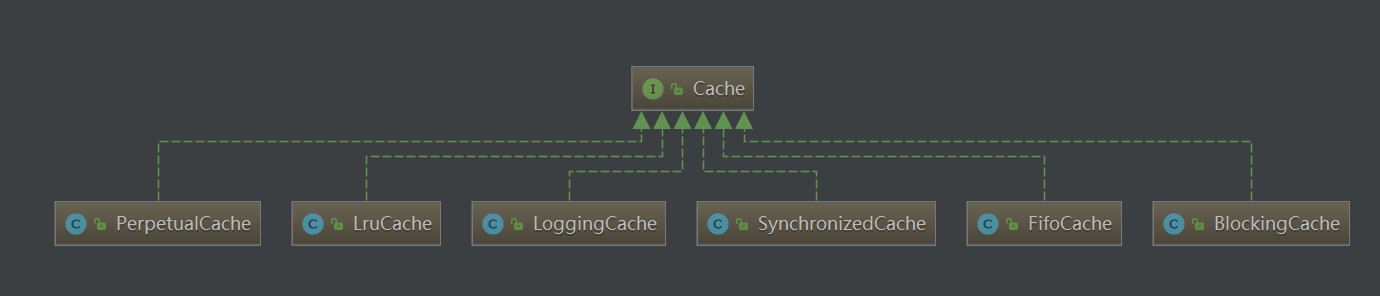

cache类结构图如下:

装饰器模式-Mybatis教你如何玩

其基本的实现,就是基于HashMap实现的缓存,实现类为PerpetualCache,代码如下:

public class PerpetualCache implements Cache {

  private final String id;

  private Map<Object, Object> cache = new HashMap<>();

  public PerpetualCache(String id) {
    this.id = id;
  }
   ......
}

FifoCache实现装饰模式为例,以Deque双向链表实现缓存的先进先出测试,定义Cache delegate委托属性,源码如图:

public class FifoCache implements Cache {

   /**
     * 委托的缓存接口
     */
  private final Cache delegate;
  private final Deque<Object> keyList;
  private int size;

  public FifoCache(Cache delegate) {
    this.delegate = delegate;
    this.keyList = new LinkedList<>();
    this.size = 1024;
  }

    ......

}



计价功能的装饰器实现

在实际开发中,以计价功能为例,在根据价格列表计算出基础的支付价格,业务场景中,会添加根据拥有的优惠券,积分,vip会员身份优惠部分价格。定义计价接口PriceCalculation计算价格,接口代码如下:

public interface PriceCalculation {

    /**
     * 价格计算
     *
     * @param orderPriceDto 计价订单dto
     * @return
     */
    CalculatedPrice calculate(OrderPriceDto orderPriceDto);
}



DefaultPriceCalculator,根据价格列表计算价格。
PriceWithCouponCalculator,使用优惠的计价实现类。
PriceWithScoreCalculator,使用积分的计价实现类。
PriceWithVipCalculator,使用vip会员的计价实现类。

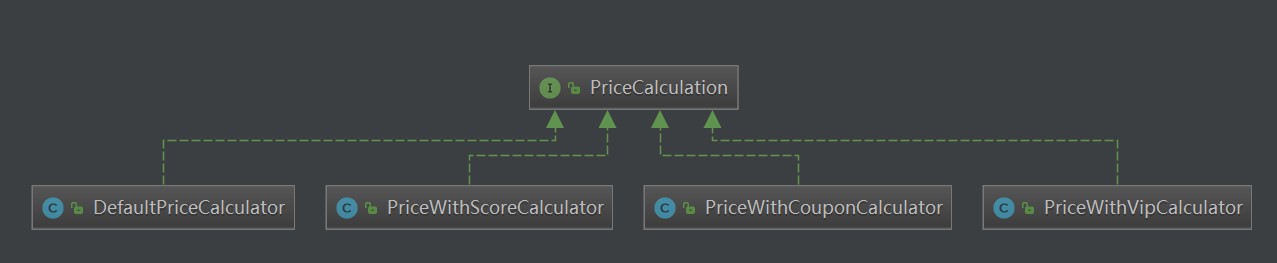

计价类结构图如下:

装饰器模式-Mybatis教你如何玩

根据价格计算价格的实现类为DefaultPriceCalculator,代码如下:

public class DefaultPriceCalculator implements PriceCalculation {

    /**
     * 需要计算的价格列表
     */
    private final List<PriceBo> priceList;

    public DefaultPriceCalculator(List<PriceBo> priceList) {
        this.priceList = priceList;
    }

    @Override
    public CalculatedPrice calculate(OrderPriceDto orderPriceDto) {

        ......
    }
}

使用装饰器模式的价格,例如,使用优惠的计价实现类PriceWithCouponCalculator为例。包含使用的优惠券列表coupons,委托的计价接口PriceCalculation delegate,代码如下:

public class PriceWithCouponCalculator implements PriceCalculation {

    /**
     * 优惠券过滤Pipeline
     */
    private final CouponFilterPipeline couponFilterPipeline;

    /**
     * 使用的优惠券
     */
    private final List<CouponBo> coupons;

    /**
     * 委托的计价器
     */
    private final PriceCalculation delegate;

    public PriceWithCouponCalculator(CouponFilterPipeline couponFilterPipeline, List<CouponBo> coupons, PriceCalculation delegate) {
        this.couponFilterPipeline = couponFilterPipeline;
        this.coupons = coupons;
        this.delegate = delegate;
    }

    @Override
    public CalculatedPrice calculate(OrderPriceDto orderPriceDto) {

        // TODO 验证参数  couponBo,delegate 必须校验

        // 原始的计算价格
        CalculatedPrice originalCalculatedPrice = delegate.calculate(orderPriceDto);
        return doCalculateWithCoupon(originalCalculatedPrice, matchedCoupons);
    }
}
