花生壳配置代理域名访问内网API服务

1、Nginx配置

server {
	listen        80;
	server_name  localhost;
	root   "D:/phpStudy/WWW";
	location / {
		index index.php index.html;
		error_page 400 /error/400.html;
		error_page 403 /error/403.html;
		error_page 404 /error/404.html;
		error_page 500 /error/500.html;
		error_page 501 /error/501.html;
		error_page 502 /error/502.html;
		error_page 503 /error/503.html;
		error_page 504 /error/504.html;
		error_page 505 /error/505.html;
		error_page 506 /error/506.html;
		error_page 507 /error/507.html;
		error_page 509 /error/509.html;
		error_page 510 /error/510.html;
		autoindex  off;
	}
	location ~ \.php(.*)$ {
		fastcgi_pass   127.0.0.1:9000;
		fastcgi_index  index.php;
		fastcgi_split_path_info  ^((?U).+\.php)(/?.+)$;
		fastcgi_param  SCRIPT_FILENAME  $document_root$fastcgi_script_name;
		fastcgi_param  PATH_INFO  $fastcgi_path_info;
		fastcgi_param  PATH_TRANSLATED  $document_root$fastcgi_path_info;
		include        fastcgi_params;
	}


	# common-api官网服务接口
	location /common-api {
		rewrite  ^.+common-api/?(.*)$ /$1 break;
		proxy_pass  http://192.168.80.200:18890;    #node api server 即需要代理的IP地址
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}

	# portal-api官网服务接口
	location /portal-api {
		rewrite  ^.+portal-api/?(.*)$ /$1 break;
		proxy_pass  http://192.168.80.200:18888;    #node api server 即需要代理的IP地址
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}

	# workbench-api工作台服务接口
	location /workbench-api {
		rewrite  ^.+workbench-api/?(.*)$ /$1 break;
		proxy_pass  http://192.168.80.200:19988;    #node api server 即需要代理的IP地址
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}

	# manager-api管理后台服务接口
	location /manager-api {
		rewrite  ^.+manager-api/?(.*)$ /$1 break;
		proxy_pass  http://192.168.80.200:18887;    #node api server 即需要代理的IP地址
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}

	# 设计器集成服务接口
	location /inject-designer-api {
		rewrite  ^.+inject-designer-api/?(.*)$ /$1 break;
		#proxy_pass  http://192.168.80.200:19977;    #node api server 即需要代理的IP地址
		#proxy_pass  http://192.168.80.186:9977;    # 秀玲机子上的
		proxy_pass  http://192.168.80.203:9977;    # 志明机子上的
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}

	# ERP集成服务接口
	location /inject-erp-api {
		rewrite  ^.+inject-erp-api/?(.*)$ /$1 break;
		proxy_pass  http://192.168.80.200:19966;    #node api server 即需要代理的IP地址
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}

	# 余秀玲：workbench-api工作台服务接口
	location /yxl-workbench-api {
		rewrite  ^.+yxl-workbench-api/?(.*)$ /$1 break;
		proxy_pass  http://192.168.80.186:9988;    #node api server 即需要代理的IP地址
		proxy_redirect off;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	}
}

2、花生壳配置

下载、安装花生壳：https://hsk.oray.com/download/

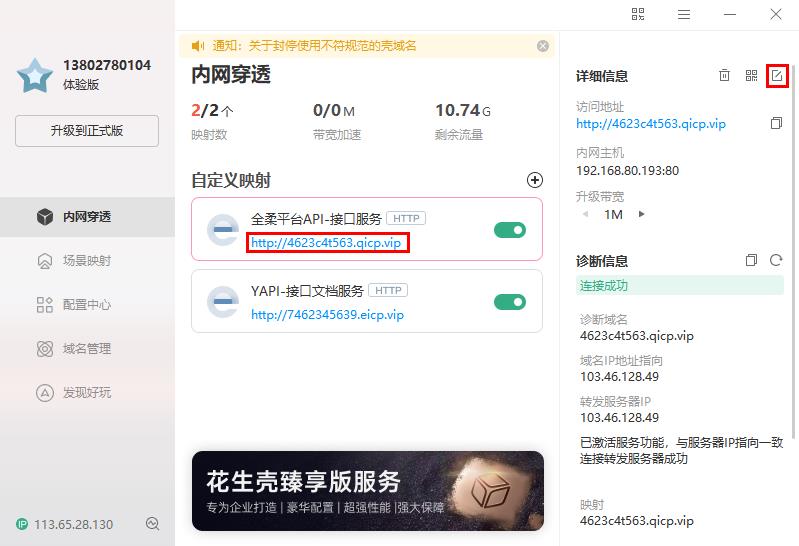

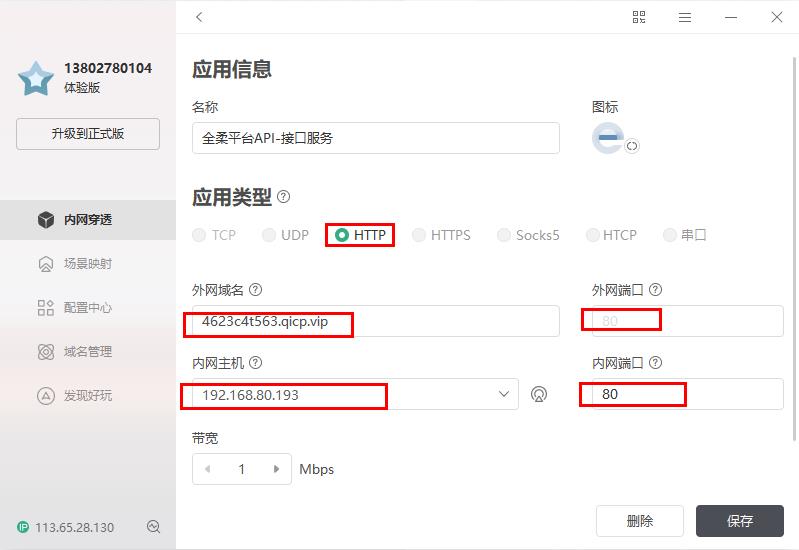

安装完毕启动花生壳，配置如下：
